Radio Mobile Signal Multifunctional Transmission Steel Tower High Standard

  • Radio Mobile Signal Multifunctional Transmission Steel Tower High Standard
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5653G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Radio Mobile Signal Multifunctional Transmission Steel Tower Material Steel Q355B(GB/T 1591)
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Steel Structure HDG Lattice Tower
Design Of Pole Against Earthquake Of 8 Grade Tension Strength (Mpa) 360~510
Design Wind Speed 80/220kph Connection Type Nuts & Bolts
Tower Type 3 Legs 4 Legs Angular / Tubular Shipping Port Huangpu Or Yantian/Shekou
High Light

Multifunctional Transmission Steel Tower

,

Radio Mobile Signal Transmission Steel Tower

,

Q345 Transmission Steel Tower
Leave a Message
Product Description

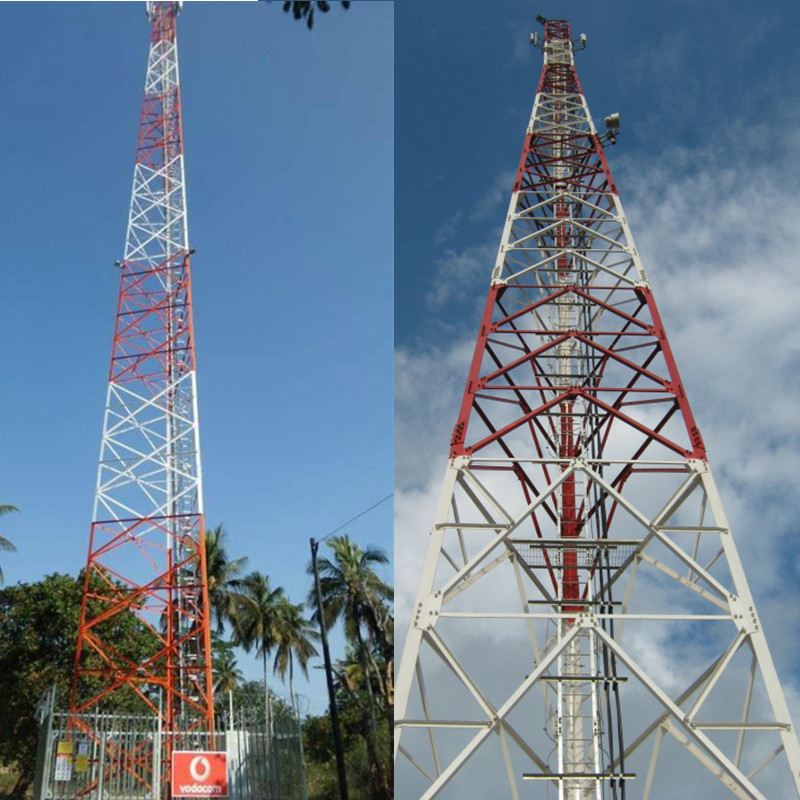

Radio Mobile Signal Multifunctional Transmission Steel Tower With High Standard



The communication tower belongs to a type of signal transmission tower, also called a signal transmission tower or a signal tower. The main function supports signal transmission and supports the signal transmitting antenna. Uses mobile/unicom/traffic satellite positioning system (GPS) and other communication departments. Our daily life is inseparable from the communication tower, so what is the installation specification of the communication tower? Let’s talk about it in detail. Communication tower installation specification: The tower design communication tower has passed the trial. The tower design communication tower has been accepted. The company is fully equipped with assembly records. When the communication tower is installed, the tools must be complete, and the engineers and field operators need to be in place. Before the communication tower is installed, the supervisors shall examine and approve the construction organization design or construction plan and safety measures of the underwriting unit, and the plans that do not meet the requirements shall be re-programmed or revised.



When installing the communication tower, it is necessary to ensure the stability of the structure and the permanent non-deformation of the material.





Specification of 50m telecom Tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Steel Grade & Steel Elements:

  1. All structural angle sections, plates and other sections shall comply with relevant British Standards.
  2. Sections used in the fabrication of members shall be cut from single piece of material (no welded pieces).
  3. Grades of the steel to comply with BS EN 10025 Grade 275 JR/355 JR or equivalent ASTM
  4. Materials used in production of steel work shall be provided free from blisters, mill scale, laminations and other defects.
  5. The minimum yield and tensile strength of steel to be used for manufacture of steel work will be in accordance with the design calculations.
  6. Tower legs to be high grade steel and manufacturer shall identify clearly the grades of the steel in writing to the Employer.
  7. The necessary holes needed for the ground connection on the tower legs close to the base plates must be designed & drilled prior to galvanizing.
  8. Member usage allowed is maximum 85% in comp & Tension
  9. Climatic conditions should be considered while designing the Self-supporting Telecommunication Towers .
