25m Steel Monopole Communication Tower Q235B Q345B Material

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Model Number GX-1523
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Name 25m Monopole Communication Tower China Factory
Steel Structure Steel Monopole Height 20-100M
Material Q235B Q345B Surface Treatment Hot-dip Galvanization
Galvanization Standard ASTM A123/ ISO 1461 Tension Strength (Mpa) 360~510
Design Wind Speed Up To 250 Km/h Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Life Period More Than 25 Years, It Is According To Installing Environment
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
High Light

SGS Certificated Monopole Communication Tower

,

25m Monopole Tower For Transmission Line

Leave a Message
Product Description

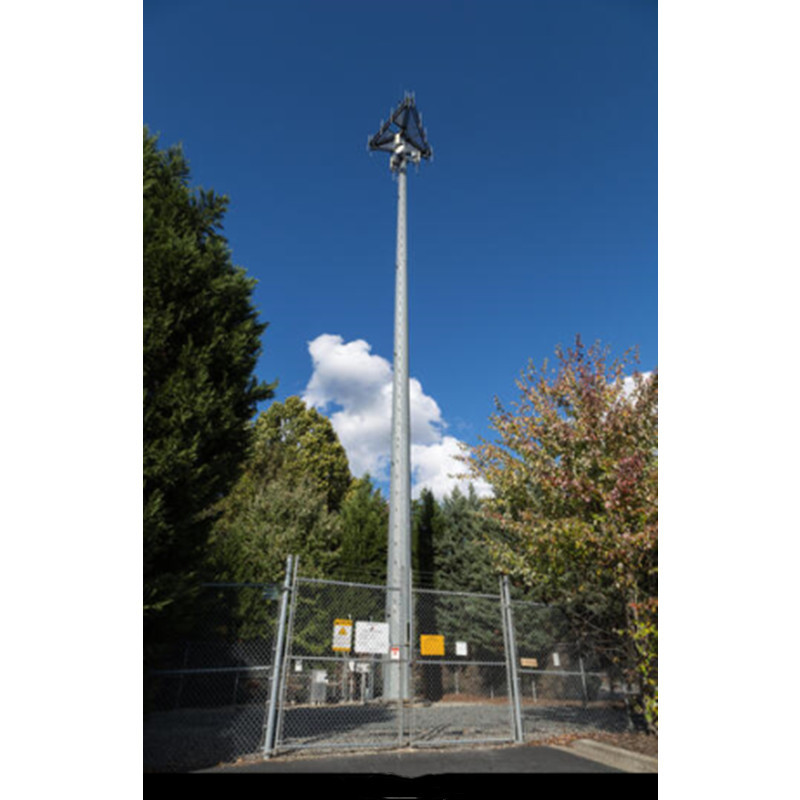

25m Monopole Communication Tower China Factory



Monopole Tower is a kind of tower consisting of an elevated base or pillar.
These small galvanized tube forms offer several savings possibilities for carriers and owners. The company’s speed and savings offer smaller rental areas, lower costs, and decreased build time. Monopole structures, constructed from steel, concrete, and fiberglass and are most freighted on a single trailer to save additional money. The most common poles of tapering steel or slip joints have become, with the other variables being phase tapered or tube segment poles. Multi-sided or smooth poles may be available.

The structures are aesthetically pleasant and well-integrated into the environment and require minimal installation space. Inside the transmission line, the coaxial cable not exposed to loads caused by wear and tire or wind. In general, the only visible additions are climbing accessories and antennas. Rotation of Azimuth into antenna arrays and platforms.

Project Completion

Monopole towers have the advantage of grating towers when it comes to construction and assembly times but reconcile the structural weight and base sizes.

Factors such as land and access requirements that might seem insignificant during the design process. They can have substantial impacts on construction costs and plan later.

For that 500 kV transmission line, the design and installation of monopoly systems was an incredible undertaking. The diligent planning and preparation of many people resulted in the successful completion of the project.

From the first designers to complete geometries to the crane operators to set up the structures, to the builders to torch the bolts on the flange joints, the task of each one was necessary and contributed to the success of the project.



Specification of Monopole Cell Phone Tower:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.
