| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GX-1519 |
| Minimum Order Quantity | 1 set |
| Price | USD1880-19990 per set |
| Packaging Details | plastic bubble sheets |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Name | Steel Galvanized Tubular Monopole Power Transmission Tower | Galvanization Standard | ASTM A123/ ISO 1461 |
|---|---|---|---|
| Height | 20-90M | Steel Structure | Monopole Tower |
| Surface Treatment | Hot-dip Galvanization | Tension Strength (Mpa) | 360~510 |
| Design Wind Speed | Up To 250 Km/h | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
| Welding Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | Grade Of Bolts And Nuts | Grade 4.8, 6.8, 8.8 |
| Life Period | More Than 25 Years, It Is According To Installing Environment | ||
| High Light | CE Certificate Monopole Transmission Tower,OEM Monopole Transmission Line Tower,Q420B Material Monopole Telecom Tower |
||

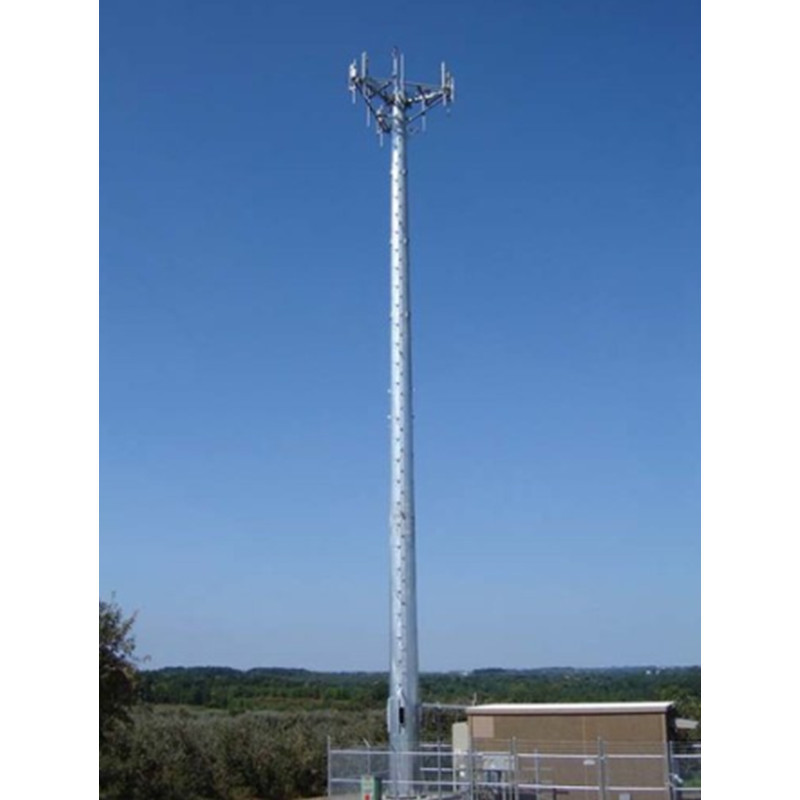

Steel Galvanized Tubular Monopole Power Transmission Tower
Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform.
Specification of Single Monopole Steel Pipe:
| Material | Angle steel plates, flat steel plate, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Pole/Monopole
Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :
