Monopole Antenna Communication Steel Tower 30-35 Meter DIN933

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1507
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Monopole Antenna Communication Steel Tower Material Grade GB Q235, Q345, Q355 Or Specified Grade
Surface Finish Hot Dip Galvanization Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Height 30m To 50m Or Customized Height
Wind Load 0.36-1.0kN/sqm Bolts DIN7990, DIN931, DIN933
Nuts ISO4032, ISO4034 Washers DIN7989, DIN127B, ISO7091
Design Loading As Per Requirement And Specification By Clients Worldwide. Design 1-5 Platforms With Mounting Brackets
High Light

Monopole Antenna Communication Steel Tower

,

DIN933 Communication Steel Tower

,

35 Meter Communication Steel Tower

Leave a Message
Product Description

30 Meter Towers Monopole Antenna Communication Steel Tower




Specification of Monopole Steel Tower:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Monopole Antenna Communication Steel Tower 30-35 Meter DIN933 0

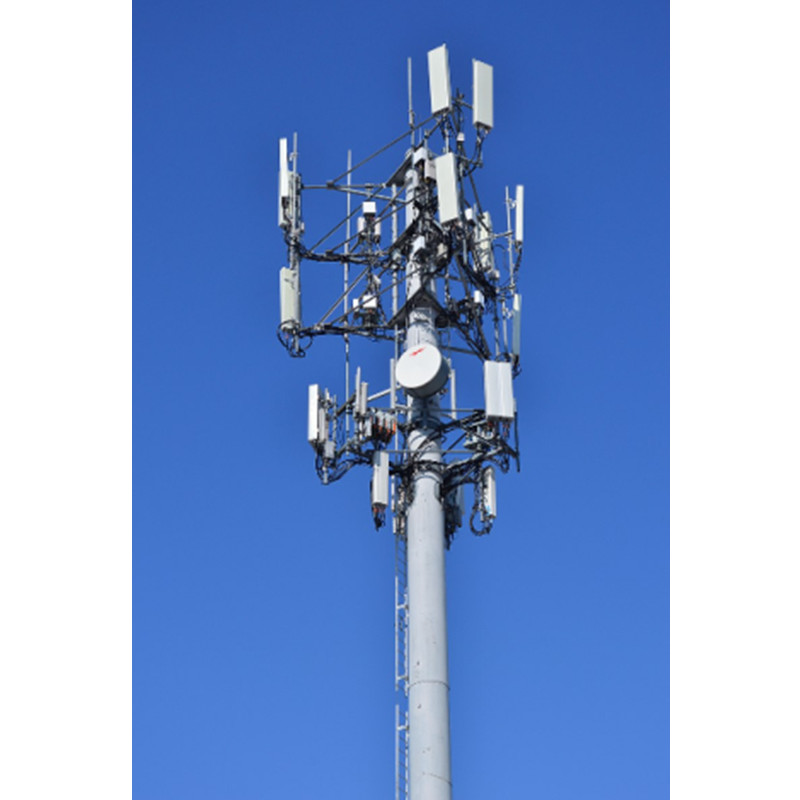

Monopole steel tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.



Steel tower:

What is the Communication lattice tower? Communication Tower Product Description:

Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.



Why Choose Us:

1. You can save plenty of money. (Our products are high-quality, their survice life usually more than 50 years.)
2. You can save lots of time. (We try our best to serve customers and reply within 12 working hours.)
3. You don't have any worry. (We have our own producing and designing team, impeccable after-sales service.)
4. You are wise. (We can give you the most reasonable price without agent or intermediary.
