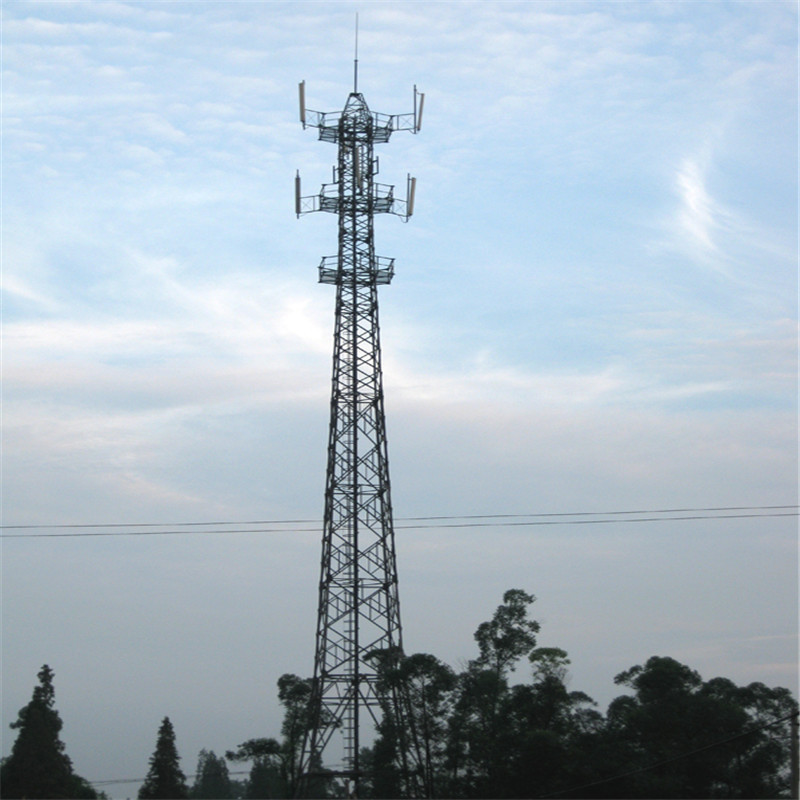

Communication Network Construction Steel Telecom Tower with Platform

  • Communication Network Construction Steel Telecom Tower with Platform
  • Communication Network Construction Steel Telecom Tower with Platform
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-3501
Minimum Order Quantity 1 set
Price USD1998-20000 per set
Packaging Details plastic bubble sheets or cloth package by bundle
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Communication Network Construction Steel Telecom Tower With Platform Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot-dip Galvanized Or Painting Height 20m To 80m Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 3 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm Color Grey Color Coating
Leave a Message
Product Description

Communication Network Construction Steel Telecom Tower with Platform



Feature:

1, Design layout and drawing, set up specifications and sizes.
2, Buy row seamless steel pipes or flat steel plates and folding and welding them to be tubular pipes as well as galvanized steel bolts, nuts, washers and springs.
3, Measure and cut out sizes and holes.
4, Weld necessary parts (such as footing plates, connecting flanges and gussets, antenna mounts, lightning rod, ladder etc.)
5, Polish burrs and welding scars to make all members good surface.
6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.
7, Hot dip galvanization: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry
8, Check quality and start packing.



telecom steel tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Specifications of Tubular Telecommunication Steel Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.
