60m Galvanized Steel Telecom Tower 4 Legged Self - Support Lattice Mast

Place of Origin CHINA
Certification ISO9001
Model Number GXLT-3060
Minimum Order Quantity 1 set
Price USD1.28-USD1.78 per kilogram
Packaging Details bundles
Delivery Time 20-50 days subject order quantity
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Self-support Galvanized Steel Lattice Communications Tower Material High Quality Structural Low Carbon Mild Steel
Steel Grade Q235B, Q355B Or Equivalent ASTM A572, SS400 Etc. Steel Type Angular Steel Plates Or Tubular Steel Tubes Or Pipes
Surface Finish Hot Dip Galvanization Yield Strength 235-355 MPa
Tower Type 3 Legs Triangle Or 4 Legs Square Lattice Tower Tower Configuration Lightning Rod, Sections, Base Plates, Work & Rest Platforms, Ladder Etc.
Delivery Conditions Independent Prefabricated Parts Design Customized To Designs And Drawings
Lifespan 50 Years Applications Telecom, Radio, TV Signal Or Power Transmission
High Light

60m Galvanized Steel Telecom Tower


4 Legged Galvanized Steel Telecom Tower


Self Support Galvanized Steel Telecom Tower

Leave a Message
Product Description

30m-60m Popular 4-legged Self-support Lattice Mast Galvanized Steel Telecom Tower


As a professional manufacturer of all kinds of steel towers and poles, Guangzhou Guangxin Communication Equipment Co., Ltd. was founded in 2009, starting as an OEM and ODM manufactory for CHINA TOWER CORPERATION which is the largest design and supplier of communication towers and other applicable towers in China. After more than 10 years of fast growing and research, we have become one of leading manufacturers of all kinds of steel towers and poles in China. We can produce the steel towers and poles according to customers' designs, drawings and requirements.



Range of Our Products


1, Galvanized steel Telecommunications lattice towers or masts

2, Wind turbine towers, lattice masts and poles

3, Power transmission and distribution line towers and poles

4, Artificial tree or fiberglass grille shroud camouflaged antenna towers

5, Street light poles, roadway and highway lighting columns or posts

6, High mast stadium and sports field lighting towers

7, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames

8, Other steel structures

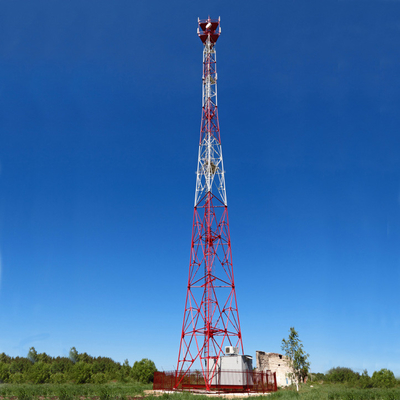

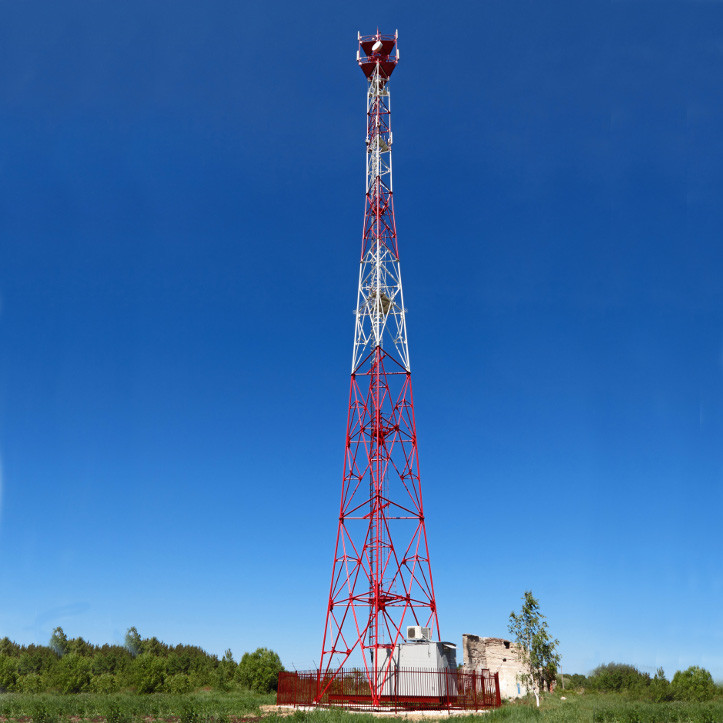

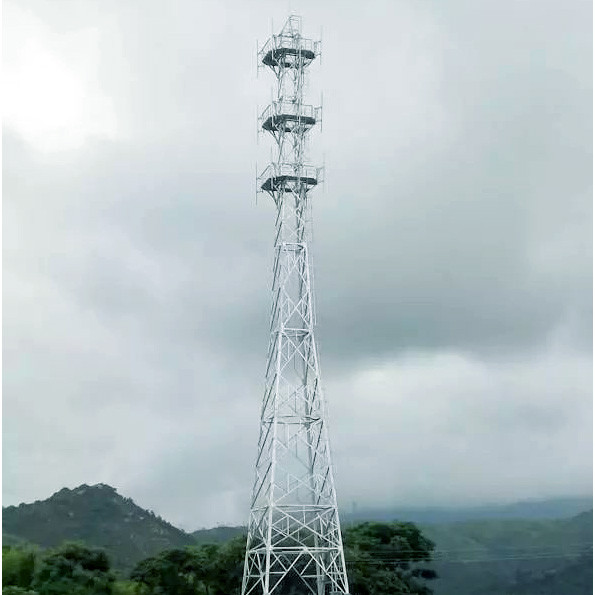

60m Galvanized Steel Telecom Tower 4 Legged Self - Support Lattice Mast 060m Galvanized Steel Telecom Tower 4 Legged Self - Support Lattice Mast 160m Galvanized Steel Telecom Tower 4 Legged Self - Support Lattice Mast 2


Specifications of Telecommunications


Galvanized Steel Communications or Wind Turbine or Power Transmission Tower
1. Material
Weldable Structural Low Carbon Steel Plates or Tubes
2. Grade Main structure Braces
GB/T1591:Q345B GB/T 700:Q235B
ASTM A572 Gr50 ASTM A36
EN10025: S355JR, S355J0,S355J2 EN10025: S235JR, S235J0,S235J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength 470~630 MPa 360~510 MPa
6. Yield strength 355 MPa 235 MPa
7. Elongation (%) 24 20
8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(20°C)---Q235B(S235JR)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
14. Galvanization standard of steel sections ISO 1461 or ASTM A123
15. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153


General Procedures of Erecting Telecommunications Towers


1, Site geologival investigation or survey to clasify terrain category and confirm it meets tower erection requirements

2, Design tower body and foundations

3, Test and specify the tower body and foundation by professional design and calculation software

4, Specify the tower and foundation dimensions and specifications of materials.

5, Prepare lofting and shop drawing of tower sections

6, Manufacture tower members according to the drawings and specifications.

7, Dig holes for the tower foundations and make a cement underlayer on the bottom

8, Make steel cage frames and anchorages for foundations

9, Make wooden molds for constructing concrete foundations

10, Set up grounding net with steel plates or rods around foundations.

11, Pour concrete and construct bottom blocks and pedestals

12, Dry and watering concrete foundations

13, Test the impact strength and make sure it meets the design specifications.

14, Fix tower footings to foundation pedestals and other tower members

15, Assemble tower sections and antenna brackets, ladder, rest and work platforms, lightning rod, grounding plates etc.

16, Set grouding of tower body and foundations, make sure at least 2 feet of tower must be connected with the ground net, lightning rod must be connected with grounding net through at least 2 foundations.

17, Test the straightness or verticality of tower

18, Complete if all specifications are confirmed.


60m Galvanized Steel Telecom Tower 4 Legged Self - Support Lattice Mast 3


Category of Galvanized Steel Towers and Masts for communications:


1, Four legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

2, Three legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

3, Bipod and Tripod: steel tube as main post and angle plates as diagonal supports

4, Mono pole

5, Ground field towers

6, Rooftop towers

7, Artificial palm or pine tree monopole for camouflaged antenna towers

8, Monopole towers with cylindrical fiberglass grille shroud or cover for camouflaged antenna towers.
