Galvanized Steel Telecom Tower Self Support Mast Rapid Deployment Site RDS
| Place of Origin | Guangzhou |
|---|---|
| Certification | ISO9001 |
| Model Number | RDS-004 |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Steel bands or wires by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Guangxin | Product Name | Hot-dip Galvanized Steel Mobile Phone Tower |
|---|---|---|---|
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123, BS729 | Yield Strength (Fy) | 235-355MPa |
| Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements | Tower Type | Tubular Tower, Mono Pole Tower, Angle Towers |
| Design Wind Load | 0.35-1.2KN/M² | Work Platform | Height And Quantity Up To Clients |
| Connection Type | Nuts & Bolts | Service Life | 50 Years |
| High Light | Galvanized Steel Telecom Tower,Self Support Mast Steel Telecom Tower,Rapid Deployment Site Steel Telecom Tower |
||
Product Description
4 Legged Angle Steel Mobile Communication Tower With Rapid Deployment Site (RDS) Foundations
Rapid Deployment Site (RDS) Telecom Tower Galvanized Steel Self-support Mast

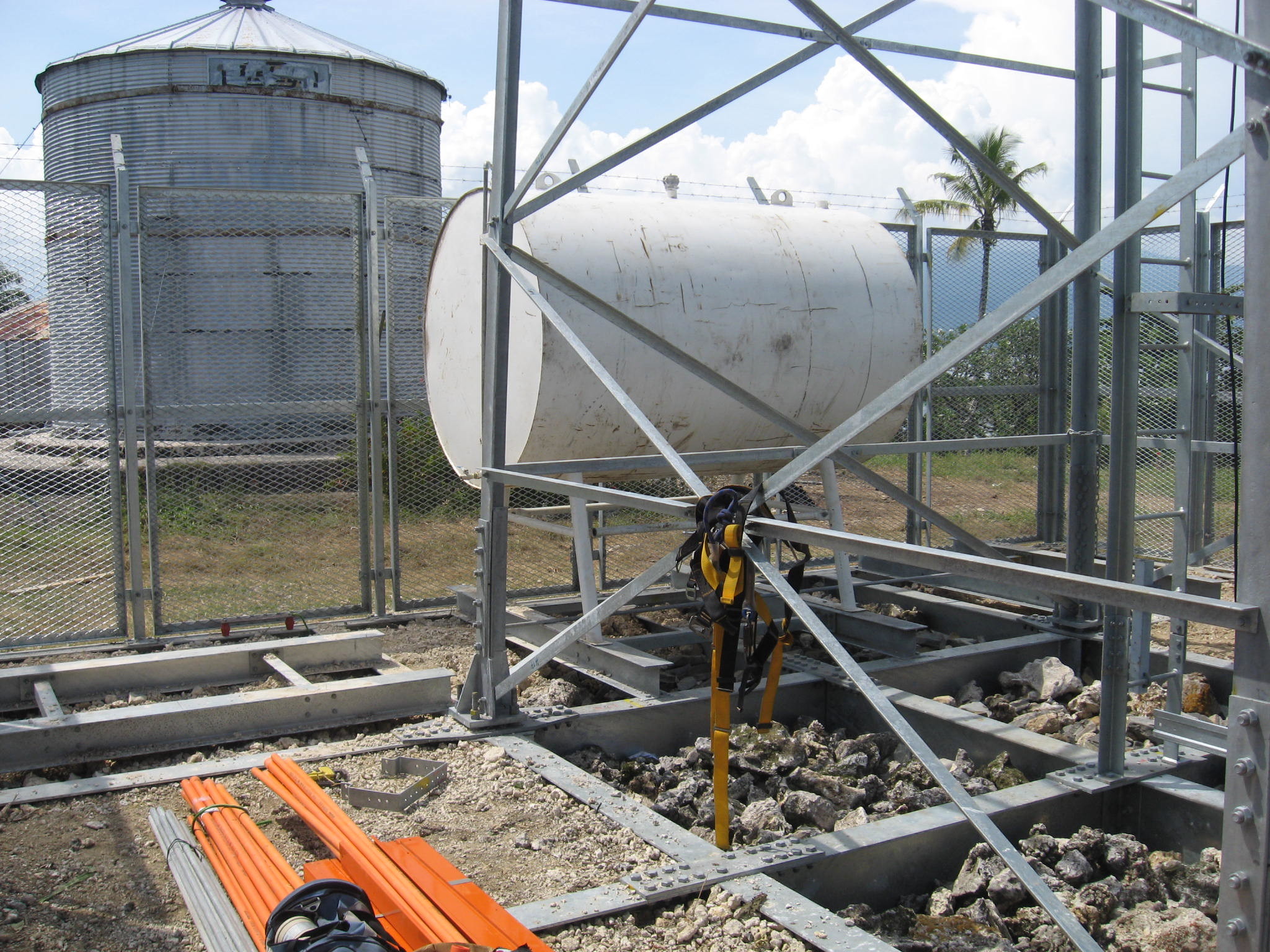

RDS tower is designed for quick foundation construction and tower erection, with a heavy duty steel foundation which is composed of high quality steel blocks and profiles by welding or bolting, it's very easy to erect the tower on site, saving a lot of time for erection and very easy to remove and rebuild the tower.
Self supporting tower usually is 3-leg of 4-leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features of Mobile Communication Tower:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
4. According to the customers’ choice, the ladder can be placed inside or outside.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.

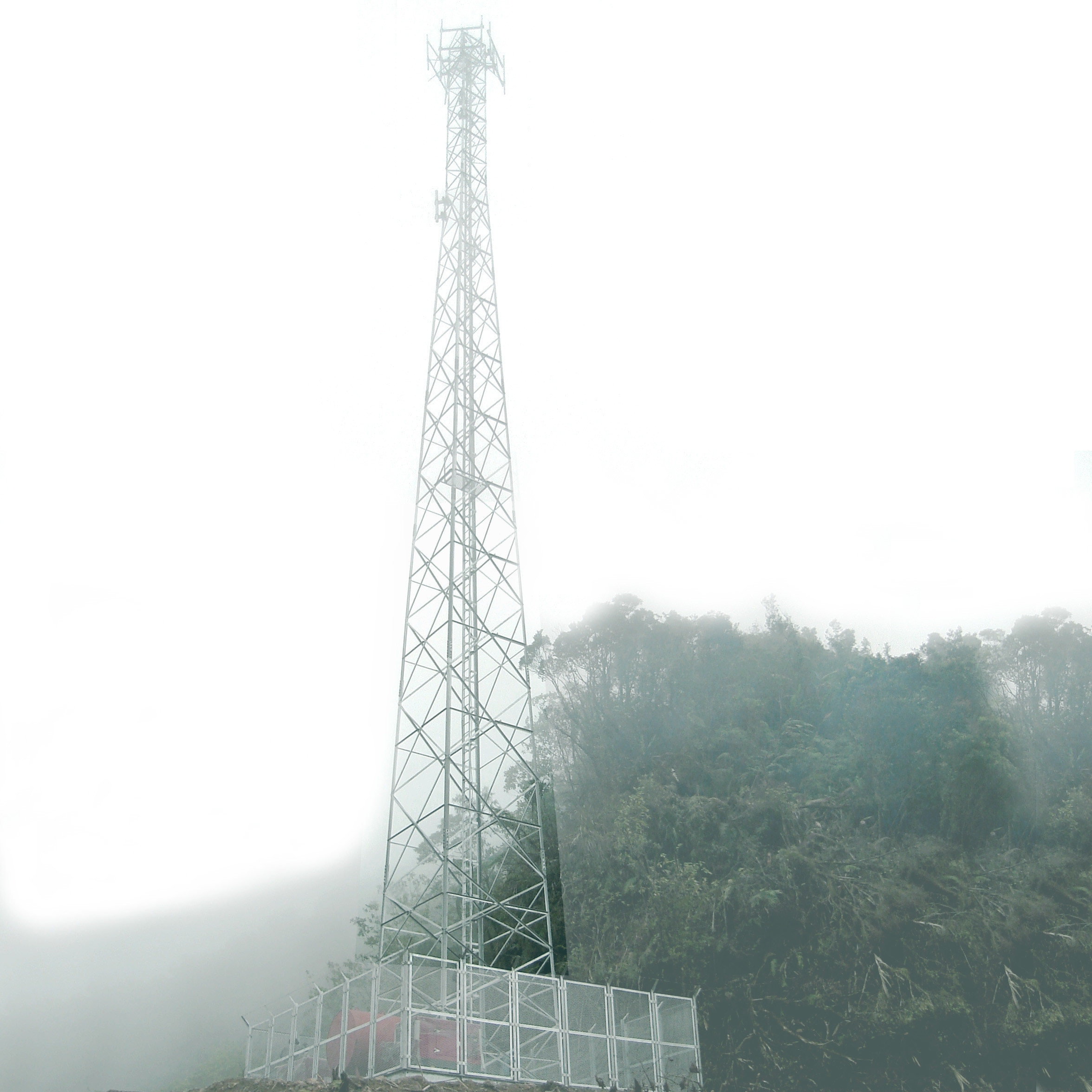

45m radio telecom tower erected in Philippines
Specification of Mobile Communication Tower:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |

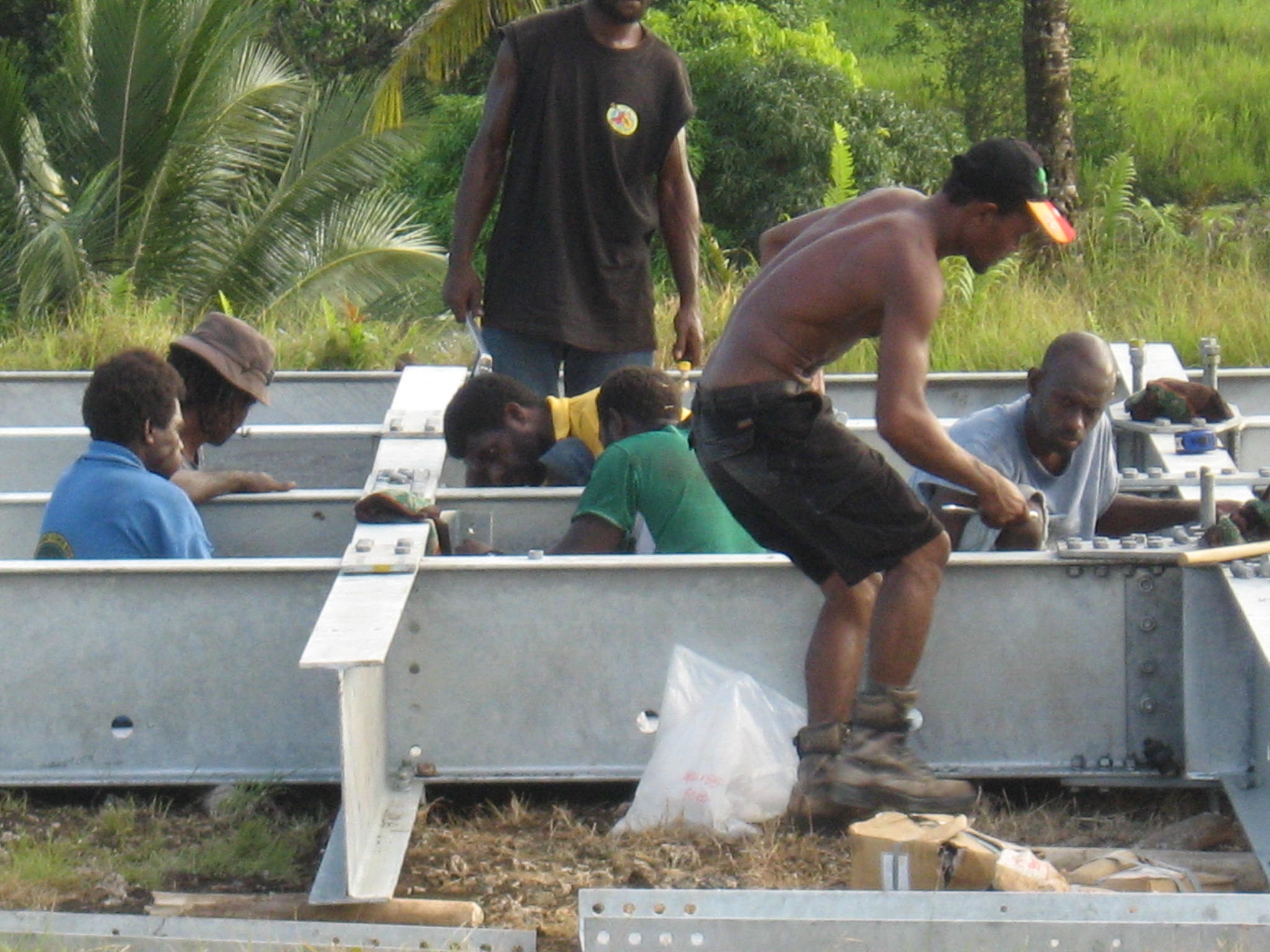

RDS tower erection
Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.
FAQ
1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.
2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.
3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.
