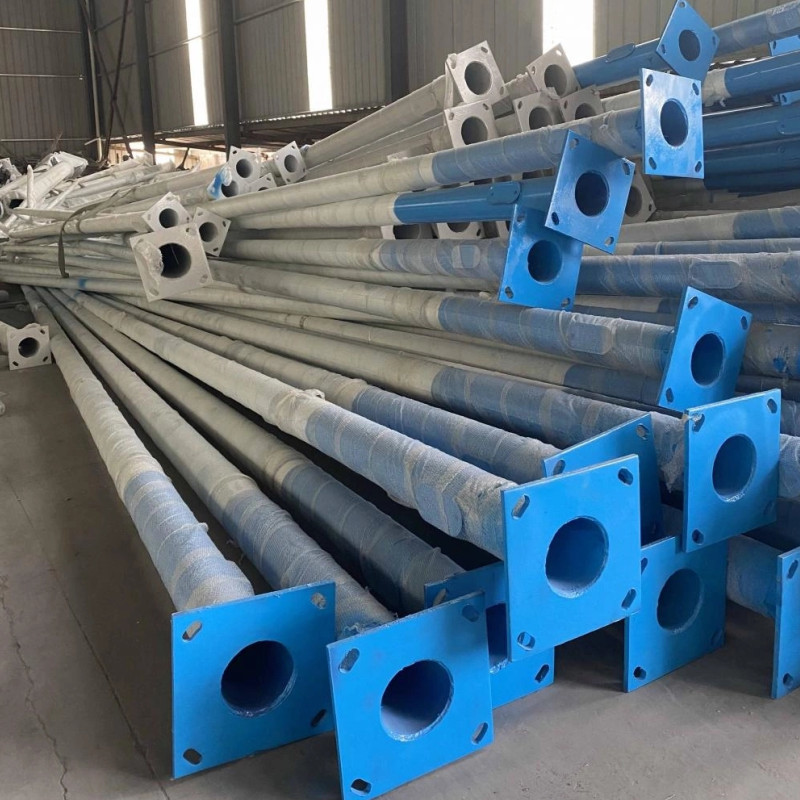

Outside Galvanized Steel Tubular Poles Q235 Material 10m
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GX-1323 |
| Minimum Order Quantity | 100pcs |
| Price | USD40-80 per piece |
| Packaging Details | air bubble sheet package |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Solar Street Light Tubular Steel Poles 4m To 12m | Galvanization Standard | ISO 1461 2009, ASTM A123 |
|---|---|---|---|
| Welding Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | Surface Finish | Hot Dip Galvanization Plus Powder Coating(optional) |
| Color | Grey Color Painting | Applications | Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. |
| Transportation | By Sea To Clients Destination Port | ||
| High Light | Q235 Material Steel Tubular Poles,10m Height Tubular Steel Pole,Galvanized Structural Steel Tubular Poles |
||
Product Description
Outside Galvanized Steel Tubular Poles Q235 Material
Data details of Steel Tubular Poles:
Height: 10m
Thickness: 4mm
Diameter: 80mm/200mm
Material: Steel Q235
Hot-dip galvanizing: 80um
Plastic Spraying Layer: 100um
Flange Plate: 300mm*300*18mm
Lumbar Type Hole: 24mm*50mm
Lamp Arm: 60mm*3mm*1.5m
Solar Panel Support: 20mm*30mm*1.5mm
Specification of Steel Tubular Poles:
| Descriptions | Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole |
| Material | Low carbon weldable structural steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 12m or other specified height |
| Thickness | 4mm to 15mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple straight or curved arms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
Feature of Steel Tubular Poles:
1.Design standard:AASHTO standard
2.Mast material:ASTM A572 GR65/Q345/Q235/GR50
3.Mast structure: 8/12/16/20 sided/Round conical
4.Mast assembly: no welding on site/slip joint
5.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating
6.Mounting Height: 1-16M
7.Brackets:Single or double brackets are in the shape and dimension as per customers requirement
8.Welding:Welding confirms with international welding standard of CWB
9.Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
10.Ground mounted:The length buried underground as per customers requirement
11.Galvanizing Or Powder Coating:Hot dip galvanization with thickness of 80-100µm average
12.customized service or design service by Offered
