55m Telecommunication Steel Tube Lattice Tower 4 Legs Self Supporting

  • 55m Telecommunication Steel Tube Lattice Tower 4 Legs Self Supporting
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5618G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 55m Telecommunication Steel Tube Lattice Tower Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Design Loading As Per Requirement And Specification By Clients Worldwide.
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Supply Mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Tension Strength (Mpa) 360~510
High Light

Telecommunication Steel Tube Lattice Tower

,

55m Steel Tube Lattice Tower

,

4 Legs Self Supporting Lattice Tower
Leave a Message
Product Description

55m Telecommunication Steel Tube Lattice Tower



55m Telecommunication Steel Tube Lattice Tower

Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

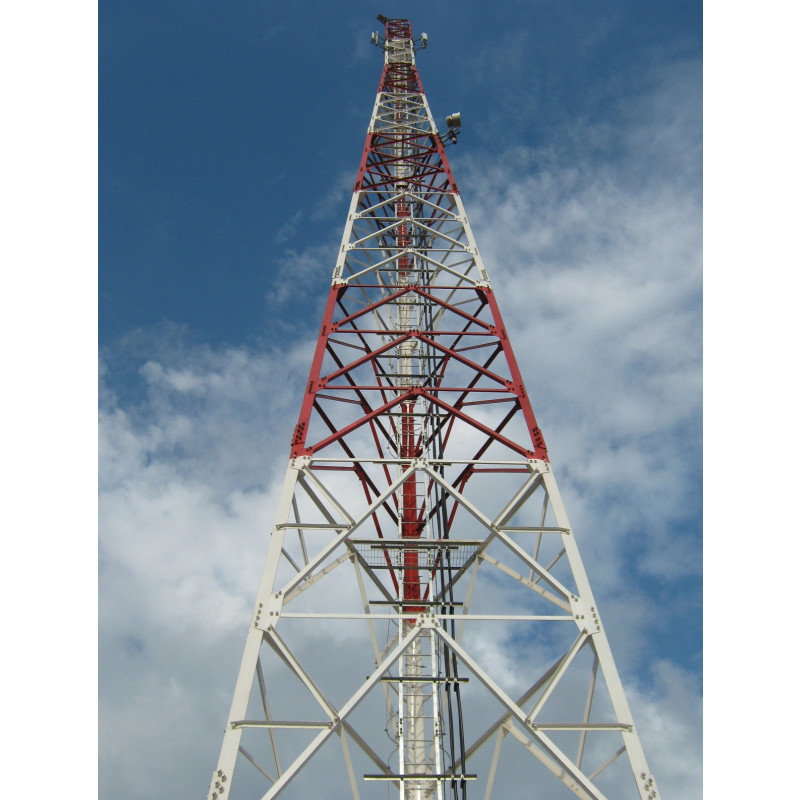

55m Telecommunication Steel Tube Lattice Tower 4 Legs Self Supporting 0

The 55m Telecommunication Steel Tube Lattice Tower is optimized for medium to heavy loads which is used for standard cellular sites.
Altai towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,
obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and
orientation according to customer Specification.


Material:Q235,Q345 usually
Design Standard: AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade: 6.8, 8.8
Basic Wind Speed: 0-330km/h
Working and Rest Platform:height and quantity up to clients
Antenna Load:depends on clients
Steel Tube Tower Color:customized
Galvanized: according to ASTM A123 standard hot dip galvanized. We have our own galvanization plant.
Usage of Towers: GSM/CDMA Equipment
Payment: 30% deposit and 70% before shipment
Delivery Time:usually 30 days after deposit received
Warranty: at least 25 years
