Self Support Steel Mobile Antenna Tower Made of Galvanized Steel Tubes and Plates

  • Self Support Steel Mobile Antenna Tower Made of Galvanized Steel Tubes and Plates
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5605G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Self-Support Steel Mobile Antenna Tower Made Of Galvanized Steel Tubes And Plates Material Q235b Or Q345b
Surface Treatment Hot-dip Galvanized Design Wind Speed Up To 280 Km/h
Height 20-100M Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
Design Loading As Per Requirement And Specification By Clients Worldwide.
High Light

Self Support Mobile Antenna Tower

,

Galvanized Steel Mobile Antenna Tower

,

3 Legs Self Supporting Antenna Tower
Leave a Message
Product Description

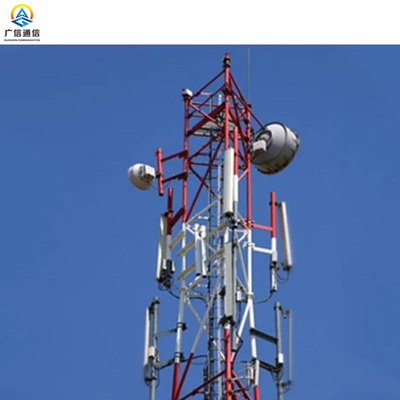

Self-Support Steel Mobile Antenna Tower Made of Galvanized Steel Tubes and Plates



Self Support Steel Mobile Antenna Tower Made of Galvanized Steel Tubes and Plates 0

3-Legged Self-support Galvanized Tubular Steel Signal Transmission Tower Made of Steel Tubes and Plates
3-legs Self-supporting Galvanized Steel Lattice Communication Tower
Tubular Steel Lattice Telecommunication Tower with 3 legs, free standing fixed by steel frame concrete foundations
Steel Radio Tower, GSM and 4G/5G cellphone station tower, antenna tower, TV tower, radar tower, lighting tower and watching tower
High quality structural low carbon steel tower used for mounting telecom, radio and TV antennas
Professional factory of telecom towers, lighting towers and poles from Guangzhou, China





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Tower Types:



1. 3 Leg Self Supported Angular Tower

2. 3 Leg Self Supported Tubular Tower

3. 4 Leg Self Supported Angular Tower

4. 4 Leg Self Supported Tubular Tower

5. Guyed Tower

6. Monopole Towe

7. Camouflaged Tower: Palm tree, Pine tree, Coconut and other tree

8. Rooftop Tower
