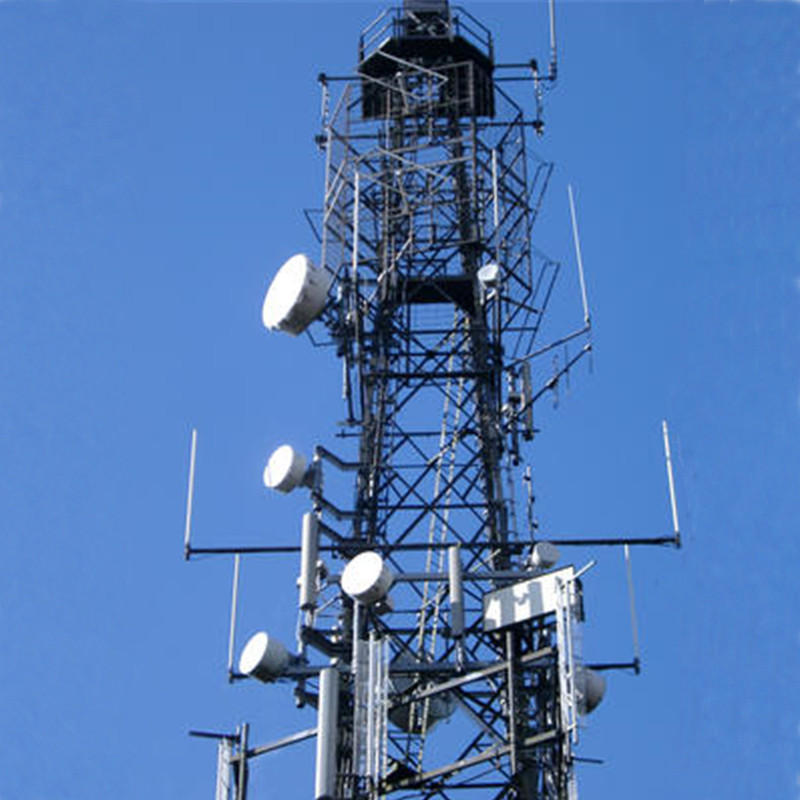

Q235 Q345 Telecom Steel Tower 100m Self Supporting Communication Tower

  • Q235 Q345 Telecom Steel Tower 100m Self Supporting Communication Tower
  • Q235 Q345 Telecom Steel Tower 100m Self Supporting Communication Tower
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-3503
Minimum Order Quantity 1 set
Price USD1998-18888per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 100m Self Supporting Tower Communication Tower Price Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 30m To 100m Or Customized Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 1-4 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm
High Light

Q345 Telecom Steel Tower

,

100m Telecom Steel Tower

,

Self Supporting Communication Tower
Leave a Message
Product Description

100m Self Supporting Tower Communication Tower Price



Feature:



1. material is low carbon structural steel, flat steel plate, bolts and nuts.



2. the application is for signal and power transimission and distribution.



3. Hot-dip galvanized tubular steel, lattice tower, anti-corrosion, anti-rust.



4. Work plateform: height and quantity up to clients



5. Design Standard: AWS D 1.1; ASTM123



6. Packaing details: telecom tower will be bundled by galvanized strapping as client's requirements.





Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.



4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steel plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Q235 Q345 Telecom Steel Tower 100m Self Supporting Communication Tower 0

60m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets



We can provide you with a complete set of service from technical design ,fabrication to shipment:

1. Products Communication tower (including Three legged angle steel tower, four legged angle steel tower , Single pole tower), (Angle steel tower , Single- pipe tower , Steel tube tower),(Square steel tower, Triangular tower, Monopole),Microwave tower, Guyed tower(Guyed Masts), Self supporting tower , Guard tower, Bionic tower,Cell phone tower, lattice tower, Broadcast and TV tower, wind power tower, Power transmission tower ,Electric Power Series Towers (--Substation Structures,-Power Transmission Line Angle Steel Tower, -Power Transmission Line Steel Tube Towers), Street Light Pole Series, Technical Decoration Series Towers, Environment Series Towers etc.all kinds of towers.

2. Notion :Manufacturing with heart ,Achieving with Honesty.

3. Certificattion: we have passed ISO9002 certification and GJB9001A-2001 certification .

4. We have many advanced equipments which ensure the capacity of 100,000 tons high precision products each year .

5. We hold quality and honor as our persistent goal and have occupled markets with different technological products.

6. We have built long-term relationship with many countries all over the world ,as America ,Germany , Morocco,Sir Lanka ,Russia, France, Britain, Australia, Spain, Indonesia, Singapore, the Philippines, Morocco, Maori Thalia, Kenya, etc...



Towers made by our company can be widely used in army ,post,telecommunication,mobile communication,water resource,traffic, public security,raiway,banks,coalmine,metallurgy,radio and TV,etc.The best design can be made by our company according to the information about the site of the tower and the related natural conditions provided by the client.

We would be glad to provide you excellent products pricing and service!
