4-Legged Self Supporting Mobile Steel Tower 30m to 70m Hot Dip Galvanized Pole

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-051
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 20-30 Days Name Galvanized Steel Angular Or Tubular Cell Lattice Tower
Material Weldable Structural Angle Steel Plates Or Pipes Surface Finish Hot Dip Galvanization
Height 30m To 100m Or Customized Height Material Grade GB Q235, Q345, Q355 Or Specified Grade
Yield Strength 235~355MPa Galvanized Thickness 65~85 Microns
Design 1-5 Platforms With Mounting Brackets Wind Load 0.36-1.0kN/sqm
Lifespan 20-50 Years Warranty 3 Years
Leave a Message
Product Description

4 Legs Self-Supporting Communication Antenna Steel Tower, made from hot dip galvanized angle steel plates

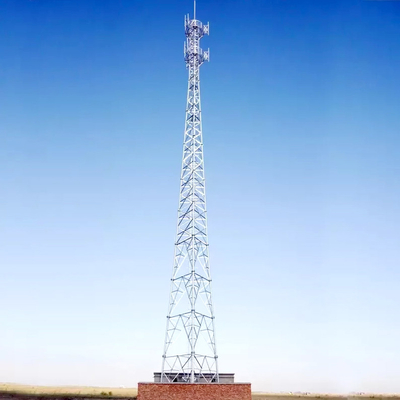

4-Legged Self Supporting Mobile Steel Tower 30m to 70m Hot Dip Galvanized Pole 0

4 legs Self-supporting Galvanized steel Lattice Communication Tower, Antenna Tower, Radio Tower and Transmission Tower



Hot dip galvanized steel radio and telecommunication antenna tower is an important suppot of 2G, 3G, 4G, 5G signal transmission and coverage. A high mast tower or pole up to 100m can help to enlarge communication signal coverage.



There are 3 popular types of lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The steel lattice towers are usually as high as 35m to 100m. Besides using for telecommunications, the steel towers are also widely used for power transmission and distribution as well as TV signal transmission stations.



SST: Self-supporting Steel Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.



4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.





Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



4-Legged Self Supporting Mobile Steel Tower 30m to 70m Hot Dip Galvanized Pole 1

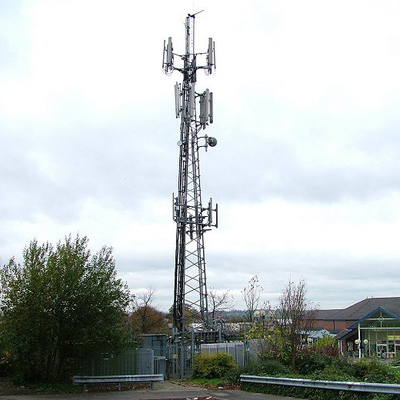

4-Legged Self Supporting Mobile Steel Tower 30m to 70m Hot Dip Galvanized Pole 2

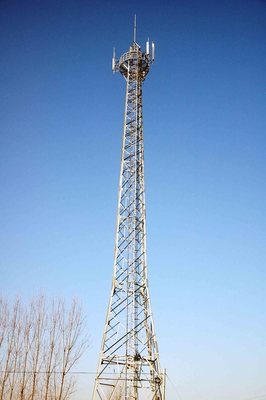

70m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets





The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.



Similar Galvanized Steel Communication Towers



4-Legged Self Supporting Mobile Steel Tower 30m to 70m Hot Dip Galvanized Pole 3

3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.



So the most popular 3 legged steel lattice tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.



The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
