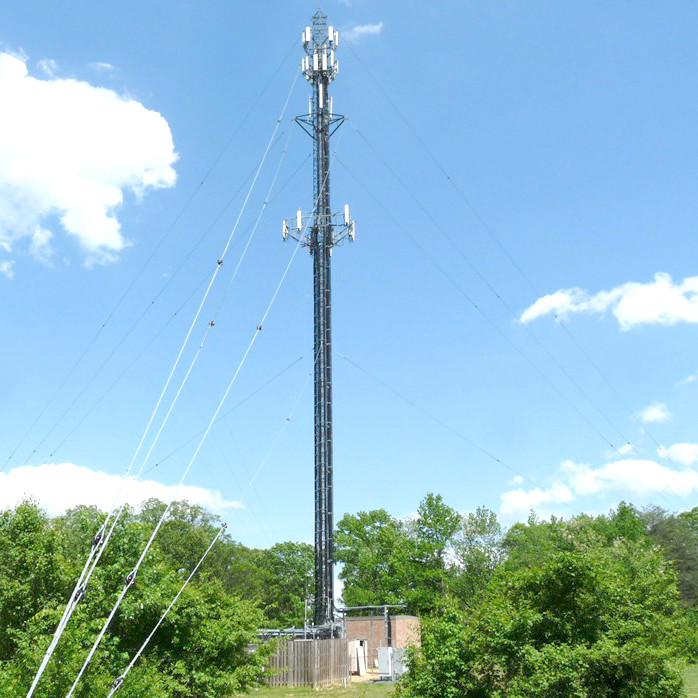

40m High Mast Guyed Wire Self Supporting Lattice Tower Galvanized Steel

  • 40m High Mast Guyed Wire Self Supporting Lattice Tower Galvanized Steel
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GWT-006
Minimum Order Quantity 1 set
Price USD1998-9998 per set
Packaging Details bulk
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Steel Guyed Wire Communication Tower Material Weldable Structural Angle Steel Plates And Pipes Or Round Bars
Height 15m-45m Design Telescopic Mast Guyed Wire Tower
Wind Load 0.35-0.85kN/sqm Applications Communication Telecom Antenna Transmission
High Light

40m Self Supporting Lattice Tower

,

15m Self Supporting Lattice Tower

,

40m self supporting tower
Leave a Message
Product Description

40m High Mast Guyed Wire Self Supporting Lattice Tower Galvanized Steel



40m High Mast Guyed Wire communication Antenna Microcell Tower





3-legged or 4-legged Guyed Wire Communication Tower

Galvanized Steel Telecommunication Tower

3 legs Tubular or 4 legs Angular Steel Lattice Telecom Tower

Galvanized Steel Guyed Wire Lattice Tower

Galvanized Steel Telescopic Communication Mast Tower

Tubular Steel Guyed Wire Telescopic Lattice Tower for Communication or Power Transimission and Distribution



Established in 2009 and since then, Guangzhou Guangxin Communication Equipment Co., Ltd. has been a professional manufacturer of steel towers and poles for communication, traffic and power transmission and distribution industries, we've been supplying the angular steel towers, tubular steel towers and poles, street light poles, high mast landscaping towers, artificial tree towers and other steel structures for related applications. By now, we are one of leading suppliers of steel towers, poles and structural steel frames in China, we can fabricate the all kinds of steel towers, poles and gantry frames as well as artificial tree towers according to customer's designs, specifications, requirements and drawings. To satisfy the customer's demands and supply good quality products is our business goal and responsibility.



Specifications



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations



Features



* Telescopic mast tower to match required heights.

* Custom designs and precise fabrication.

* Popular for Movable mobile communication transmission atenna station

* 3 or 4 legs lattice tower designs, flexible height from 10m to 70m.

* Motorized tower, easy for installation, transportation and moving.
