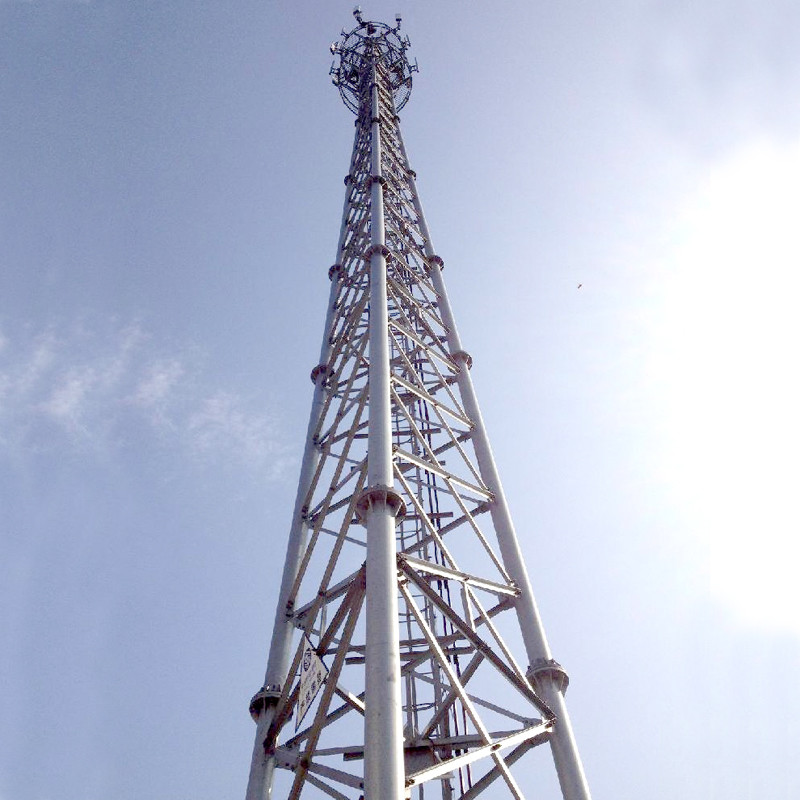

30-60m High 3 Legs Galvanized Steel Telecommunication Tubular Lattice Tower

Established in 2009, we're professional manufacturer of steel towers and poles which are widely used for communications signal transmission and power transmission or disctribution. We've been specializing in fabrication of steel towers and poles for more than 10 years and we can produce the towers and poles according to your designs, drawings, specifications and requirements.

There are 3 popular types of galvanized steel lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The self-supporting steel lattice towers are usually as high as 30m to 100m.

SST: Self-supporting Steel Tower

Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 30m to 100m, the steel lattice towers are widely used for mounting communication microcell or macrocell stations and power transmission or distribution wires and cables.

Specifications of 3 Legged Tubular Steel Lattice Tower

                              Construction of 3 legs lattice tower foundation

3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.

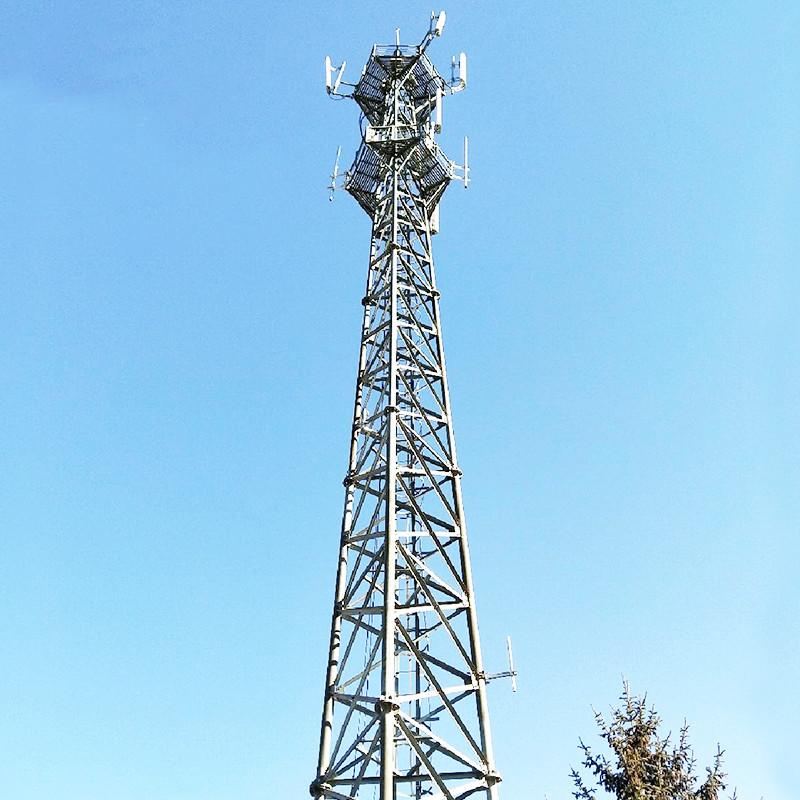

                                     3 leggs Galvanized Steel Lattice Tower with 2 platforms

The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.

Similar or Related Communications Towers

4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.

The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
