ODM OEM Galvanized Tubular Steel Tower 20m 3 Legged Self Supporting

Place of Origin Guangzhou, China
Certification ISO9001
Model Number SST-035
Minimum Order Quantity 1 set
Price USD1998-9998 per piece
Packaging Details plastic bubble sheets and pearl wool sheets
Delivery Time 20-30days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Tubular Steel Tower Material Wledable Structural Carbon Steel Pipes And Plates
Design Self-supporting Steel Tower Plateforms 1-5 Platforms With Mounting Brackets
Wind Speed 30-60m/s Applications GSM, 2G, 3G, 4G, 5G Macrocell And Microcell Communication Stations
High Light

ODM Tubular Steel Tower


20m Tubular Steel Tower


20m lattice steel tower

Leave a Message
Product Description

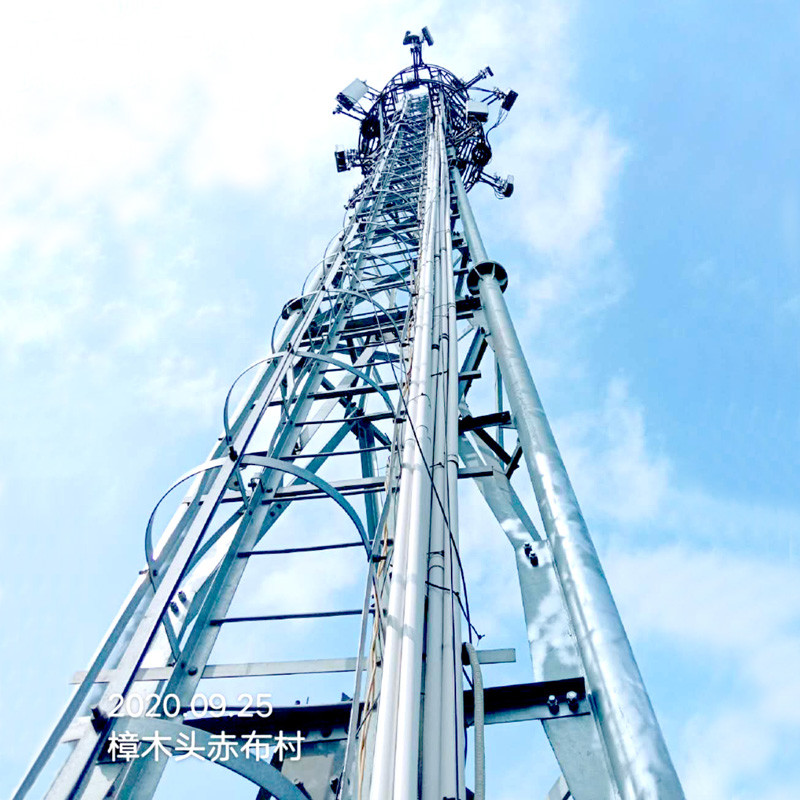

ODM OEM Galvanized Tubular Steel Tower 20m 3 Legged Self Supporting


3 Legged Self-Supporting Galvanized Steel Lattice Tower For Mobile Communication Stations


We're professional manufacturer of steel towers and poles which are widely used for communications signal transmission and power transmission or disctribution. We've been specializing in fabrication of steel towers and poles for more than 10 years since 2009 and we can produce the towers and poles according to your designs, drawings, specifications and requirements.


SST: Self-supporting Steel Tower


Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 30m to 100m, the steel lattice towers are widely used for mounting communication microcell or macrocell stations and power transmission or distribution wires and cables.


Specifications of 3 Legged Tubular Steel Lattice Tower


Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations


ODM OEM Galvanized Tubular Steel Tower 20m 3 Legged Self Supporting 0

                              Construction of 3 legs lattice tower foundation


3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.


ODM OEM Galvanized Tubular Steel Tower 20m 3 Legged Self Supporting 1

                                     3 leggs Galvanized Steel Lattice Tower with 2 platforms


The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.


Rooftop Steel Tower


                                    5m to 15m Rooftop Bipod or Tripod or Lattice Tower

The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.
