ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | STP-013 |
| Minimum Order Quantity | 1 set |
| Price | USD498-8798 per piece |
| Packaging Details | plastic bubble sheets and pearl wool sheets |
| Delivery Time | 20-30days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Monopole Antenna Tower POLE | Material | Carbon Steel |
|---|---|---|---|
| Height | 15m To 35m Or Other Customized Height | Wind Speed | 35-50m/s |
| Lifetime | 20-50 Years | Warranty | 3 Years |
| Delivery Time | 20-30 Days | ||
| Highlight | OEM 35m Steel Tubular Pole,15m 35m Steel Tubular Pole,35m monopole antenna Tower |
||
Product Description

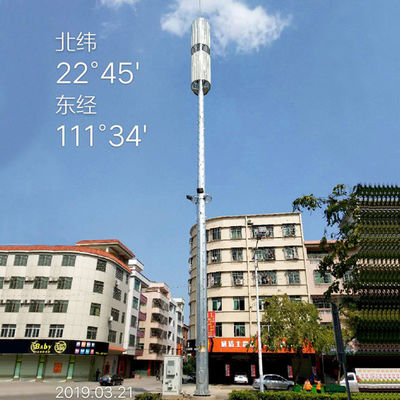

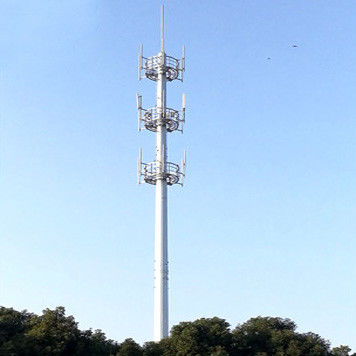

ODM OEM High Mast Steel Tubular Pole 35m 3 Platforms Self Supporting
Custom Design Galvanized Steel Communication Poles for Radio and 3G/4G/5G Telecom Antenna Stations
Custom designed and fabricated steel tower for worldwide communication applications.
All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.
The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.
The popular steel communication poles include conical or tapered pole, hexagonal or polygonal steel pole, straight round steel pole and octagonal pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.
Specifications
| Descriptions | Steel poles for mounting communication antennas, microwaves, RRUs etc. |
| HS Code | 7308900000 |
| Material | Weldable structural carbon steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 55m or other specified height |
| Thickness | 4mm to 20mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple platforms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns (optional) |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution. |
The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.
Applicable Examples of Steel Tower and Pole
Communication Tower
Street/Roadway/highway/stadium light pole
Traffic signal light pole,Traffic CCTV monitor camera and sign pole
Smart City Management System Light Pole
Signage/Advertising Billboard or LED display pole or gantry
High Mast Landscape/Lighting/Communication Steel Tower
Artificial Tree Camouflaged Antenna Cell Tower
