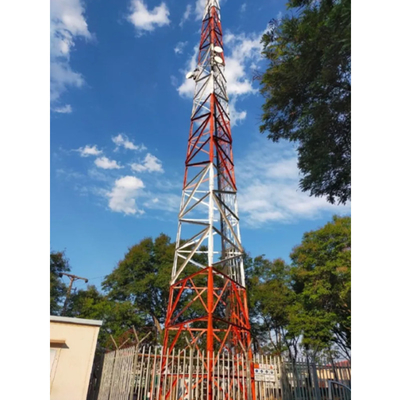

35m Triangle Telecom Steel Lattice Tower 150kmph With Color Coating
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Model Number | GX-5668G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Product Name | 35m Triangle Telecom Steel Lattice Tower |
|---|---|---|---|
| Tower Type | Self Supporting Vertical Tubular | Connection Type | Parts For Connection Or Installation Will Be Provided |
| Impact Strength KV (J) | 27(20°C)---Q345B(S355JR) | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
| Height | 20m To 110m Available | Yield Strength | 355 MPa |
| Steel Structure | ASTM A572 Steel | Braces | GB/T 700:Q235B |
| Galvanization Standard Of Steel Sections | ISO 1461 Or ASTM A123 | Design Of Pole | Against Earthquake Of 8 Grade |
| Bolts | DIN7990, DIN931, DIN933 | ||
| High Light | 35m Triangle Telecom Steel Lattice Tower,150kmph Steel Lattice Tower |
||
Product Description
35m Triangle Telecom Steel Lattice Tower 150kmph With Color Coating
The Feature of Telecom Steel Lattice Tower:
The steel lattice is the most widespread form of construction. It provides great strength, low weight and wind resistance, and economy in the use of materials. Lattices of triangular cross-section are most common, and square lattices are also widely used. Guyed Masts are often used; the supporting guy lines carry lateral forces such as wind loads, allowing the mast to be very narrow and simply constructed. Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution. We offer full project management services from site acquisition & planning permission to foundations and installation.
Our experienced team of managers, designers, fabricators, and installers will look after the entire process from start to finish.
Specification of Communication Telecom Steel Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Customer Support Services
- We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.
- We undertake the design, manufacturing and construction of all kinds of steel structure.
- Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.
- Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
