30m Galvanized Steel Pipe 3 Legged Lattice Wind Tower For Wind Turbine

  • 30m Galvanized Steel Pipe 3 Legged Lattice Wind Tower For Wind Turbine
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5668G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 3 Legged Lattice Wind Tower For Wind Turbine
Steel Structure HDG Lattice Steel Tower Material EN10025: S355JR, S355J0,S355J2
Braces GB/T 700:Q235B Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Design Wind Speed 35/210kph Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123
Design Of Pole Against Earthquake Of 8 Grade Design Loading As Per Requirement And Specification By Clients Worldwide
Bolts And Nuts Mainly ISO 898 Grade 6.8 And 8.8 Bolts
High Light

3 Legged Lattice Wind Tower

,

Galvanized Steel Pipe Lattice Wind Tower

,

30m Telecom Steel Tower
Leave a Message
Product Description

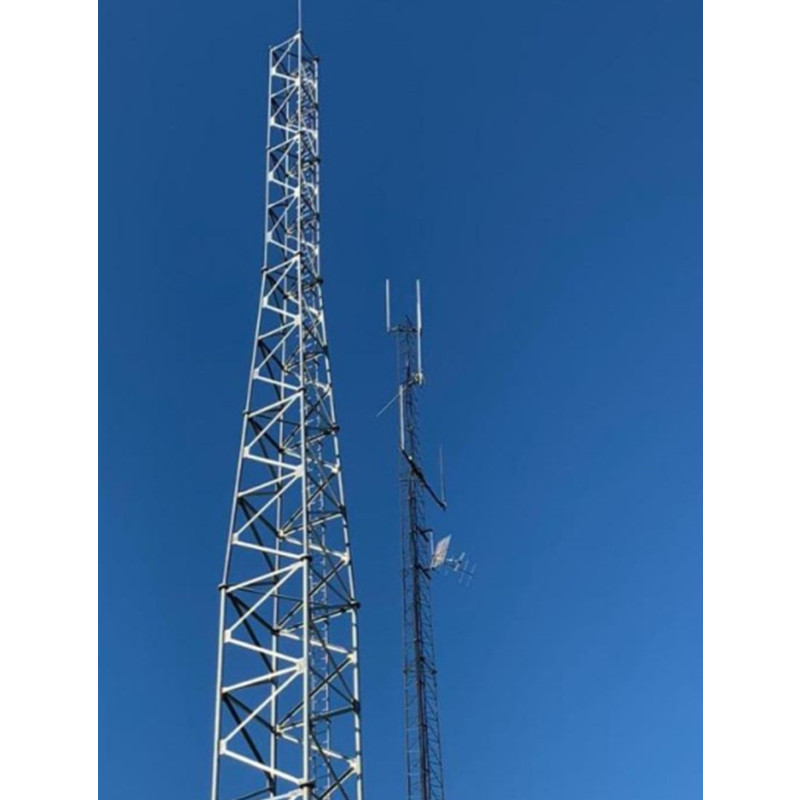

30m Galvanized Steel Pipe 3 Legged Lattice Wind Tower For Wind Turbine





The feature of 3 Legged Lattice Wind Tower:



a) Classification by material: angle steel towers, steel pipe towers.



b) Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.



c) According to the support methods: self-standing towers, pull-line towers;



d) According to location: ground tower, roof tower;



e) The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers





Specification of 3 Legged Lattice Wind Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






FAQ:



1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
