3 Leg 4 Leg Angular Antenna Telecommunication Mobile Tower Against Earthquake 8 Grade

  • 3 Leg 4 Leg Angular Antenna Telecommunication Mobile Tower Against Earthquake 8 Grade
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5661G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Angular Antenna Telecommunication Mobile Tower
Steel Structure HDG Lattice Steel Tower Material EN10025: S355JR, S355J0,S355J2
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Tower Type Self Supporting Angular / Tubular Design Wind Speed 35/210kph
Design Of Pole Against Earthquake Of 8 Grade Connection Type Parts For Connection Or Installation Will Be Provided
Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
High Light

Angular Antenna Telecommunication Mobile Tower

,

3 Leg Telecommunication Mobile Tower
Leave a Message
Product Description

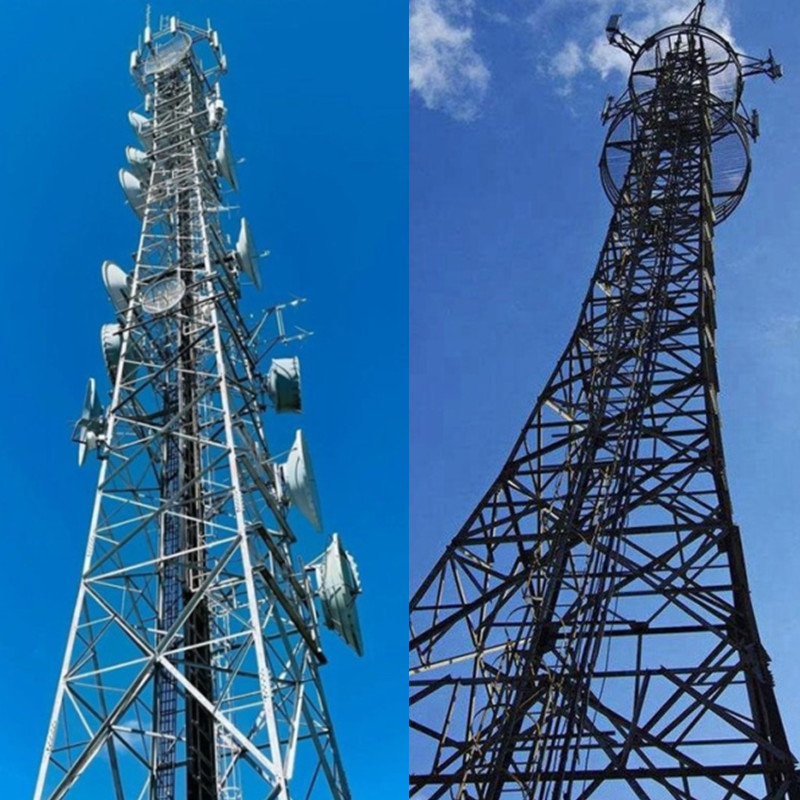

3 Leg 4 Leg Angular Antenna Telecommunication Mobile Tower





Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution. We offer full project management services from site acquisition & planning permission to foundations and installation. Our experienced team of managers, designers, fabricators, and installers will look after the entire process from start to finish.



Specification of Telecommunication Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Steel tower:



What is the Communication lattice tower? Communication tower Product Description:

Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.
