ASTM A123 Telecommunication Tower Accessories 4 Leg Tubular GSM MW Antenna
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Model Number | GX-5660G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Product Name | Telecommunication Tower Accessories |
|---|---|---|---|
| Steel Structure | HDG Lattice Steel Tower | Material | Steel Q355B(GB/T 1591) Or Q235B(GB/T 70) |
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Tension Strength (Mpa) | 360~510 |
| Tower Type | Self Supporting Angular / Tubular | Design Wind Speed | 35/210kph |
| Design Of Pole | Against Earthquake Of 8 Grade | Connection Type | Parts For Connection Or Installation Will Be Provided |
| High Light | 4 Leg Tubular Telecommunication Tower Accessories,ASTM A123 Telecommunication Tower Accessories |
||
Product Description

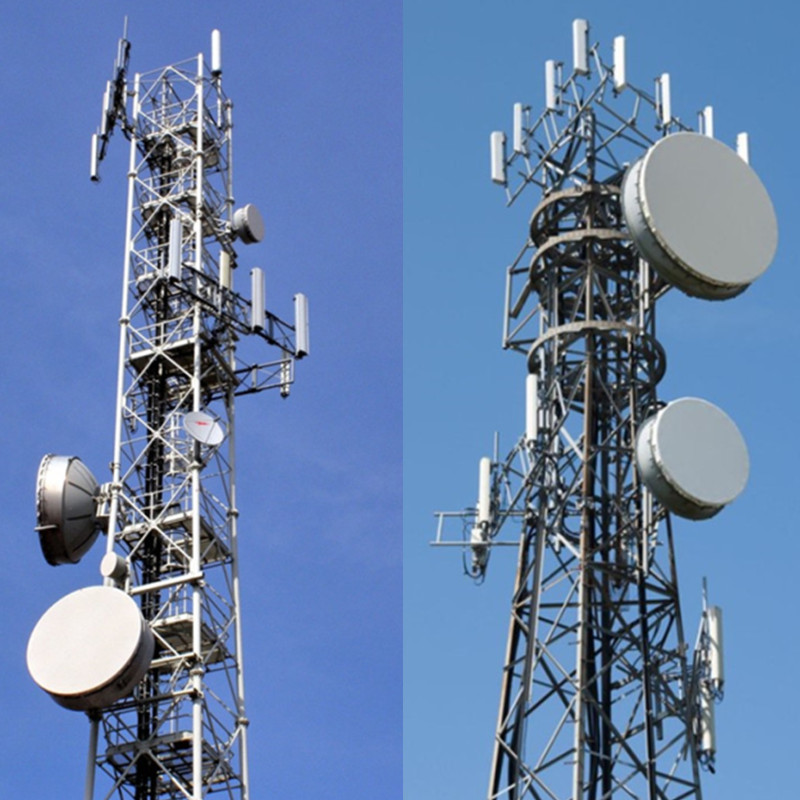

4 Leg Tubular GSM MW Antenna Telecommunication Tower Accessories
The steel tube communication tower is mainly suitable for pull towers. Its main material is mainly made of steel pipe, because its root can be made very small, suitable for narrow sites or near the building, but the cost is higher than the angle steel Lattice tower.
Specification of Telecommunication Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Feature of Antenna Telecom Steel Tower:
1. Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;
2. Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2;
3. Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project;
4. Communication tower flexion angle: less than 1 degree;
5. Center tilt: The verticality of the tower shall not be greater than 1/1500 of the height of the steel Lattice tower ;
6. The period of preservation: not less than 30 years in the local environment;
7. Galvanizing requirements: General thickness greater than 86 microns, uniform thickness, smooth surface. The specific situation is determined according to the specific project;
8. Classification by material: angle steel towers, steel pipe towers.
9. Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.
10. According to the support methods: self-standing towers, pull-line towers;
11. The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers.
