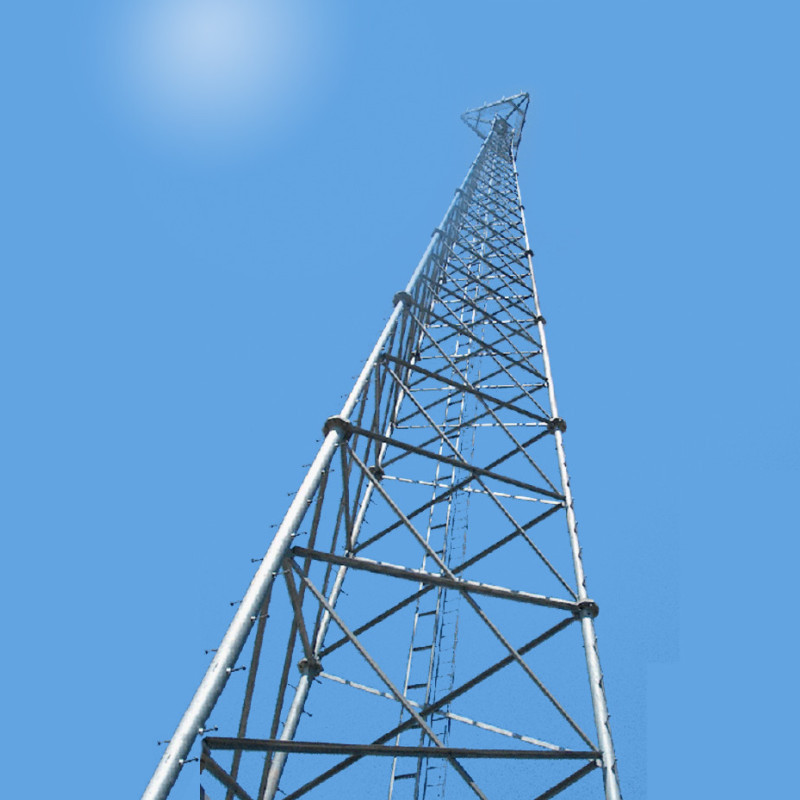

Triangular 3 Legs Steel Telecom Antenna Tower 20m To 100m Iso9001

Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5658G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Triangular 3 Legs Steel Telecom Antenna Tower Iso9001 Steel Structure HDG Lattice Steel Tower
Tower Type Self Supporting Angular / Tubular Material Steel Q355B(GB/T 1591)
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Connection Type Parts For Connection Or Installation Will Be Provided
Design Wind Speed 35/210kph Warranty 10 Years
Tower Lifespan 50 Years Design Of Pole Against Earthquake Of 8 Grade
Welding Standard AWS D1.1
High Light

Steel Telecom Antenna Tower


Triangular 3 Legs Telecom Antenna Tower


100m Telecom Antenna Tower

Leave a Message
Product Description

Triangular 3 Legs Steel Telecom Antenna Tower iso9001



Communication tower technical indicators:


a) Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;


b) Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2;


c) Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project;


d) Communication tower flexion angle: less than 1 degree;


e) Center tilt: The verticality of the tower shall not be greater than 1/1500 of the height of the steel Lattice tower ;


f) Seismic strength: ≥8°;


g) The period of preservation: not less than 30 years in the local environment;


h) Galvanizing requirements: General thickness greater than 86 microns, uniform thickness, smooth surface. The specific situation is determined according to the specific project;


i) Material: Q345 Q235


j) Source of steel: Baosteel / Shougang / Handan Iron and Steel



Specification of lattice tower:


Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Communication tower product classification:


a) Classification by material: angle steel towers, steel pipe towers.


b) Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.


c) According to the support methods: self-standing towers, pull-line towers;


d) According to location: ground tower, roof tower;


e) The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers.




1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients
