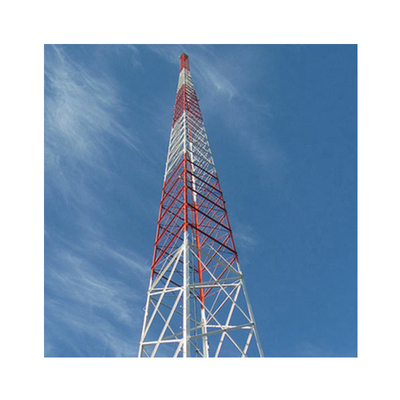

4 Legs Angular Galvanized Lattice Telecom Steel Tower 30kph White Red Spraying Color

  • 4 Legs Angular Galvanized Lattice Telecom Steel Tower 30kph White Red Spraying Color
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5655G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 Legs Angular Lattice Tower 30kph With White Red Spraying Color Steel Structure HDG Lattice Steel Tower
Material Steel Q355B(GB/T 1591) Hot-dip Galvanization ISO 1461 2009, ASTM A123
Design Of Pole Against Earthquake Of 8 Grade Tension Strength (Mpa) 360~510
Design Wind Speed 80/220kph Tower Type 3 Legs 4 Legs Angular / Tubular
Connection Type Parts For Connection Or Installation Will Be Provided Warranty 10 Years
Tower Lifespan 50 Years
High Light

Galvanized Lattice Telecom Steel Tower

,

4 Legs Angular Telecom Steel Tower

,

Telecom Steel Tower 30kph
Leave a Message
Product Description

4 Legs Angular Galvanized Lattice Steel Towers 30kph With White Red Spraying Color



Feature of galvanized lattice steel towers:



Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.



Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution. We offer full project management services from site acquisition & planning permission to foundations and installation. Our experienced team of managers, designers, fabricators, and installers will look after the entire process from start to finish.



Angular steel tower is made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.





Specification of galvanized lattice steel towers:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Steel Grade & Steel Elements:

  1. All structural angle sections, plates and other sections shall comply with relevant British Standards.
  2. Sections used in the fabrication of members shall be cut from single piece of material (no welded pieces).
  3. Grades of the steel to comply with BS EN 10025 Grade 275 JR/355 JR or equivalent ASTM
  4. Materials used in production of steel work shall be provided free from blisters, mill scale, laminations and other defects.
  5. The minimum yield and tensile strength of steel to be used for manufacture of steel work will be in accordance with the design calculations.
  6. Tower legs to be high grade steel and manufacturer shall identify clearly the grades of the steel in writing to the Employer.
  7. The necessary holes needed for the ground connection on the tower legs close to the base plates must be designed & drilled prior to galvanizing.
  8. Member usage allowed is maximum 85% in comp & Tension
  9. Climatic conditions should be considered while designing the Self-supporting Telecommunication Towers .
