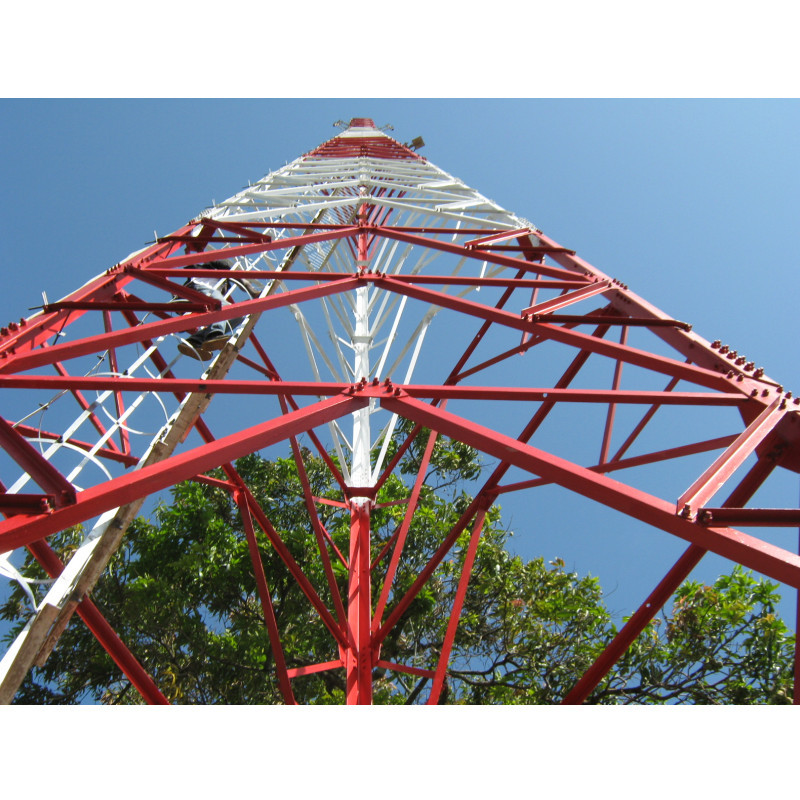

Angular Telecom Steel Tower GSM With Radio Antennas Tension strength 510Mpa

  • Angular Telecom Steel Tower GSM With Radio Antennas Tension strength 510Mpa
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5616G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Angular Telecom Tower GSM Steel Tower With Radio Antennas Design Wind Speed Up To 250 Km/h
Design Loading As Per Requirement And Specification By Clients Worldwide. Supply Mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Tension Strength (Mpa) 360~510
Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc Tower Type Tube Towers, Mono Pole Tower, Angle Towers
High Light

Angular Telecom Steel Tower

,

GSM Telecom Steel Tower

,

Radio Antennas Telecom Steel Tower
Leave a Message
Product Description

Angular Telecom Tower GSM Steel Tower with Radio Antennas







Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs or 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Allowable deflection 0.5 ~1.0 degree @ operational speed
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

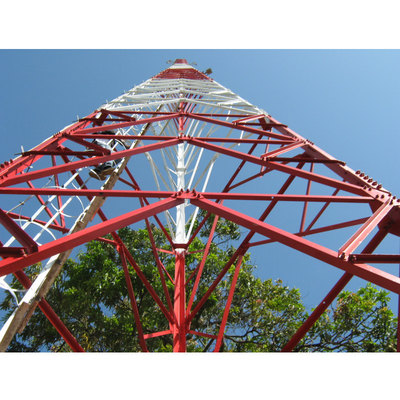

Angular Telecom Steel Tower GSM With Radio Antennas Tension strength 510Mpa 0

self-support steel lattice tower is generally made of equal angular steel plates and flat steel plates. The 4-legged lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steel plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization. Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.
