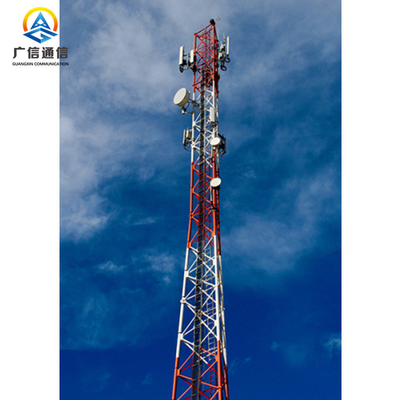

Signal Transmission Angle Radar Telecom Steel Tower 110M Height

  • Signal Transmission Angle Radar Telecom Steel Tower 110M Height
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5612G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Signal Transmission Angle Steel Radar Telecom Tower Material Angle Steel Plates, Flat Steel Plate, Bolts And Nuts
Surface Treatment Hot-dip Galvanized Height 20-110M
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc Supply Mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Design Loading As Per Requirement And Specification By Clients Worldwide. Hot-dip Galvanization ISO 1461 2009, ASTM A123
High Light

Angle Radar Telecom Steel Tower

,

Signal Transmission Telecom Steel Tower

,

Telecom Steel Tower 110M
Leave a Message
Product Description

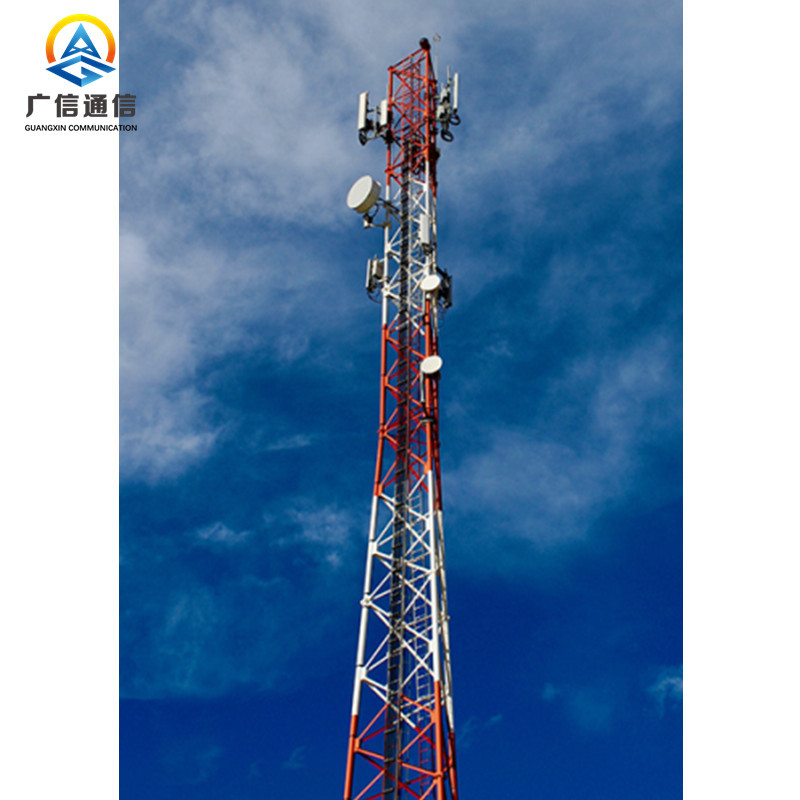

Signal Transmission Angle Steel Radar Telecom Tower





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Feature:

1, Design layout and drawing, set up specifications and sizes.
2, Buy row seamless steel pipes or flat steel plates and folding and welding them to be tubular pipes as well as galvanized steel bolts, nuts, washers and springs.
3, Measure and cut out sizes and holes.
4, Weld necessary parts (such as footing plates, connecting flanges and gussets, antenna mounts, lightning rod, ladder etc.)
5, Polish burrs and welding scars to make all members good surface.
6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.
7, Hot dip galvanization: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry
8, Check quality and start packing.



4-legged self-support steel lattice tower is generally made of equal angular steel plates and flat steel plates. The 4-legged lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steel plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.
