Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized

  • Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized
  • Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Model Number GX-1009
Minimum Order Quantity 1 set
Price USD20000 per set
Packaging Details wooden pallet and cartons
Delivery Time 20-25 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Type Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized
Height 40-100m Applications Camouflaged Communication Antenna Station, Landscaping
Design Loading As Per Requirement And Specification By Clients Worldwide. Material Q235B Or Q345B
Lifespan 50 Years Life Period More Than 25 Years, It Is According To Installing Environment
High Light

ISO9001 Camouflage Cell Phone Tower

,

Customized Height Camouflaged Cell Towers

,

40m Steel Camouflaged Cell Towers
Leave a Message
Product Description

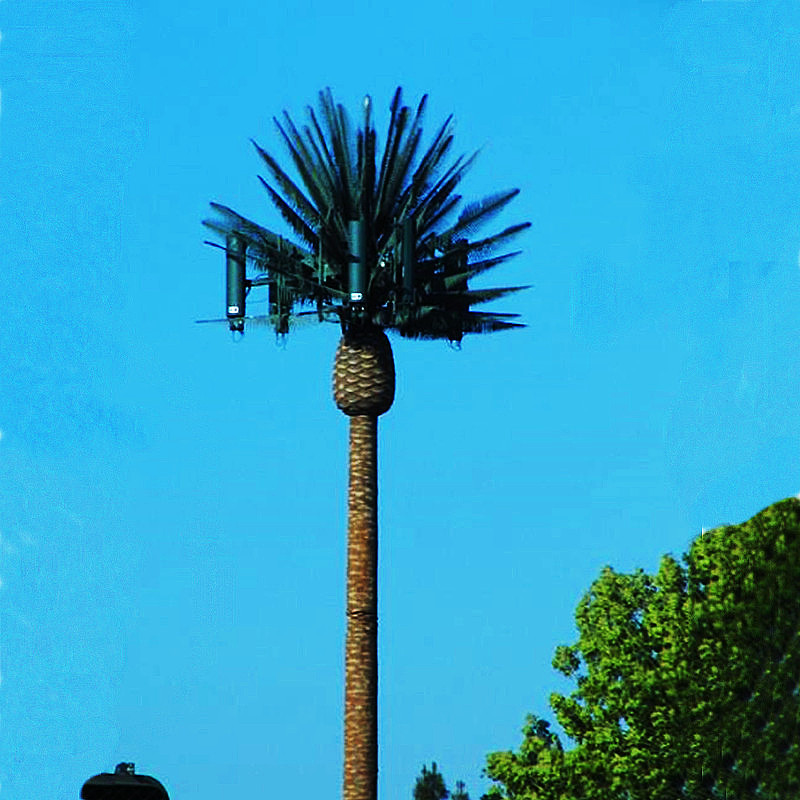

Camouflage Palm Tree Tower Pin Tree Concealment with Galvanized





Specifications of Antenna Mast:



Descriptions Artificial palm tree Steel pole for landscaping and mounting communication antennas, microwaves, RRUs etc. as camouflaged telecom tower
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 50m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus bionic cortex
Galvanization 65-100 Microns
Cortex and leaves fiberglass and polymer resin
Color artificial palm green leaves and brown cortex
Applications landscaping and GSM, radio, 3G/4G/5G microcell, macrocell and other communication signal transmission and distribution.

















































These towers are used for cellular radio base stations in urban areas where there is a need to reduce their visual impact on the environment. Guangxin Communication offers an efficient solution in the form of artificial tree that is functional like any other regular telecommunication tower. Their main advantages include reduced environmental impact and modularity of accessory components.



SUPORTING STRUCTURE is composed of individual polygonal or circular poles made up of several shafts kept together by slip-on joints. Shafts are covered with material very similar to the tree bark. Base shaft is flange connected to the foundation with anchor bolts.



FOUNDATION ANCHOR BOLTS are made up of steel rods which are cast in the reinforced concrete foundations and positioned by template included in the supply.



CLIMBING LADDERS are anchored outside or inside of the pole tower and can be equipped with safety climbing system.



FEEDERS & CABLE run down the through the inside of the trunk.



ANNTENA MOUNTS are integral part of a supporting structure.



LIGHTNING & GROUNDING PROTECTION and LIGHTS Towers are equipped with appropriate system of lightning and grounding protection and tower lightning system according to the technical requirements or customers request



TECHNICAL SPECIFICATIONS STRUCTURE CALCULATION The structure calculation was performed according to current Serbian standards and regulations.



WIND LOAD TWIST & SWAY OF THE TOWER TOP Number and type of antennas that can be placed on the pole as well as maximum twist and sway are given in Table 3 and Scheme 3. MATERIALS All used materials comply with the requirements of the European Standards (EURONORM). Structural parts: S355JO (JUS EN 10027-1) S235JRG2 (JUS EN 10027-1) Nuts and bolts: quality 10.9 CORROSION PROTECTION All steel materials are protected by hot-dip galvanizing in accordance with the current standards. Basic wind speed resistance is equivalent to 30m/s. Characteristics used for the calculation: ice thickness 0.02m



Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized 0

Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized 1Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized 2Camouflage Palm Tree Tower Pin Tree Concealment With Galvanized 3
