Q235B Q345B Steel Monopole Cell Tower 20m to 100m Height

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Model Number GX-1521
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Name Q235B Q345B Steel Monopole Cell Tower For Sale
Height 20-90M Steel Structure Steel Monopole
Surface Treatment Hot-dip Galvanization Galvanization Standard ASTM A123/ ISO 1461
Tension Strength (Mpa) 360~510 Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Design Wind Speed Up To 250 Km/h Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Life Period More Than 25 Years, It Is According To Installing Environment
High Light

Q235B Monopole Cell Tower

,

High Strength Monopole Cell Tower

,

Q345B Monopole Transmission Tower

Leave a Message
Product Description

Q235B Q345B Steel Monopole Cell Tower For Sale





Specification of Single Pipe Steel Monopole:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

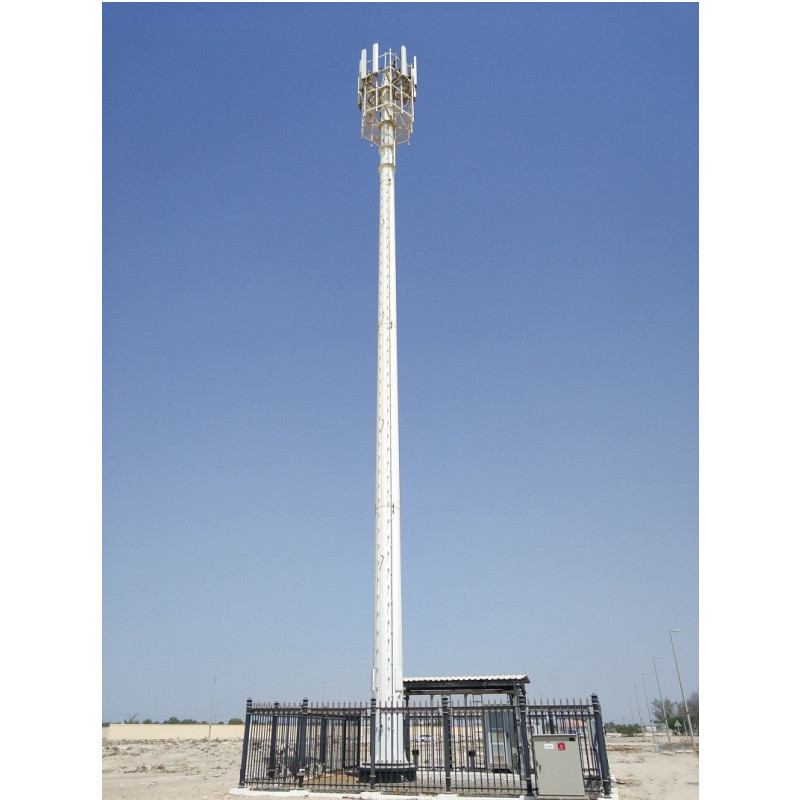

Q235B Q345B Steel Monopole Cell Tower 20m to 100m Height 0



Steel tapered monopoles are designed to carry wireless and microwave communication equipment, constructed of slip-sleeve tapered sections, and made of high-strength steel with minimum yield strength of 65 ksi. Each order includes steel templates to assure proper base bolt alignment.



Monopole vs. lattice tower comparison



Here are some general guidelines [3] for deciding which tower type has the advantage to be selected based on the presented case in this paper where the specified aspects are the Aesthetical, Economical and Statical. Based on each alternative specification would be easier to make a decision concerning the best choice which meets the requirements.



Self–supporting lattice Tower:

1. Can be used for installations from 6 to 60 m.

2. Smaller installation footprint than a guyed tower, but larger than a self–supporting guyed and monopole towers.

3. Often ships knocked down, reducing freight expenses but requiring on–site assembly, Figure 1.

4. Significant wind–loading capacity.

5. The Lightweight Self–Supporting Tower is Ideal for requirements under 30 m with minimal wind–loading capacity and some options use a minimal installation footprint with simple concrete foundation.
