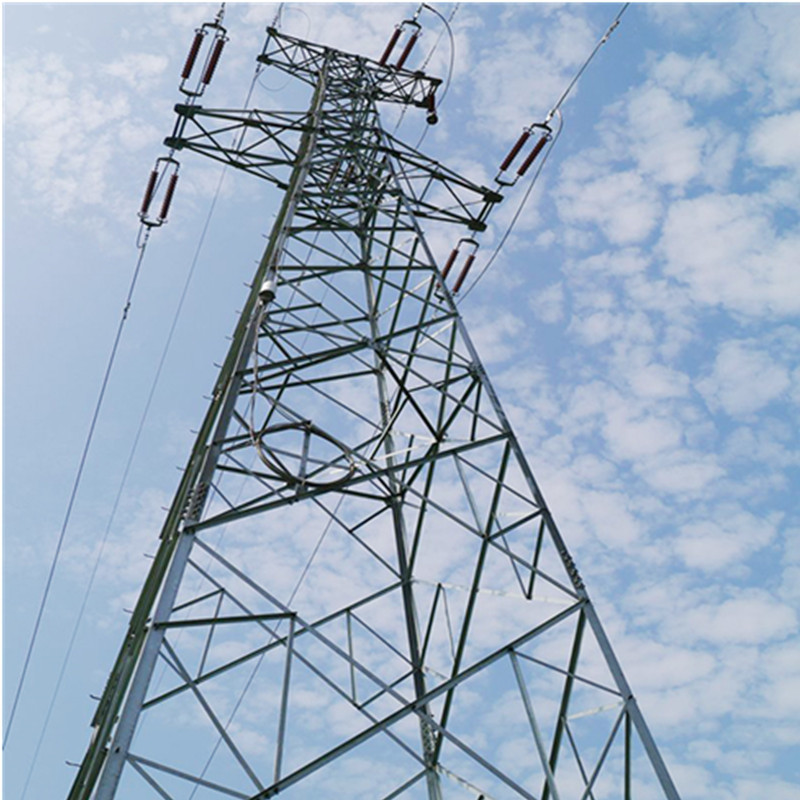

10kv-220kv Transmission Line Towers Lattice Steel Tower

Place of Origin Guangzhou, China
Brand Name Guangxin
Model Number GX-3301
Minimum Order Quantity 1unit
Price USD1200-USD1350 per ton
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 30-40 days
Payment Terms L/C, T/T, Western Union
Supply Ability 800Ton/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certification ISO9001:2008 SGS COC Steel Structure Lattice Power Transmission Tower
Design Wind Speed Up To 250 Km/h Tension Strength (Mpa) 360~510
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Bolts DIN7990, DIN931, DIN933
Nuts ISO4032, ISO4034 Washers DIN7989, DIN127B, ISO7091
High Light

High Tension Transmission Line Towers


Electrical Galvanized Lattice Steel Tower


OEM Lattice Power Transmission Tower

Leave a Message
Product Description

In tower shape ,we have type as follow:

(1) horizontal configuration

(2) vertical configuration

(3) delta configuration

(4) Self-supproted delta structure

(5) H-Fram structure

(6) Guyed-vice structure

(7) Monopole type


10kv-220kv Transmission Line Towers Lattice Steel Tower High Tension Electrical Galvanized



Steel pipes, Angle steel plates, flat steel plates, bolts and nuts distribution tower


Steel Type

Weldable low carbon structural steel


Steel Grade

GB Q235, Q345, BS 4360, ASTM A36 etc.


Yield Strength



Tensile Strength






Surface Finish Hot dip galvanization
Galvanized layer T≥65μm

20m to 100m, customized to requests



4 legs self-supporting or free standing lattice tower



Multiple platforms and brackets for mounting power cables or wires, customized to requests.


Supply mode

CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)



Bolts and nuts, connecting plates



Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.


Wind Load




20-50 years



3 years


Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Transmission line poles and towers

Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and other accessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground or across objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower, straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.
