Microwave Radio Antenna Lattice Tower Angle Steel Mast 60m

Place of Origin China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-460
Minimum Order Quantity 1 set
Price USD5,000 to USD50,000 per set
Packaging Details pallet
Delivery Time 20-60 days subject to order quantity
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100 sets monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Low Carbon Structural Steel Mild Steel Steel Grade Q235B, Q345B, ASTM 572, A36 Etc.
Basic Surface Finish Hot Dip Galvanization Additional Surface Finish Color Powder Coating Or Painting
Yield Strength Not Less Than 235MPa Wind Load 0.35~1kN/m²
Wind Speed 50-360km Per Hour Design Lifespan 50 Years
Warranty 3 Years Delivery Time 20-60 Days, Depending On Order Quantity
Origin Guangzhou, China Loading Port Nansha, Guangzhou Or Shekou Shenzhen
High Light

Microwave Radio Antenna Lattice Tower

,

Angle Steel Mast 60m Lattice Tower

Leave a Message
Product Description

Angle Steel Mast 60m Microwave Radio Antenna Lattice Tower

60m Angular Steel Radio Mast

Self-support Galvanized Steel Communication Tower

4-legged Ground Field Mounted Telecom Steel Lattice Tower

Custom Prefabricated CKD Delivery Heavy Duty Steel Mobile GSM and 5G Antenna Tower

Chinese Supplier of All kinds of galvanized steel masts, lattice towers and mono poles



Our Product Range



1, Telecommunication lattice towers

2, Galvanized steel masts and poles

3, Power transmission and distribution line towers and poles

4, Artificial tree camouflaged antenna towers

5, Street light poles, roadway and highway lighting columns or posts

6, Stadium and sports field lighting towers

7, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames

8, Other steel structures

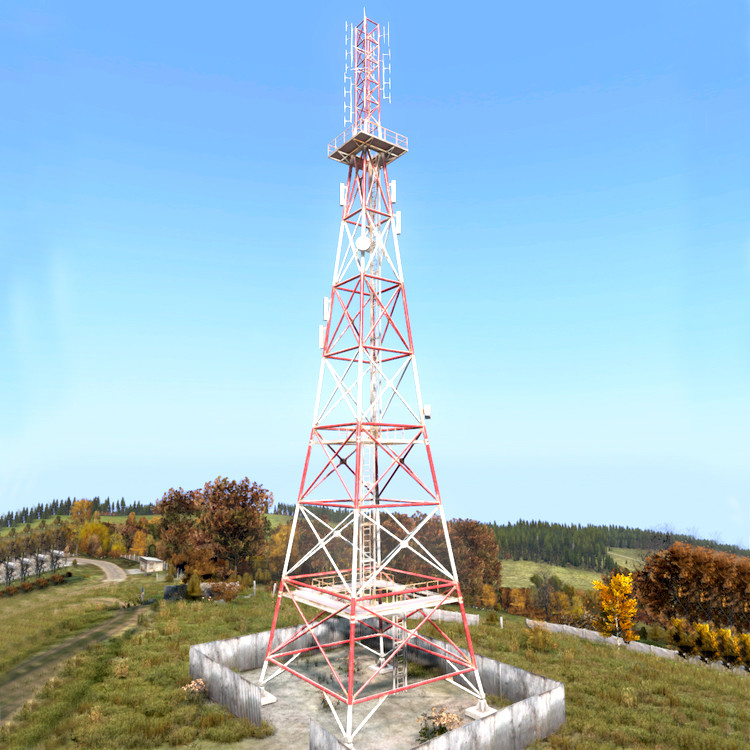

Microwave Radio Antenna Lattice Tower Angle Steel Mast 60m 0

                                                                                 Microwave Radio Tower

Description & Specifications

1. Name: Angle Steel Telecommunication Tower, self-supporting lattice tower and mast
2. Place of Origin: Guangzhou, China
3. Material: Structural and weldable mild steel (low carbon steel)

4, Material grade and performance: Q345B/A572 for main structure (legs or tower bone), Yield Strength ≥ 345 N/mm² (or MPa)
Q235B/A36 for horizontal and diagonal braces, Yield Strength ≥ 235 N/mm²
Specified material is acceptable.
5. Tower Type: 4 legs, self-supporting and free standing, lattice tower
6. Height: 15m to 150m, customized to design requirements
7. Wind Load: 0.35-1 kN/m²
8. Connection: Anchor Bolts and nuts
9. Surface Treatment: Hot Dip Galvanization
10. Zinc Coating thickness: 65μm-110μm
11. Delivery condition: CKD (completely knocked down) components and parts
12. Tower structure: steel framed concrete foundations, tower sections, rest platforms and work platforms, clambing ladder, mounting brackets, lightning rod, earthing leads, cable tray etc.
13. Applications: microcell and macrocell cell phone stations, 5G, GSM, RRU, CDMA mobile phone signal transimssion and Microwave, Radio antenna support etc.
14. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA

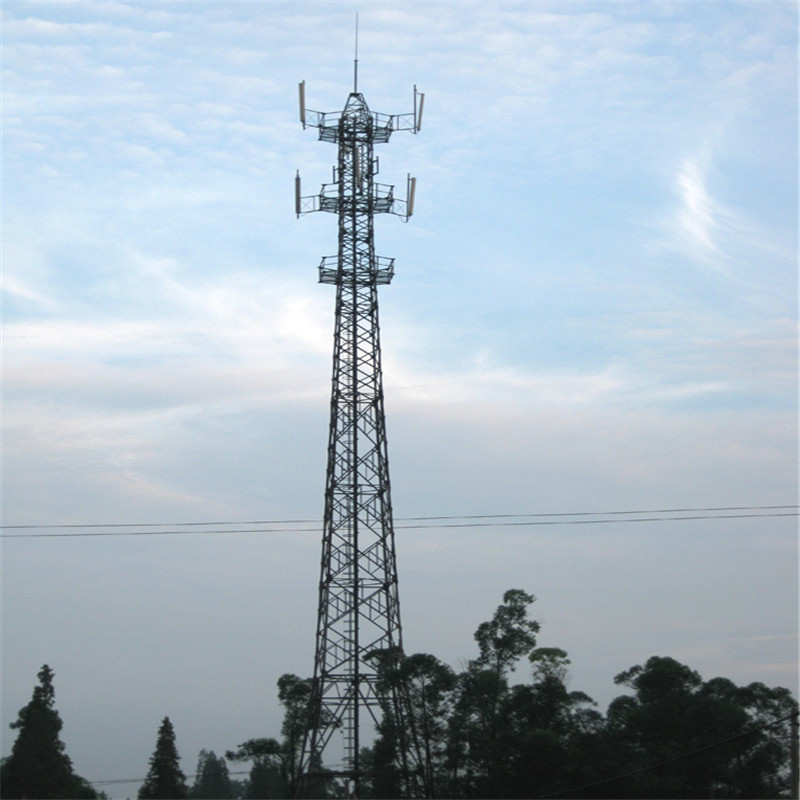

Microwave Radio Antenna Lattice Tower Angle Steel Mast 60m 1

                                              50m tubular steel lattice tower with 2 work platforms



Category of Galvanized Steel Communication Towers and Masts



1, Four legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

2, Thress legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

3, Bipod and Tripod: steel tube as main post and angle plates as diagonal supports

4, Mono pole

5, Ground field towers

6, Rooftop towers



Importance Notice:



1, Can I customize the towers, poles or other steel structures?



Yes, we can fabricate the towers, poles, building structures and other related products according to your designs, drawings, specifications and requirements.



2, What's your payment terms?



T/T or irrevocable documentary L/C  at sight is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.



4, Can you guarantee the quality?



Yes. The design lifespan of our towers and poles is 50 years



5, Are you exporting to other countries and regions?



Yes, we have exported to many other countries and regions such as USA, Brazil, Chile, Saudi Arabia, Malaysia, Philippines, Macau and many more.



6, What is your delivery time?



20-60 days, depending on the order quantity.



7, How many is the MOQ?



1 set.



8, Where is your factory located?



Tanbu Town, Huadu District, Guangzhou City which is the 3rd largest city in China and the largest city in Southern China, near by Hongkong, Macau and Shenzhen.
