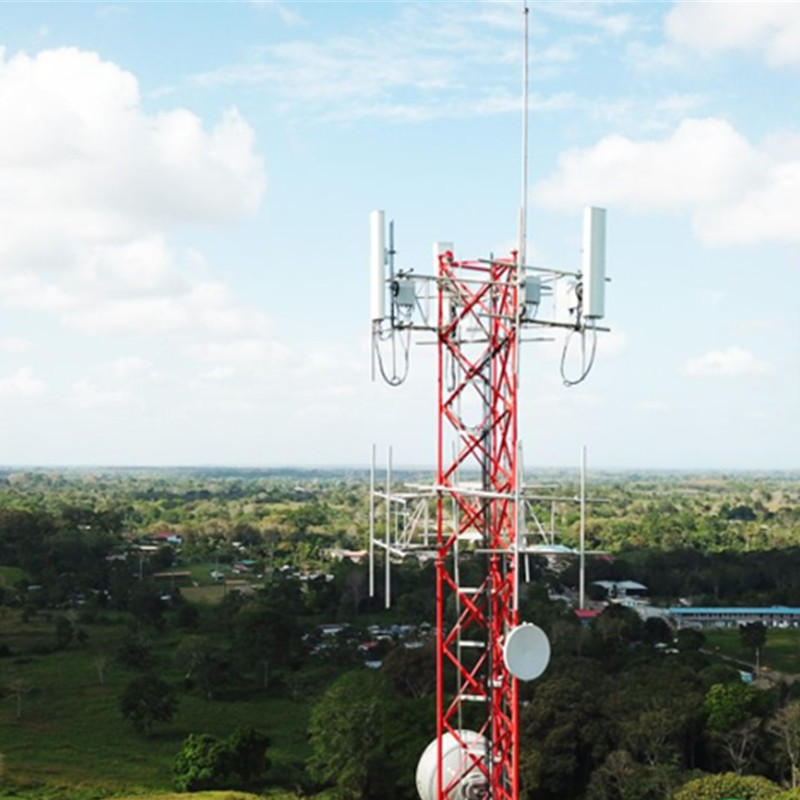

Mobile Phone GSM Telecom Steel Tower Q355 355MPa Yield Strength
Place of Origin | Guangzhou, China |
---|---|
Brand Name | GUANGXIN |
Certification | ISO9001 |
Model Number | GX-3506 |
Minimum Order Quantity | 1 set |
Price | USD1998-20000 per set |
Packaging Details | plastic bubble sheets or cloth package by bundle |
Delivery Time | 20-30 days |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Guangxin Factory Mobile Phone GSM Telecom Steel Tower Galvanized | Material | Weldable Structural Angle Steel Plates Or Pipes |
---|---|---|---|
Surface Finish | Hot Dip Galvanization | Height | 30m To 100m Or Customized Height |
Material Grade | GB Q235, Q345, Q355 Or Specified Grade | Yield Strength | 235~355MPa |
Galvanized Thickness | 65~85 Microns | Design | 1-5 Platforms With Mounting Brackets |
Wind Load | 0.36-1.0kN/sqm | Color | Grey/Green/Blue/Red/White/Red |
High Light | Mobile Phone GSM Telecom Steel Tower,Q355 Telecom Steel Tower,355MPa Yield Strength Telecom Steel Tower |
Guangxin Factory Mobile Phone GSM Telecom Steel Tower Galvanized
3 or 4 Legged Self-Supporting Galvanized Steel Communication Antenna Lattice Tower
Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.
4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
Specifications of 4 Legged Angular Steel Lattice Tower
Material | Angle steel plates, flat steel plate, bolts and nuts |
Steel Type | Weldable low carbon structural steel |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Surface Finish | Hot dip galvanization |
Galvanized layer | T≥65μm |
Height | 20m to 100m, customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Lifespan | 20-50 years |
Warranty | 3 years |
Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
70m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets
The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.
We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.
Guangxin brand, make for the world. Welcome to visit us and work together with us to make a better future.
