50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load

  • 50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load
  • 50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load
  • 50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load
  • 50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load
  • 50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number APT-026
Minimum Order Quantity 1 set
Price USD20000 per set
Packaging Details wooden pallet and cartons
Delivery Time 20-25 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Camouflaged Telecom Antenna Tower Material Galvanized Steel Trunk, Plastic Fiber Leaf
Height 10-50m Type Monopole Tower
Wind Load 0.35-0.85kN/sqm Applications Camouflaged Communication Antenna Station, Landscaping
High Light

50m Height Camouflaged Cell Towers

,

Monopole Camouflaged Cell Towers

,

0.35kN/Sqm Wind Load Camouflaged Cell Towers
Leave a Message
Product Description

35m Camouflaged Communication Antenna Tower Artificial Pine Tree made from Galvanized steel pole



35m Artificial Pine Tree Camouflaged Telecom Antenna Tower and self-support galvanized steel pole



Custom Artificial Pine Tree for  landscape decoration and camouflaged communication Antenna Tower

Lifelike Artificial Trees made from galvanized steel pipes with bionic fiber plastic leaves and polymer  resin cortex, equipped with telecommunication antennas for communication signal transmission.



Material galvanized seel pipes, plates, epoxy bionic cortex, fiberglass leaves and branches
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 10m to 20m, customized to requests
Design self-supporting or free standing monopole tower
Structure 3 to 9 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, mounting brackets, ladder steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations



Descriptions



Trunk: Galvanized steel pipe/tube with custom diameter and height

Cortex of trunk: fiberglass resin bionic cortex

Branch: Galvanized steel rectangular or round tube with plastic cover

Leaf:  weather resistant plastic with steel wire bone

Height: 5m to 50m or customized to requests

Width of leaf: 100-150cm or customized to requests.

Length of branches: 3.2m, 3.6m, 4m or customized to requests.





AFQ



Can I customize the towers, poles or steel structures?
Yes, we can fabricate the towers, poles, gantry frames or other related products according to your drawings, specifications and requirements.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.

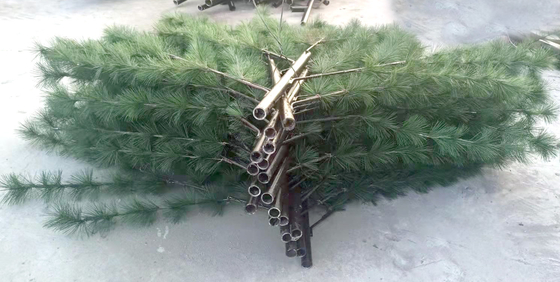

Galvanized steel pipe for making artificial pine tree trunk

50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load 0

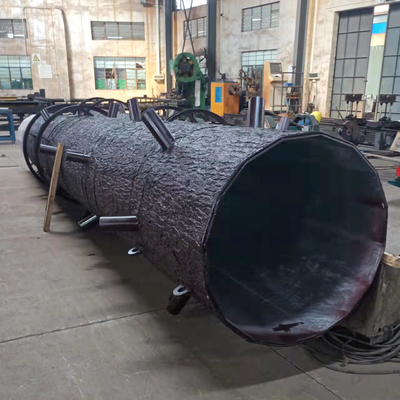

Galvanized Steel Pipe Artificial pine tree trunk with epoxy bionic cortex finish



50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load 1

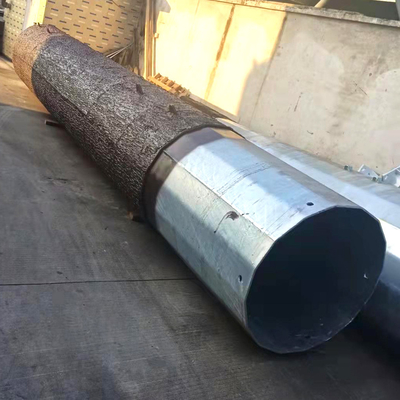

Details of artificial pine tree: leaves/branches, trunk and frame

50m Height Camouflaged Cell Towers Monopole Type 0.35kN/Sqm Wind Load 2
