30m Telescopic Guyed Wire Towers Q345 Steel Tv Broadcast Towers
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GWT-004 |
| Minimum Order Quantity | 1 set |
| Price | USD1998-9998 per set |
| Packaging Details | bulk |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Telescopic Guyed Wire Towers | Material | Weldable Structural Angle Steel Plates And Pipes Or Round Bars |
|---|---|---|---|
| Height | 15m-45m | Design | Telescopic Mast Guyed Wire Tower |
| Wind Load | 0.35-0.85kN/sqm | Applications | Communication Telecom Antenna Transmission |
| High Light | 30m Guyed Wire Towers,30m Tv Broadcast Towers,15m Guyed Wire Towers |
||
Product Description

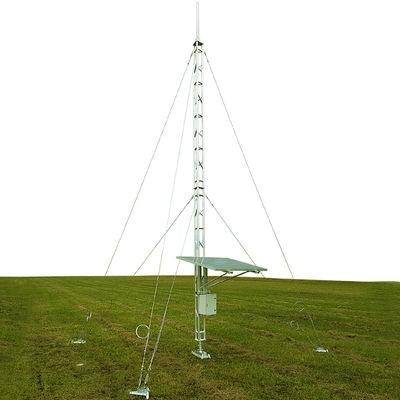

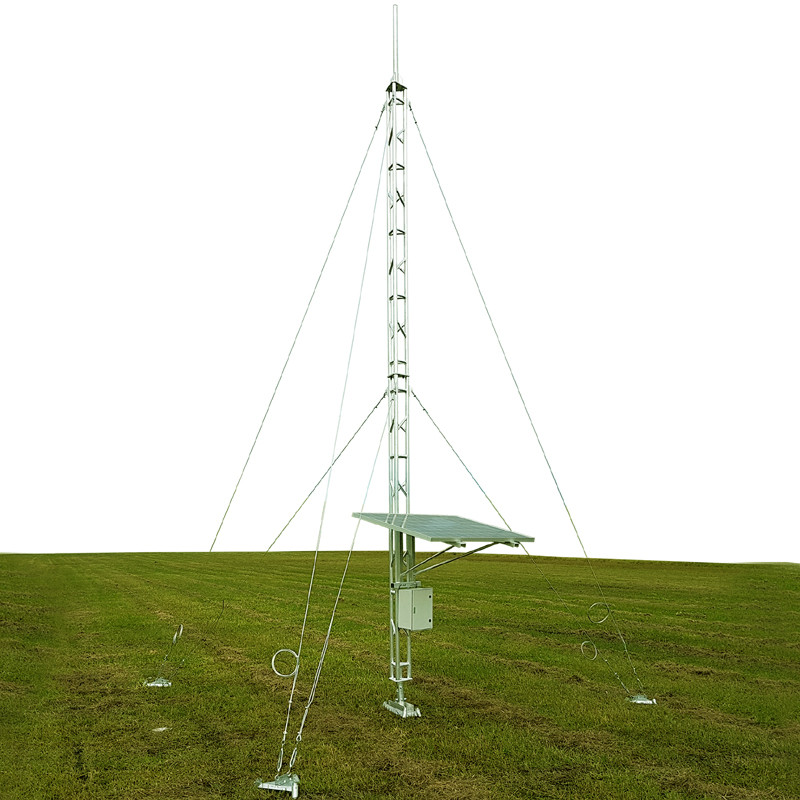

30m Telescopic Guyed Wire Towers Q345 Steel Tv Broadcast Towers
30m Telescopic Guyed Wire Communication Antenna Station Tower
Specifications
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel tv broadcast towers |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations |
Features
* Telescopic mast tower to match required heights.
* Custom designs and precise fabrication.
* Popular for Movable mobile communication transmission atenna station
* 3 or 4 legs lattice tower designs, flexible height from 10m to 70m.
* Motorized tower, easy for installation, transportation and moving.
