Self Sopprting Lattice Steel Towers Q345 100m Three Legged Tower

  • Self Sopprting Lattice Steel Towers Q345 100m Three Legged Tower
  • Self Sopprting Lattice Steel Towers Q345 100m Three Legged Tower
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-036
Minimum Order Quantity 1 set
Price USD1998-9998 per piece
Packaging Details plastic bubble sheets and pearl wool sheets
Delivery Time 20-30days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Three Legged Tower Material Wledable Structural Carbon Steel Pipes And Plates
Design Self-supporting Steel Lattice Tower Plateforms 1-5 Platforms With Mounting Brackets
Wind Speed 30-60m/s Applications GSM, 2G, 3G, 4G, 5G Macrocell And Microcell Communication Stations
High Light

100m Lattice Steel Towers

,

Q345 Lattice Steel Towers

,

100m Three Legged Tower
Leave a Message
Product Description

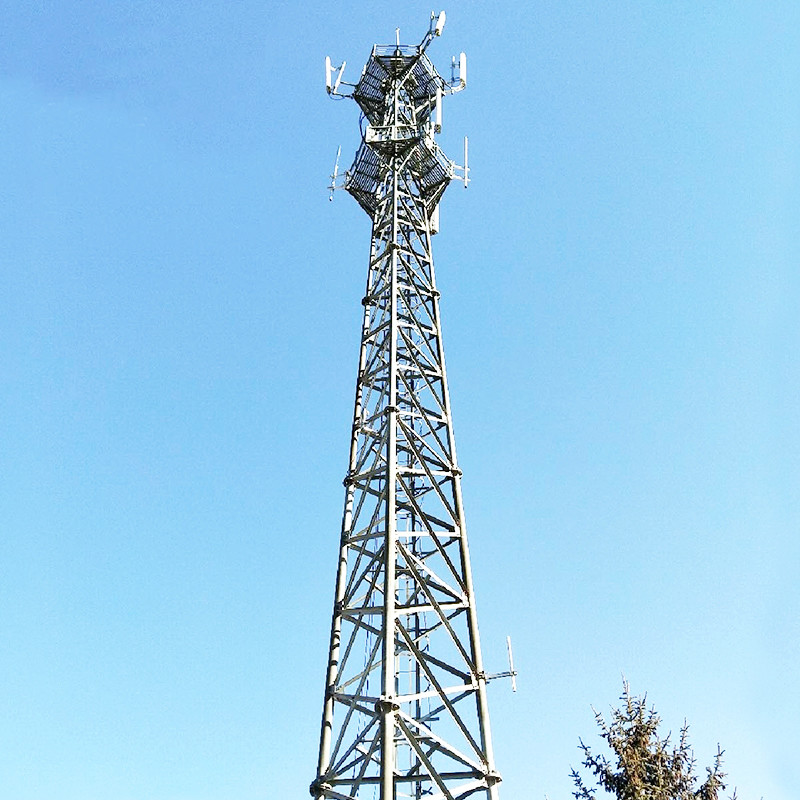

Self Sopprting Lattice Steel Towers Q345 100m Three Legged Tower

Self-sopprting Lattice Tower for Mounting Mobile Communication Transmission Facilities





3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.



Specifications of 3 Legged Tubular Steel Lattice Tower



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations



So the most popular 3 legged steel lattice tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.





The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
