3 Legs Galvanized Lattice Transmission Tower Q235 Telecommunications Towers

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-41
Minimum Order Quantity 1000kgs
Price USD1.68/kg
Packaging Details pallets
Delivery Time 20-30 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 500kgs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Lattice Transmission Tower Grade Q235B, Q345B, Q355B, ASTM-A36, ASTM A-153 Etc.
Design 4 Legged Self-supporting Steel Tower Height 25m, 30m, 35m, 40m, 45m, 50m, 55m, 60-80m Etc.
Surface Treatment Hot Dip Galvanization And Painting (optional) Platforms 1-4 Platforms Or Without Platform
Mounting Brackets 3-24 Brackets For Antennas, RRUs, Microwaves Wind Speed 100-280km/h (3s Gust)
Wind Load 0.35-1.0kN/sqm Applications FM Radio, GSM 3G, 4G, 5G Communication Transmission Stations
High Light

Q235 Lattice Transmission Tower

,

40m Telecommunications Towers

,

Q235 Telecommunications Towers

Leave a Message
Product Description

3 Legs Galvanized Lattice Transmission Tower Q235 Telecommunications Towers



3-leg Self-supporting Galvanized Tubular Steel Lattice Tower for Mounting Communication Antennas & Microwaves



Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts Telecommunications Towers
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Descriptions



Self-supporting steel communication antenna tower

3 legged tubular lattice tower made up of galvanized steel pipes and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

25m to 80m high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.

All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.

The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.

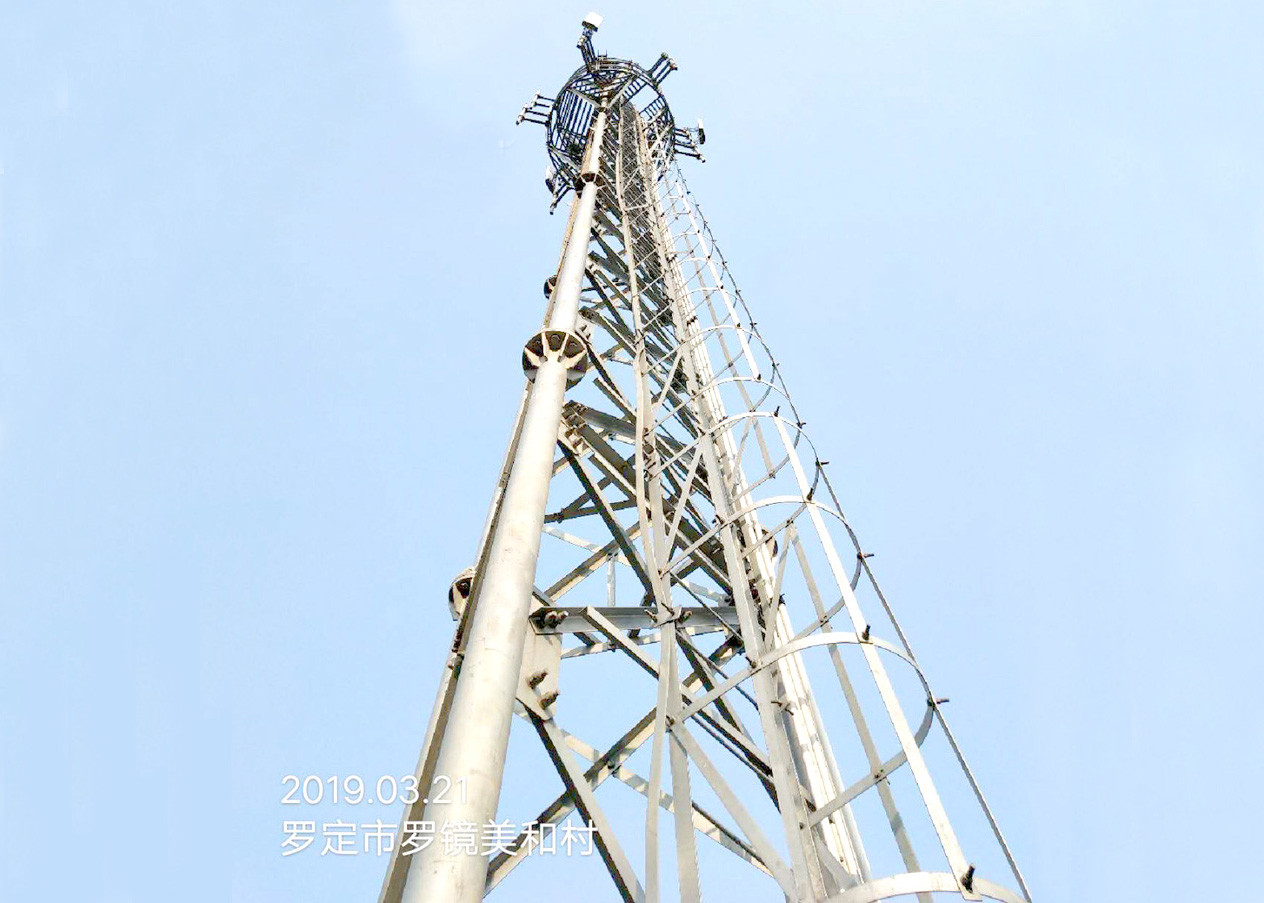

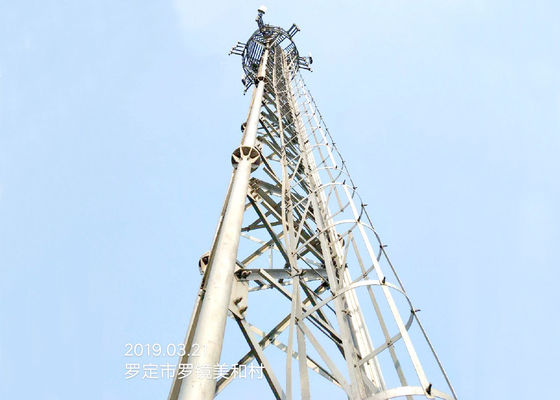

3 Legs Galvanized Lattice Transmission Tower Q235 Telecommunications Towers 0

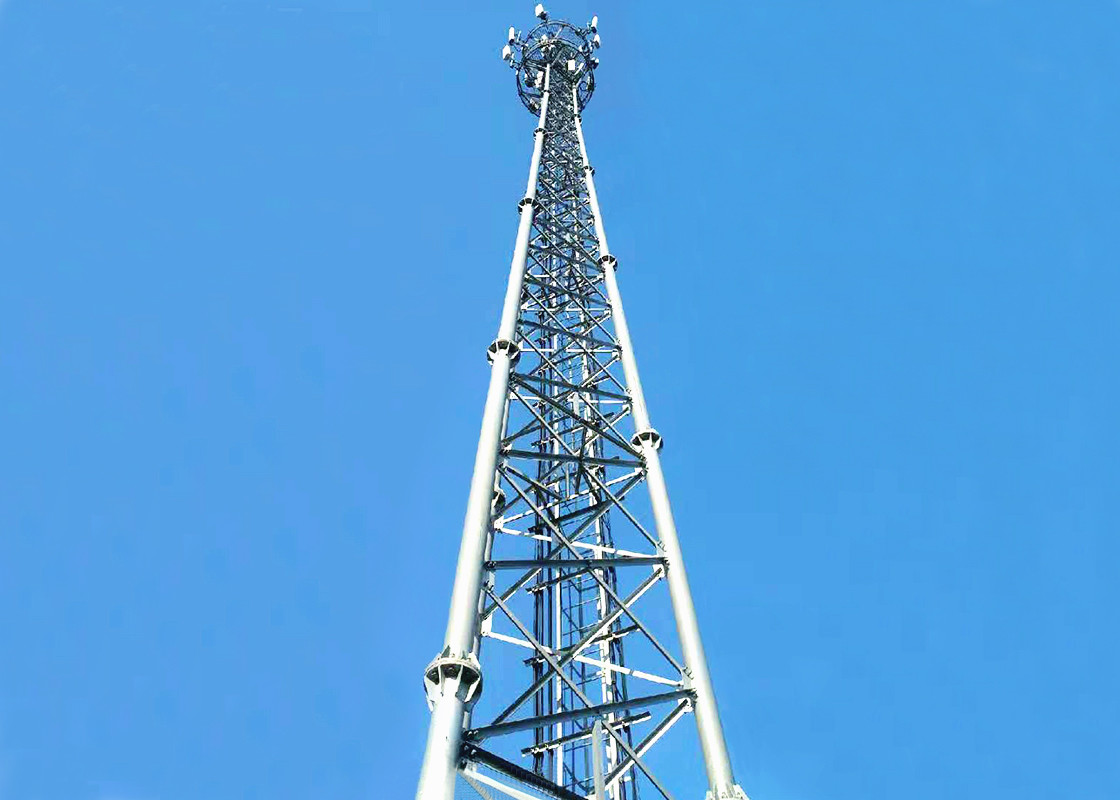

50m Self-supporting Tubular Steel Tower

Specifications:



Height: 25m to 80m, customized to customer's requirements

Material: galvanized steel pipes (for tower legs) and angle steel plates (for bracings)

Steel grade: Q345B or Q355B for tower legs, Q235B for bracings, grade 4.6 or 8.8 for bolts and nuts.

Wind speed (3 seconds gust): 100-290km/h

Wind load: 350-1000N/sqm





            Rooftop Lattice Tower





Similar Products



3 Legs Galvanized Lattice Transmission Tower Q235 Telecommunications Towers 1

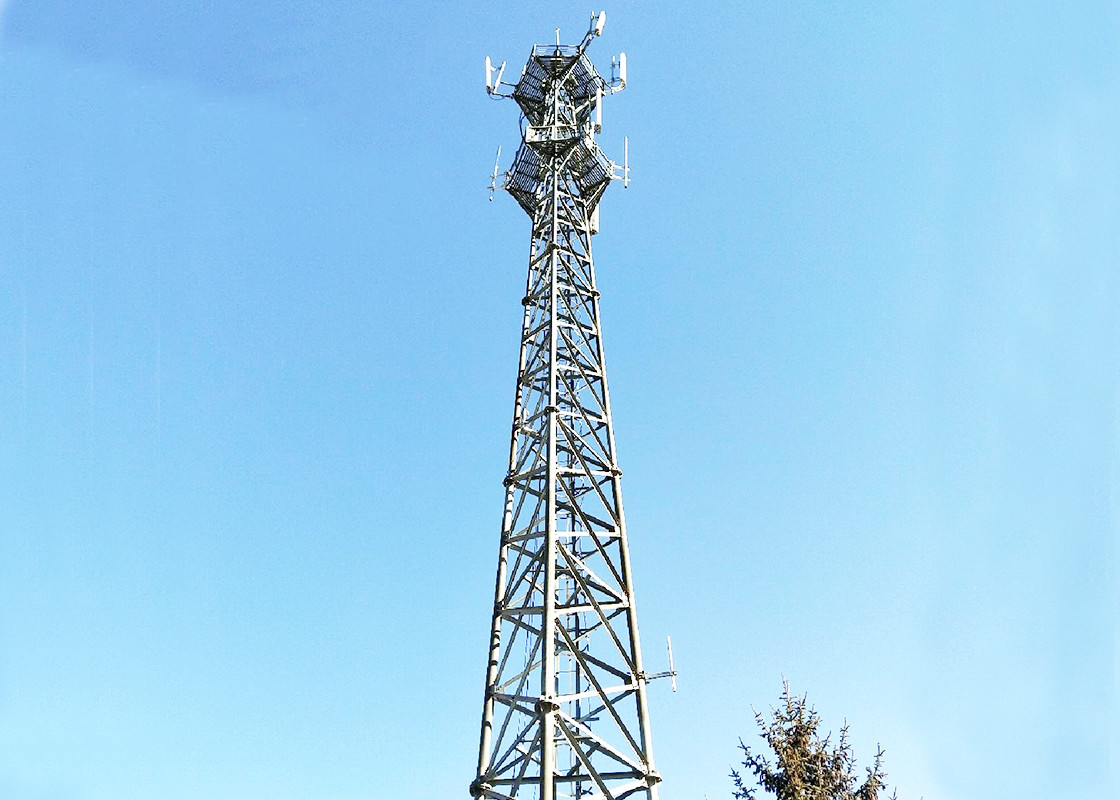

     4 legged angular steel tower      Rooftop Tripod Steel Tower         Self-supporting Monopole





FAQ:



1, Where is your factory?
Our factory is located in Huadu District of Guangzhou City, about 35km away from Baiyun Airport.

2, What can you supply?
We're professional manufacturer of steel frames for civil infrastructures and frameworks, especially telecommunications towers, power grid towers, street light poles, portal gantry frames for traffic lights, guideboards, CCTV cameras, LED display screens, advertising billboards, factory plants etc. We can produce the steel works according to your designs and drawings.

3, How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.

4, What’s your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.

5, Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

8, Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.
