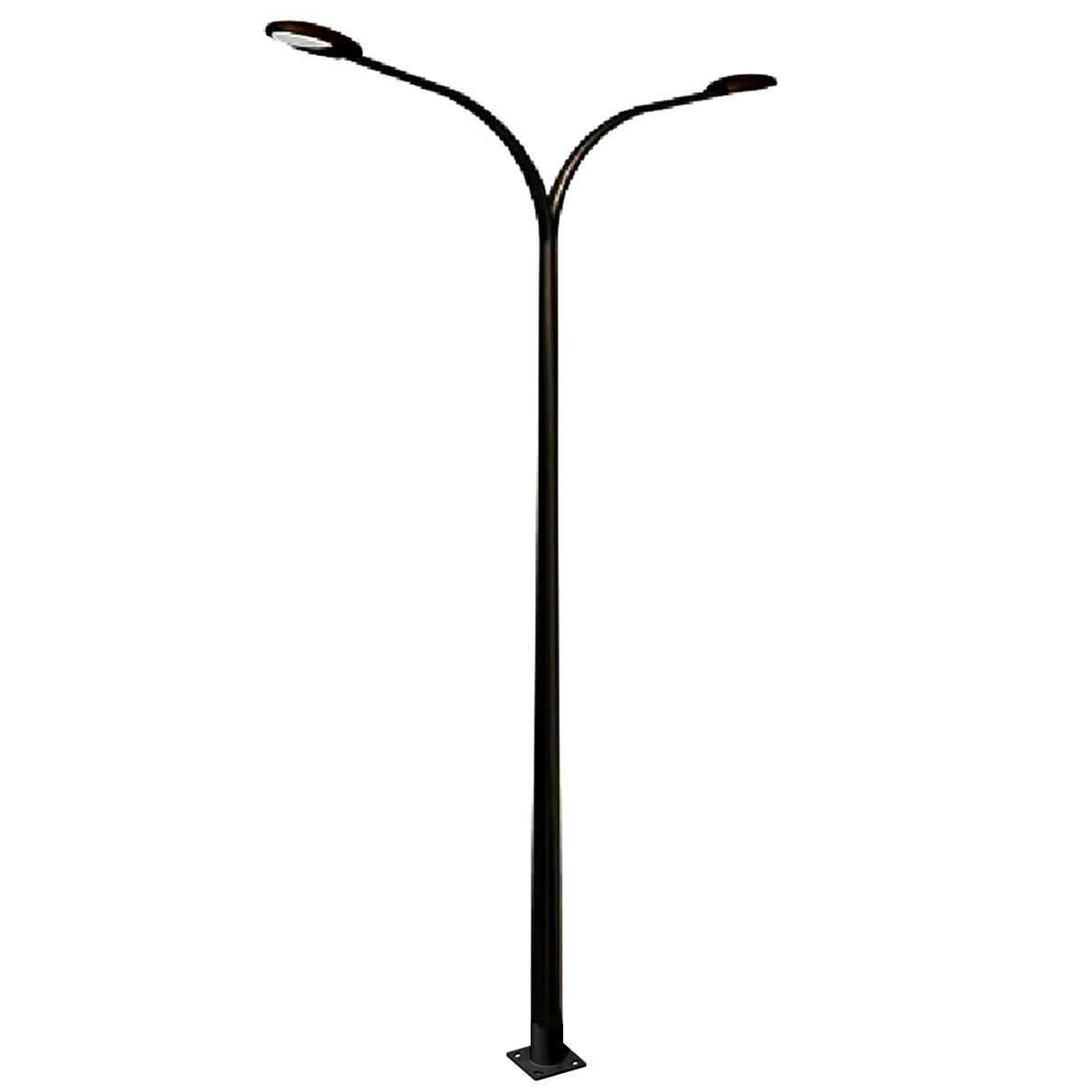

Q235B Dual Arm Brackets Galvanized Steel Light Pole 18m 20 Years Lifespan

Place of Origin China
Certification ISO9001
Model Number SSP-025
Minimum Order Quantity 10 pieces
Price USD68-2018 per piece
Packaging Details plastic bubble sheets, bundles
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 pieces monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Descriptions Galvanized Steel Street Light Pole For Roadway Or Highway Lighting Material Carbon Structural Mild Steel
Anti-corrosion Hot Dip Galvanization Height 3-18m
Shape Conical, Cylindrical, Round, Square Applications Street Roadway Lighting, Highway Lighting, Garden Lighting, Public Lighting
High Light

18m Galvanized Steel Light Pole


Q235B Galvanized Steel Light Pole

Leave a Message
Product Description

Dual Arm Brackets Galvanized Steel Light Pole 6m to 18m for Street Roadway or Highway Lighting

6m to 18m Galvanized Steel Light Pole With Dual Arm Brackets for Street Roadway or Highway Lighting


Founded in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. has become one of leading suppliers of steel poles and towers, even though the factory was started producing telecom towers as beginning, now its business range has expended and included not only communications towers but also electrical pylons, street light poles, high mast stadium lighting columns, smart lighting poles, traffic cantilevers and gantry frames, artificial tress for camouflaged antennas mounting or landscaping etc. All these produces can be customized according to customer’s designs, drawings, requirements, specifications and purposes or applications.


Features of Galvanized Steel Street Light Poles


* Aesthetic design arm brackets for special decoration.

* Q235B or Q355B or equivalent steel grade good quality shaft.

* Q355B or equivalent steel grade good quality base plate.

* Street light pole with 6m to 18m mounting heights.

* Stiffened hand hole assembly.

* Hot dip galvanized finish for anti-corrosion and weather resistance.

* Color powder coating for custom decoation.

* 4 or more anchorages for stable erection.

* More than 20 years lifespan.



Q235B Dual Arm Brackets Galvanized Steel Light Pole 18m 20 Years Lifespan 0

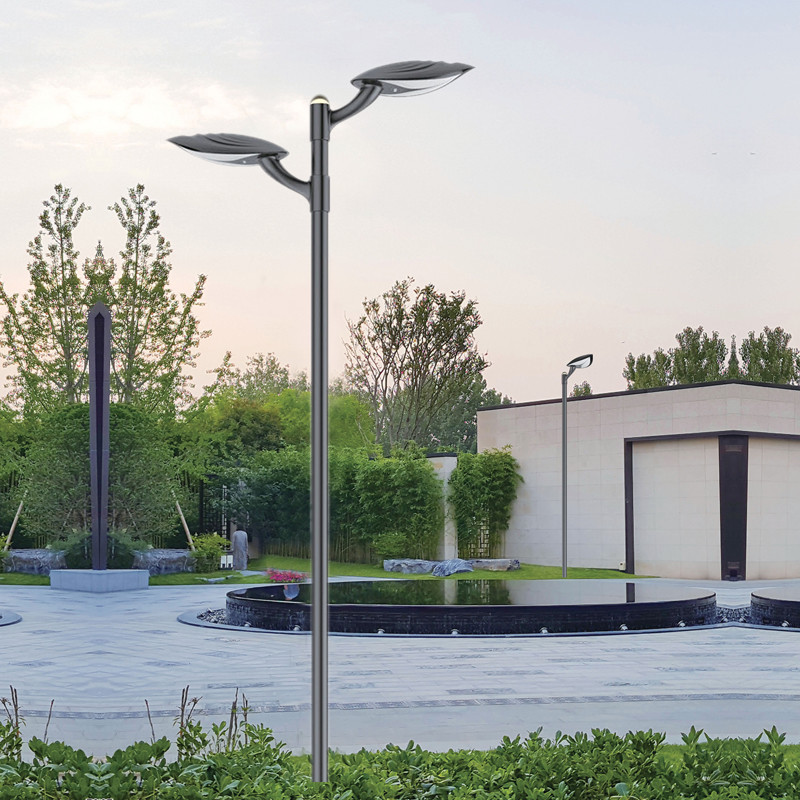

                                                                    Garden Light Pole



Designs and Styles of Street Lighting Poles


1, Typical design and style: round tapered steel pole, or called conical tube

This is the most popular light pole design and style, it is generally swaged and formed from 3mm or thicker good quality structural steel plate by bending machine and welded by submerge arc welding machine. For the height of pole not more than 12m, it is made by one-piece pole welded with a base plate for anchoring with concrete foundation, it can also be installed by planting into ground. The arm brackets for mounting fixtures are generally independently welded and made in order for easy transportation.


2,Round straight pole or called cylindrical pole

It is generally made from seamless steel pipe or aluminum tube or welded pipe. This kind of light poles is generally for low mounted lighting, which height is not more than 6m, and is generally used in community or residential yards or gardens. The mounting arm brackets or kits are aesthetically designed to give good decoration to the community or garden.


3, Square straight pole

It is similar with the round pole in applications and purposes. The smart pole is also designed in straight pole or combined with square bottom section and round straight or conical top section, the bottom section can be used as electrical cabinet.


4, Arm brackets are designed for not only mounting lamps but also decoration purpose, so there are wide range of designs according to design requirements.

Q235B Dual Arm Brackets Galvanized Steel Light Pole 18m 20 Years Lifespan 1

       Galvanized Steel Smart Street Light Pole for Multi-functional City Management



Types of Steel Street Light Poles


1, One or Double Arms Street light poles

2, Multiple arms street light poles

3, Galvanized steel light pole with Round mounting kit for mounting many lamps

4, Smart light pole for mounting telecom antennas or WIFI hotspot, street lights, CCTV cameras, LED screen etc.

5, Solar LED Street light poles.

6, Traffic signal light poles


Specifications of Hot Dip Galvanized Steel Street Light Poles


Material Low-alloy structural carbon Steel, formed from steel plate or seamless steel tube
Grade Q235B or Q355B or equivalents
Delivery condition Hot rolled steel plate, swaged and welded tube or seamless pipe
Surface finish Hot dip galvanization for primer anti-corrosion protection
Extra Protection Color polyester power coating or PVDF coating for decoration
Zinc coating 65um to 100um
Powder coating 50um to 85um
Wall thickness 3mm to 12mm, depending on pole height and required strength
Height of Pole 3m to 18m or other customized heights
Wind speed 10-50m/s
Mounting Arms 1 or 2 or multiple arm brackets or round mounting kit
Installation method Plantation in to ground or fixed via base plate and anchor bolts on concrete foundation
Lifespan 20-50 years
Warranty 2 years
Lead time 20-60 days, depending on order quantity

Q235B Dual Arm Brackets Galvanized Steel Light Pole 18m 20 Years Lifespan 2

With tapered or straight pole designs and heights of up to 60 feet (18 meters), the street light poles are customized and specified according to the design requirements and lighting purposes and even landscaping decoration. Many of our light poles and brackets also accommodate single or multiple luminaries mounting, giving you greater flexibility in your outdoor lighting design. Choose from sleek and stylish poles for decorative post top lighting fixtures to street lighting poles that have what it takes to provide illumination for roadways or high ways over many years.


Applications of Mild Steel Light Poles


1, Street roadway lighting

2, Highway lighting

3, Garden lighting

4, Public square lighting

5, Residential community lighting.

6, Commercial area lighting etc.


Questions and Answers:


1, Are you factory or trading company?

    We're professional manufacturer of street light poles, telecom towers and pylons with more than 13 years of manufacturing experiences.

2, Where is your factory located?

     Our factory is located in Huadu District, Guangzhou City, China.

3, Where are you shipping from?

4, We can ship from Guangzhou or Shenzhen.

5, How long is your lead time?

    20 days for small orders, 25-30 days for medium orders, 30-60 days for large orders, depending order quantity.

6, How long is your product lifespan?

    At least 20 years.

7, How long is your warranty?

    3 years

8, What's your payment terms?

    Generally T/T payment method, 30% down payment and full payming before shipping. L/C is also accepted for large orders.
