35m Height Communication Antenna Tower 80kmph DIN933 CO2 Shielded
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Model Number | GX-5663G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Product Name | Communication Antenna Tower |
|---|---|---|---|
| Steel Structure | HDG Lattice Steel Tower | Material | EN10025: S355JR, S355J0,S355J2 |
| Braces | GB/T 700:Q235B | Tower Type | Self Supporting Angular / Tubular |
| Design Wind Speed | 35/210kph | Design Of Pole | Against Earthquake Of 8 Grade |
| Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed | Connection Type | Parts For Connection Or Installation Will Be Provided |
| Impact Strength KV (J) | 27(20°C)---Q345B(S355JR) | Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
| Galvanization Standard Of Steel Sections | ISO 1461 Or ASTM A123 | Yield Strength | 355 MPa |
| Bolts | DIN7990, DIN931, DIN933 | ||
| High Light | 35m Height Communication Antenna Tower,CO2 Shielded Communication Antenna Tower |
||
Product Description

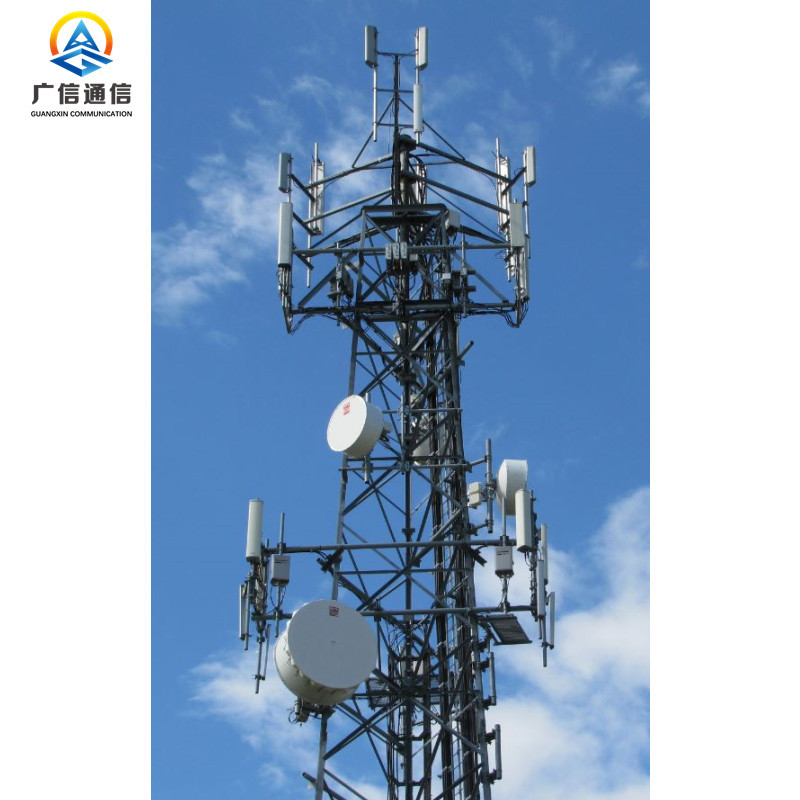

35m Height Communication Antenna Tower 80kmph
Telecommunication mobile tower classification:
1. Classification by material: angle steel towers, steel pipe towers.
2. Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;
3. Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2
4. According to location: ground tower, roof tower;
5. The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree
communication towers, and landscape communication towers.
6. Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project
Specification of Communication Antenna Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
FAQ
1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.
2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.
3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.
4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.
5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
6. Which payment way do you accept:
We accept the payment by T/T or L/C.
7. Will you supply the shop drawing to me for confirmation before production?
Yes, absolutely.
