Arc Welding 50m Telecom Steel Tower Wind Pressure Up To 220km/H

  • Arc Welding 50m Telecom Steel Tower Wind Pressure Up To 220km/H
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5664G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 50m Telecommunication Tower Wind Pressure Up To 220km/h
Steel Structure HDG Lattice Steel Tower Material EN10025: S355JR, S355J0,S355J2
Braces GB/T 700:Q235B Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Design Wind Speed 35/210kph Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123
Design Of Pole Against Earthquake Of 8 Grade
High Light

50m Telecom Steel Tower

,

Arc Welding Telecom Steel Tower
Leave a Message
Product Description

50m Telecommunication Tower Wind Pressure Up to 220km/h





50m Telecommunication Tower classification:

Tubular Steel solid tube is slim for low visual impact and has high load carrying capabilities. Hollow tube is the strongest and lightest solution used for the tallest towers in the china.Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution.



What is the Communication lattice tower? Telecommunication Tower Product Description:

Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.



Specification of 50m Telecommunication Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

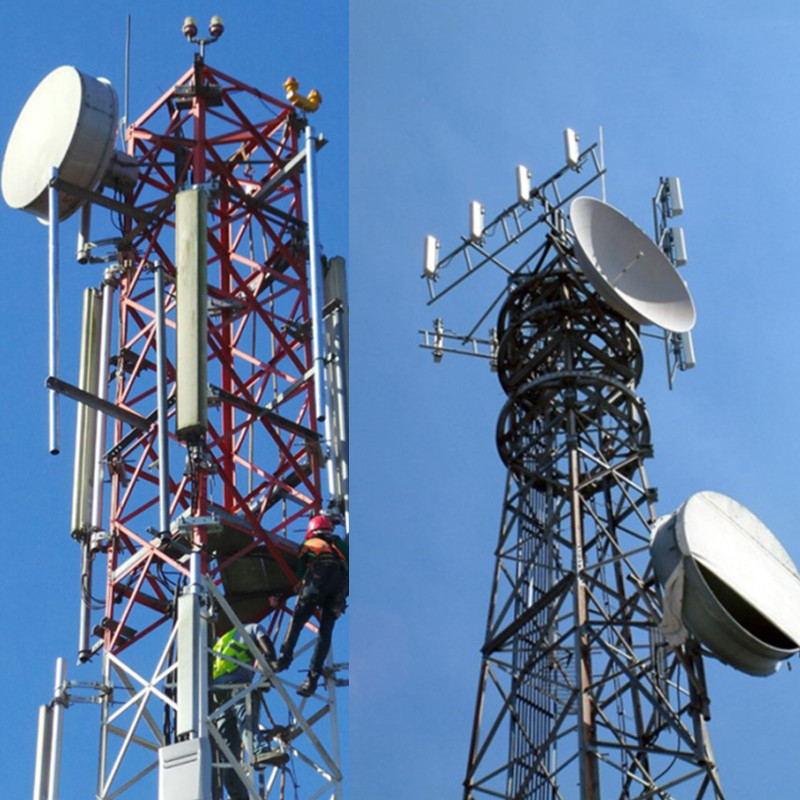

Arc Welding 50m Telecom Steel Tower Wind Pressure Up To 220km/H 0



Customer Support Services

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.



  • We undertake the design, manufacturing and construction of all kinds of steel structure.



  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.



  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.



FAQ



1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
