40m Lattice Microwave Communication Tower Antenna Wifi 50KM

  • 40m Lattice Microwave Communication Tower Antenna Wifi 50KM
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5660G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 40m Lattice Microwave Communication Tower Antenna Wifi 50KM
Steel Structure HDG Steel Tower Material Steel Q355B(GB/T 1591) Or Q235B
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Tower Type Self Supporting Angular / Tubular
Connection Type Parts For Connection Or Installation Will Be Provided Design Wind Speed 35/210kph
Design Of Pole Against Earthquake Of 8 Grade Tension Strength (Mpa) 360~510
Warranty 10 Years
High Light

Lattice Microwave Communication Tower

,

40m Microwave Communication Tower

,

Wifi 50KM Microwave Communication Tower
Leave a Message
Product Description

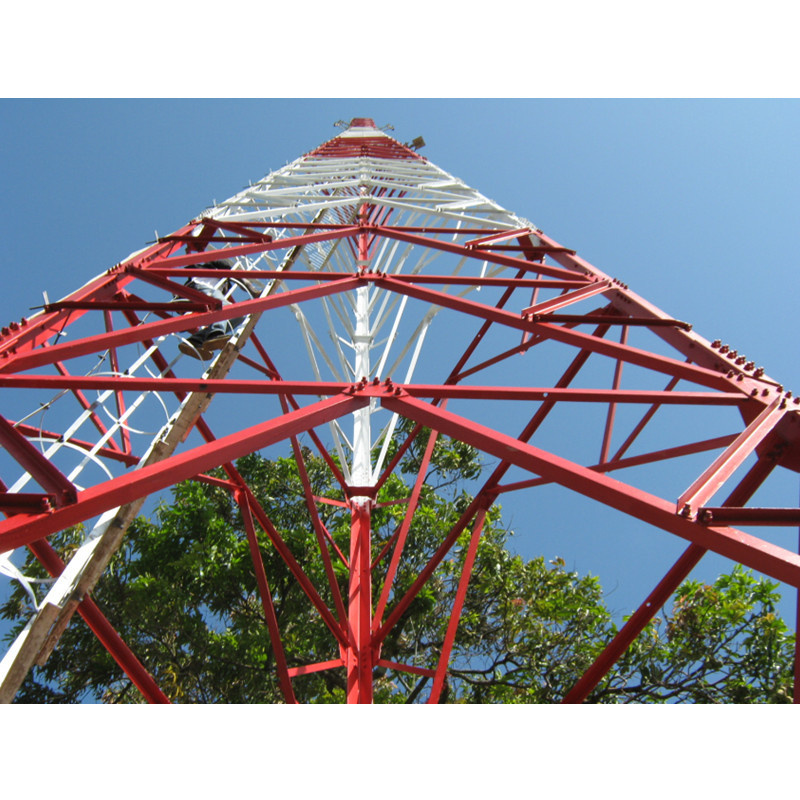

40m Lattice Microwave Communication Tower Antenna Wifi 50KM





Specification of microwave communication tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Angle steel tower is made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers



Lattice Towers sites One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution. We offer full project management services from site acquisition & planning permission to foundations and installation. Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.
