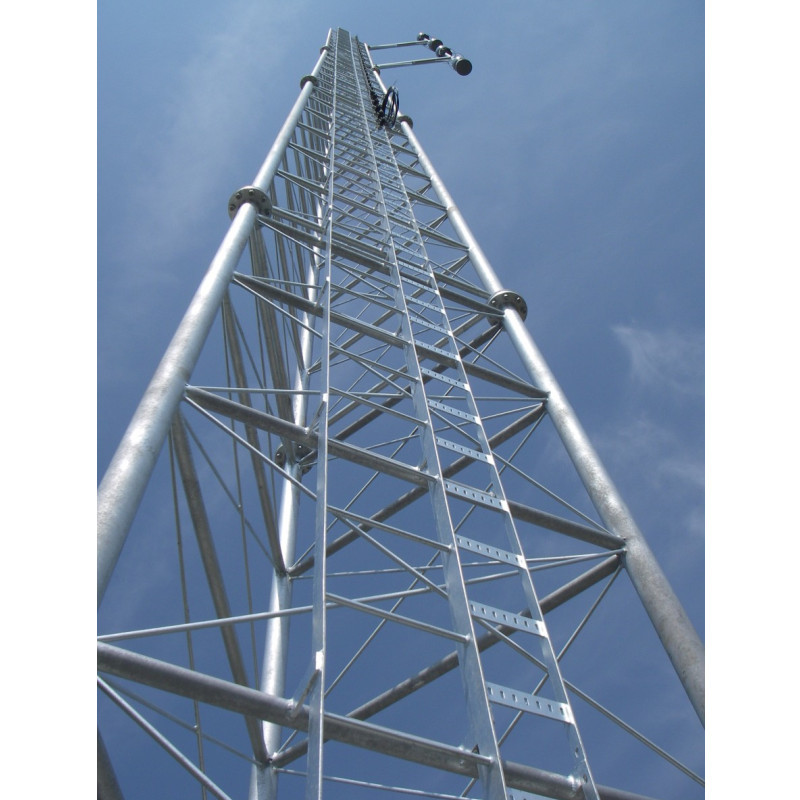

30m Tubular Lattice Communication Tower With Cable Tray Climb Ladder

Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5656G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 30m Tubular Lattice Tower With Cable Tray / Climb Ladder Steel Structure HDG Lattice Steel Tower
Material Steel Q355B(GB/T 1591) Hot-dip Galvanization ISO 1461 2009, ASTM A123
Tension Strength (Mpa) 360~510 Tower Type Self Supporting Angular / Tubular
Connection Type Parts For Connection Or Installation Will Be Provided Design Wind Speed 35/210kph
Design Of Pole Against Earthquake Of 8 Grade Warranty 10 Years
Tower Lifespan 50 Years
High Light

Tubular Lattice Communication Tower


30m Communication Tower


Telecom Steel Tower With Climb Ladder

Leave a Message
Product Description

30m Tubular Lattice Communication Tower with Cable Tray / Climb Ladder



Communication tower technical indicators:


a) Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;


b) Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2;


c) Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project;


d) Communication tower flexion angle: less than 1 degree;


e) Center tilt: The verticality of the tower shall not be greater than 1/1500 of the height of the steel Lattice tower ;


f) Seismic strength: ≥8°;


g) The period of preservation: not less than 30 years in the local environment;


h) Galvanizing requirements: General thickness greater than 86 microns, uniform thickness, smooth surface. The specific situation is determined according to the specific project;


i) Material: Q345 Q235


j) Source of steel: Baosteel / Shougang / Handan Iron and Steel



Specification of lattice tower:


Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Communication tower product classification:


a) Classification by material: angle steel towers, steel pipe towers.


b) Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.


c) According to the support methods: self-standing towers, pull-line towers;


d) According to location: ground tower, roof tower;


e) The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers.
