GSM 3G 4G 5G Cellular Mobile Communication Tower 30m To 60m

  • GSM 3G 4G 5G Cellular Mobile Communication Tower 30m To 60m
  • GSM 3G 4G 5G Cellular Mobile Communication Tower 30m To 60m
Place of Origin Guangzhou
Certification ISO9001
Model Number GX-5621G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Hot-dip Galvanized Mobile Telecom Tower
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Tension Strength (Mpa) 360~510
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Pressure 0.3-1.2KN/M² Work Platform Height And Quantity Up To Clients
Connection Type Nuts & Bolts Service Life 50 Years
High Light

5G Cellular Mobile Communication Tower

,

60m Mobile Communication Tower

,

30m Lattice Steel Towers
Leave a Message
Product Description

GSM 3G 4G 5G Cellular Mobile Communication Tower 30m to 60m​



We're professional manufacturer of all kinds of communications towers and steel poles, including:



1, Free Standing galvanized steel 3-legged lattice tower, made from steel tubes or/and angular plates.

2, Self-support 4-legged lattice tower made from angle steel plates or/and tubes.

3, Guyed wire towers, square or triangle guyed towers.

4, Mono poles

5, Artificial tree monopole camouflaged towers.

6, Camouflaged monopole towers with fiberglass grille shroud on top for hiding antennas.

7, All kinds of lighting towers and street light poles.

Self supporting tower usually is 3-leg of 4-leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.



Basic Procedures of Building A GSM Telecom Tower



1, Site geologival investigation or survey to clasify terrain category and confirm it meets tower erection requirements

2, Design tower body and foundations

3, Test and specify the tower body and foundation by professional design and calculation software

4, Specify the tower and foundation dimensions and specifications of materials.

5, Prepare lofting and shop drawing of tower sections

6, Manufacture tower members according to the drawings and specifications.

7, Dig holes for the tower foundations and make a cement underlayer on the bottom

8, Make steel cage frames and anchorages for foundations

9, Make wooden molds for constructing concrete foundations

10, Set up grounding net with steel plates or rods around foundations.

11, Pour concrete and construct bottom blocks and pedestals

12, Dry and watering concrete foundations

13, Test the impact strength and make sure it meets the design specifications.

14, Fix tower footings to foundation pedestals and other tower members

15, Assemble tower sections and antenna brackets, ladder, rest and work platforms, lightning rod, grounding plates etc.

16, Set grouding of tower body and foundations, make sure at least 2 feet of tower must be connected with the ground net, lightning rod must be connected with grounding net through at least 2 foundations.

17, Test the straightness or verticality of tower

18, Complete if all specifications are confirmed.



Specification of Mobile Communication Tower:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






GSM 3G 4G 5G Cellular Mobile Communication Tower 30m To 60m 0

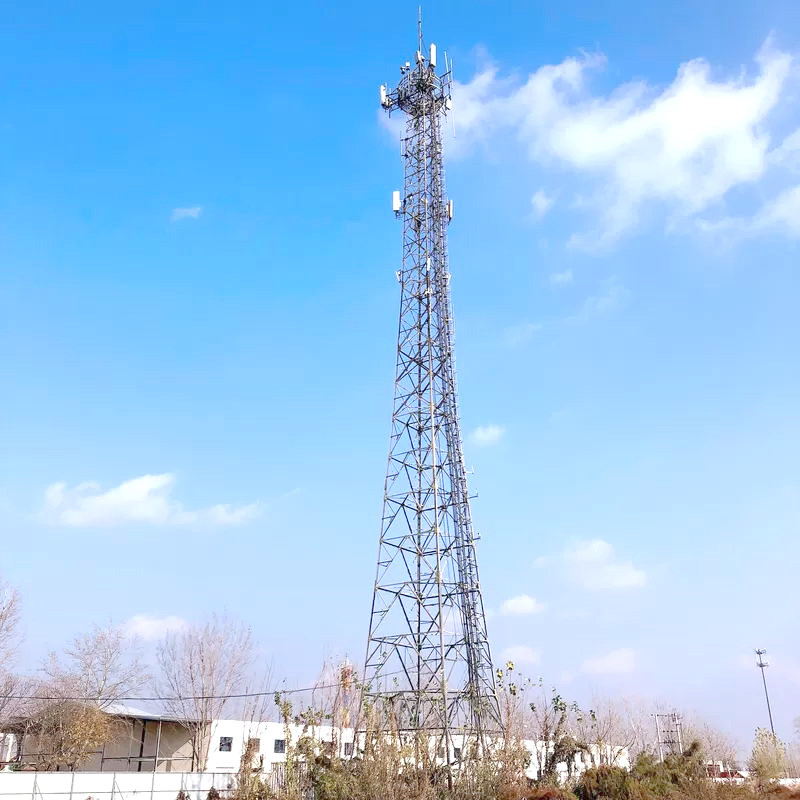

                       35m GSM Mobile Communication Tower with 2 work platforms



Applications of Steel Towers



1, GSM, 2G/4G/5G cellular Mobile communications antennas mounting and telecom signal transmission tower.

2, FM, AM, VHF radio transmission tower.

3, TV station tower

4, Electrical power transmission and distribution pylon

5, Millitary watch tower

6, Radar Microwave tower etc.
