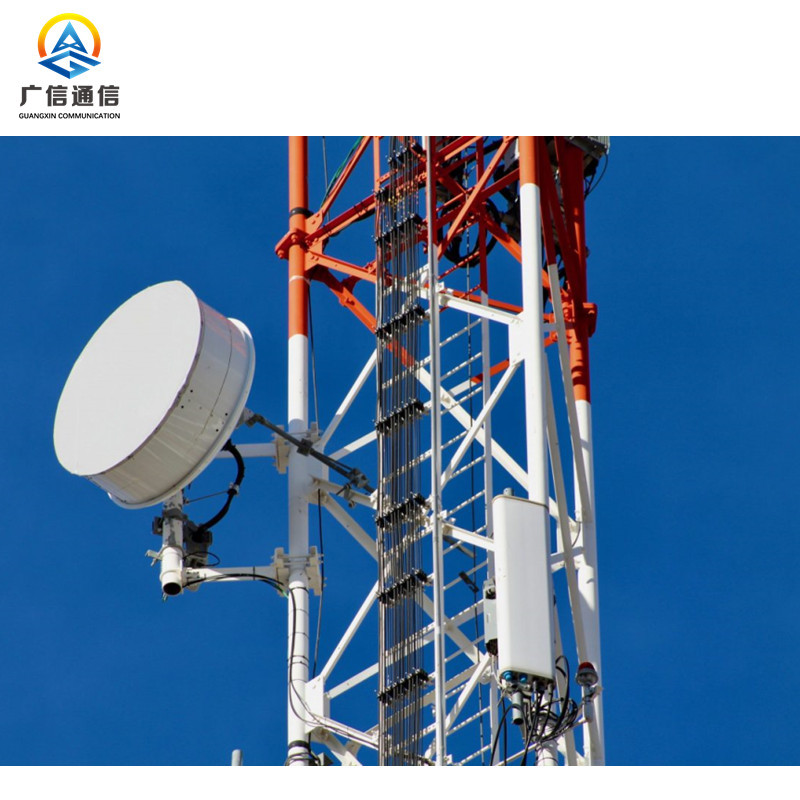

Telecom Antenna 3 / 4 Legged Angle Tower 30m Galvanized Self Supported

  • Telecom Antenna 3 / 4 Legged Angle Tower 30m Galvanized Self Supported
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5627G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 30m Galvanized Self Supported Communications Telecom Antenna 3legged/4legged Angle Tower Hot-dip Galvanization ISO 1461 2009, ASTM A123
Tension Strength (Mpa) 360~510 Design Wind Pressure 0.3-1.2KN/M²
Work Platform Height And Quantity Up To Clients Connection Type Nuts & Bolts
Place Of Original Guangzhou Supply Type Manufacturer
OEM/ODM Support
High Light

Self Supported Telecom Angle Tower

,

30m Galvanized Angle Tower

,

4 Legged Angle Tower
Leave a Message
Product Description

30m Galvanized Self Supported Communications Telecom Antenna 3legged/4legged Angle Tower







Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer requirements.



Self supporting tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.


Features:


1.Small coefficient of wind load, strong wind resistance.
2.Save land resource, convenient location.
Convenient transportation and installation.
