Communication Angle Steel Telecom Tower With Antenna Mounts

  • Communication Angle Steel Telecom Tower With Antenna Mounts
Place of Origin Guangzhou
Certification ISO9001
Model Number GX-5619G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Communication Angle Steel Telecom Tower With Antenna Mounts
Place Of Original Guangzhou Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Hot-dip Galvanization ISO 1461 2009, ASTM A123
Tension Strength (Mpa) 360~510 Supply Mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Design Loading As Per Requirement And Specification By Clients Worldwide. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
High Light

Communication Angle Steel Telecom Tower

,

Antenna Mount Angle Steel Telecom Tower

,

Angle Steel Telecom Tower
Leave a Message
Product Description

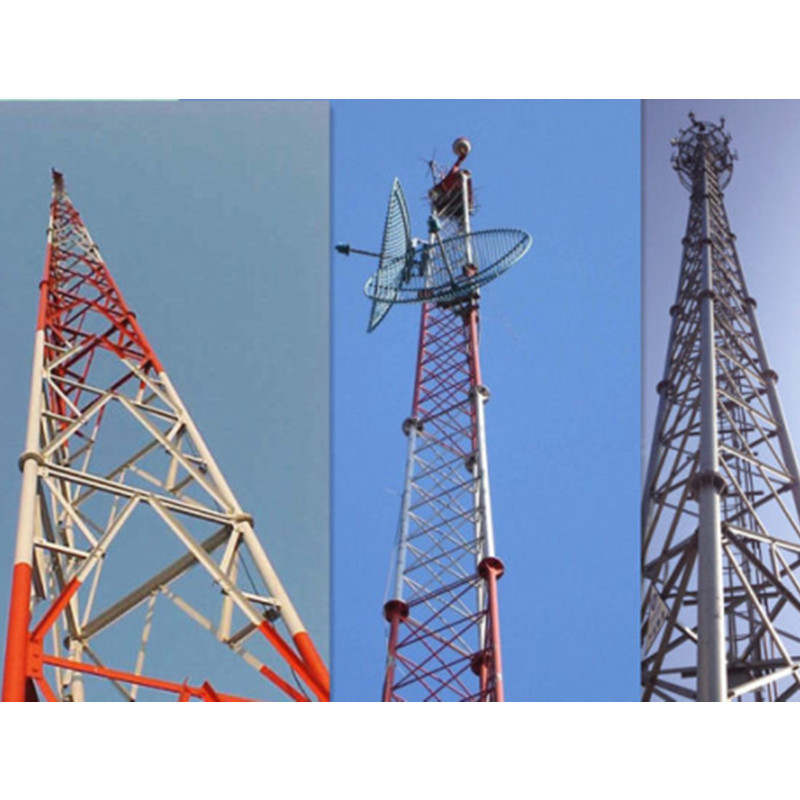

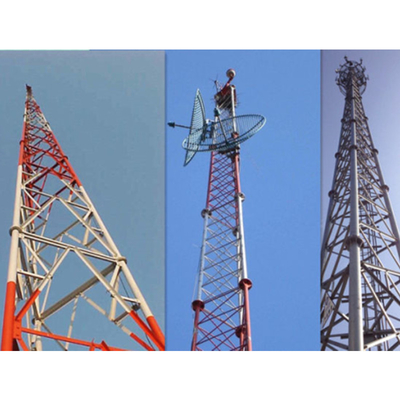

Communication Angle Steel Telecom Tower with Antenna Mounts





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Features:


1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting

3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower

4. Height: Below 100 meter, customized.

5. Wind Pressure: 0.35-1 KN/m2

6. Connection: Flanges, Inserting, Connecting Plate & Bolt

7. Surface Treatment: Hot Dipped Galvanized

8. Zinc Coating: 65μ-85μ

9. Supply Capacity: 1500 MT/Month

10. Color: Galvanized, or customized

11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.

12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA
