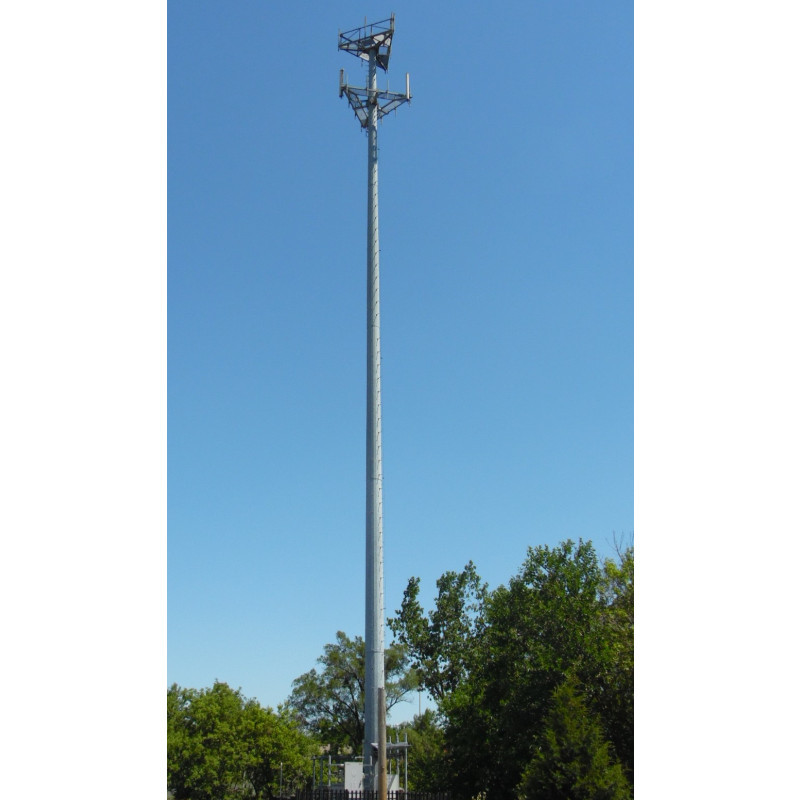

Mobile Network Cell Phone Monopole Tower Hot Dip Galvanization
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GX-1519 |
| Minimum Order Quantity | 1 set |
| Price | USD1880-19990 per set |
| Packaging Details | plastic bubble sheets |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tower Type | Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower | Material | Q235B Or Q345B |
|---|---|---|---|
| Surface Treatment | Hot-dip Galvanization | Galvanization Standard | ASTM A123/ ISO 1461 |
| Certification | ISO9001:2008 SGS COC | Steel Structure | Monopole Tower |
| Grade Of Bolts And Nuts | Grade 4.8, 6.8, 8.8 | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
| Welding Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | ||
| Highlight | Q235B Mobile Cell Phone Tower,Hot Dip Galvanization Cell Phone Tower |
||
Product Description
Mobile Network Cell Phone Tower Companies
Pole/Monopole
Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :
- Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.
- Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.
The height of Guyed Tower and Monopole are usually lower than the tower transmitter type of self-supporting tower and designed to derives the lighter load from the kind of transmitter tower self-supporting, so that these two kind of towers will not be able to derives heavy load as the antenna which have dimension and heavy large.
Specification of Single Mono Pole Pipe:
| Material | Angle steel plates, flat steel plate, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
