8m Custom Design Galvanized Steel Light Pole For Roadway Or Highway

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-218
Minimum Order Quantity 5
Price USD60-80 per piece
Packaging Details cotton fabric package
Delivery Time 20-25days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Classic Design Galvanized Steel Street Light Pole Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Height 5-15m
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Or 2 Or Customized To Request
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. Color Grey/Green/Blue/Red/White
High Light

8m Highway Steel Lighting Pole

,

8m Galvanized Steel Roadway Light Pole

,

Custom Solar Led Street Light Pole

Leave a Message
Product Description

High Quality Galvanized Steel Street Light Pole, Lamp Post, Lighting Column or Tower made in China



We're professional manufacturer of all kinds of street light poles from Guangzhou, China with more than 10 years of experience. The street light poles are generally made from high quality structural low carbon steel (typically called mild steel) plates in swaged  tapered conical or octagonal tubes, the sizes can be customized according to the project designs and specifications



The roadway or highway Street Light Pole is finished with hot dip galvanization and powder Coating process as the key process to ensure the anti-corrosion of the lamp pole. The powder coating finish is applicable to durable color and high weather resistance.



Applications of Light poles



Roadways, highways, streets, gardens, yards, squares etc.





Specifications

Descriptions Galvanized steel roadway light pole, highway lighting tower, solar LED street light pole, garden yard lamp post
Material Low carbon weldable structural steel, swaged mild steel plates
Grade GB Q235, Q345, BS4360, ASTM A36 or A572 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Tapered Conical, straight round/cylindrical, square or rectangular, polygonal shape etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens, yards etc.



Our Product Range



1, Mobile Telecommunication lattice towers and Masts

2, Power transmission towers and poles

3, Celluar antenna poles

4, Artificial trees and fiberglass cover camouflaged antenna towers

5, Roadway, highway street light poles

6, High mast utility, sports field and stadium lighting towers and columns

7, Traffic signs, signal lights, CCTV surveillance cameras cantilevers and gantry frames

8, Other steel structures.



8m Custom Design Galvanized Steel Light Pole For Roadway Or Highway 0

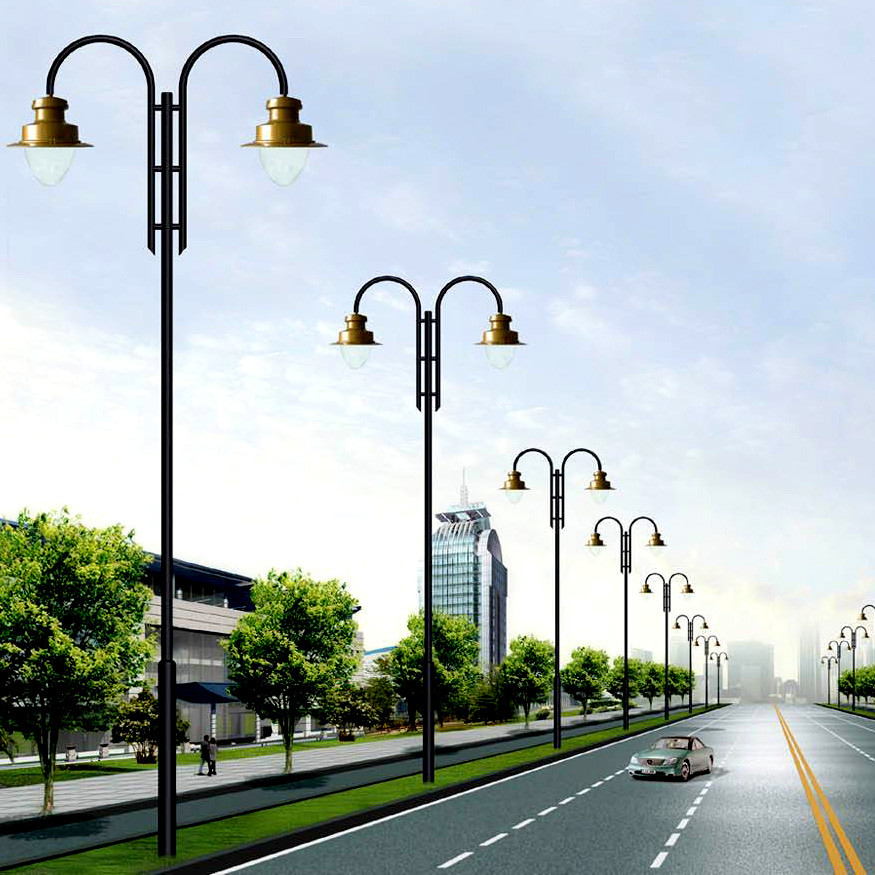

                             Roadway, highway street light pole with classical design



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.



The steel lighting poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.




Erection methods of Street Light Poles


1. Directly buried or planted into ground or earth
8m Custom Design Galvanized Steel Light Pole For Roadway Or Highway 18m Custom Design Galvanized Steel Light Pole For Roadway Or Highway 2


2, Mounted by bolts with concrete foundation
8m Custom Design Galvanized Steel Light Pole For Roadway Or Highway 38m Custom Design Galvanized Steel Light Pole For Roadway Or Highway 4



FAQ
1, Where is your factory?
Our factory is located in Huadu District of Guangzhou City, about 35km away from Baiyun Airport.

2, What can you supply?
We're professional manufacturer of steel frames for civil infrastructures and frameworks, especially telecommunications towers, power grid towers, street light poles, portal gantry frames for traffic lights, guideboards, CCTV cameras, LED display screens, advertising billboards, factory plants etc. We can produce the steel works according to your designs and drawings.

3, How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.

4, What's your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers' designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We're also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers' expectations.

5, Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and
requirements.

6, What's your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and
full payment before shipping by T/T, or L/C issued before production.

7, Can you guarantee the quality?
Yes.

8, Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.

Our actory is a Hi-Tech and ISO approved company with more than 12 years of manufacturing experience
