Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers

  • Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers
  • Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number RTT-027
Minimum Order Quantity 1 set
Price USD198-2038 per piece
Packaging Details wooden pallet and cartons
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Rooftop Tripod Tower Material Weldable Structural Steel Pipes And Plates
Surface Finish Hot Dip Galvanization Height 5m To 20m
Design Climbable Bipod Tower With Mounting Brackets Lifspan 20-50 Years
Warranty 3 Years Applications Communication Antenna Stations, TV Signal Transmission
High Light

Q235 Rooftop Antenna Tower

,

ISO9001 Rooftop Antenna Tower

,

Q235 Microcell Towers
Leave a Message
Product Description

Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers



Galvanized Steel Bipod Rooftop Mast 3G/4G/5G Microcell Telecom Antenna Tower

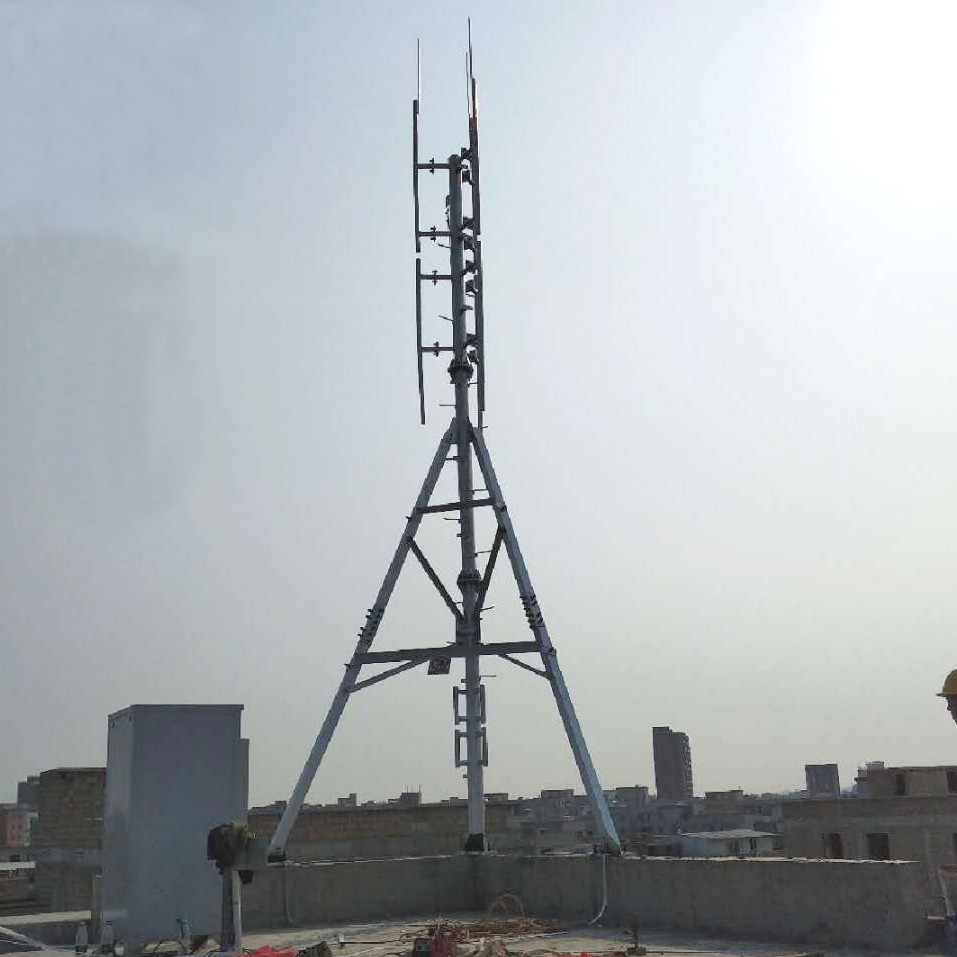

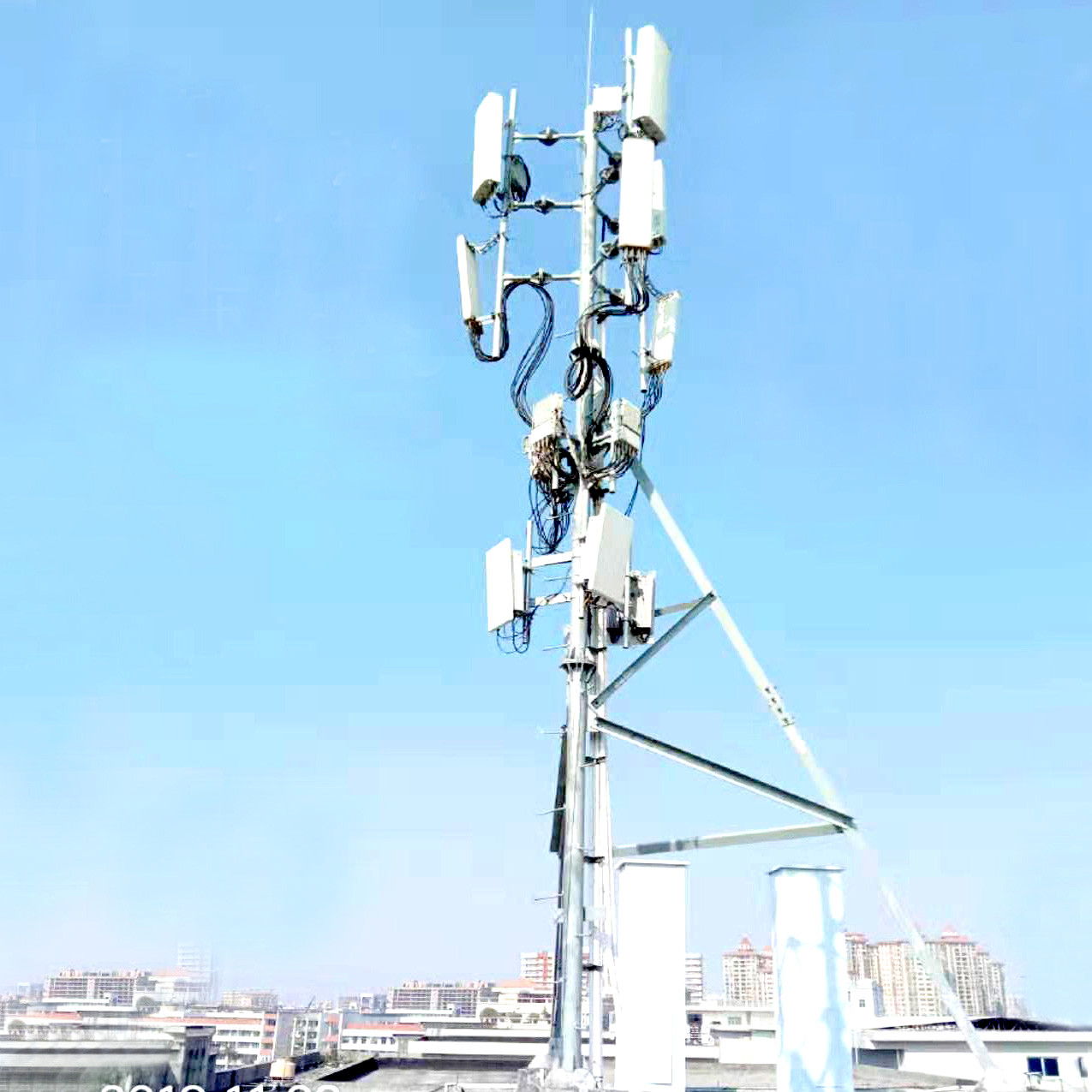

Rooftop Antenna Tower : a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower.



Specifications



Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs bipod, tripod self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.



Similar Galvanized Steel Telecommunication Towers



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.

            30m High Mast 3 legs tubular Galvanized Steel Lattice Antenna Tower with 2 platforms



Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers 0

                        25m High 4 legs Self-supporting Angular Steel Communication Tower



Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers 1

                 35m High Conical/tapered Communication Monopole Tower with 2 Platforms



Hot Dip Galvanized Rooftop Antenna Tower Q235 Microcell Towers 2

                          30m Articifial Palm Tree Camouflaged Communication Tower
