5m 20m Galvanized Steel Rooftop Telecom Tower Hot Dip Galvanised

  • 5m 20m Galvanized Steel Rooftop Telecom Tower Hot Dip Galvanised
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number RTT-021
Minimum Order Quantity 1 set
Price USD198-2038 per piece
Packaging Details wooden pallet and cartons
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Rooftop Telecom Tower Material Weldable Structural Steel Pipes And Plates
Surface Finish Hot Dip Galvanization Height 5m To 20m
Design Climbable Bipod Tower With Mounting Brackets Lifspan 20-50 Years
Warranty 3 Years Delivery Time 20-30 Days
Applications Communication Antenna Stations, TV Signal Transmission
High Light

20m rooftop cell tower

,

20m rooftop telecom tower

,

rooftop telecom tower
Leave a Message
Product Description

5m 20m Galvanized Steel Rooftop Telecom Tower Hot Dip Galvanised



5m to 20m Galvanized Steel Bipod Rooftop Communication Tower





Easy Constructed Self-supporting Rooftop Steel Tower for Mounting 5G Microcell  Signal Transmission Stations

Bipod, Tripod or Lattice Rooftop Steel Tower

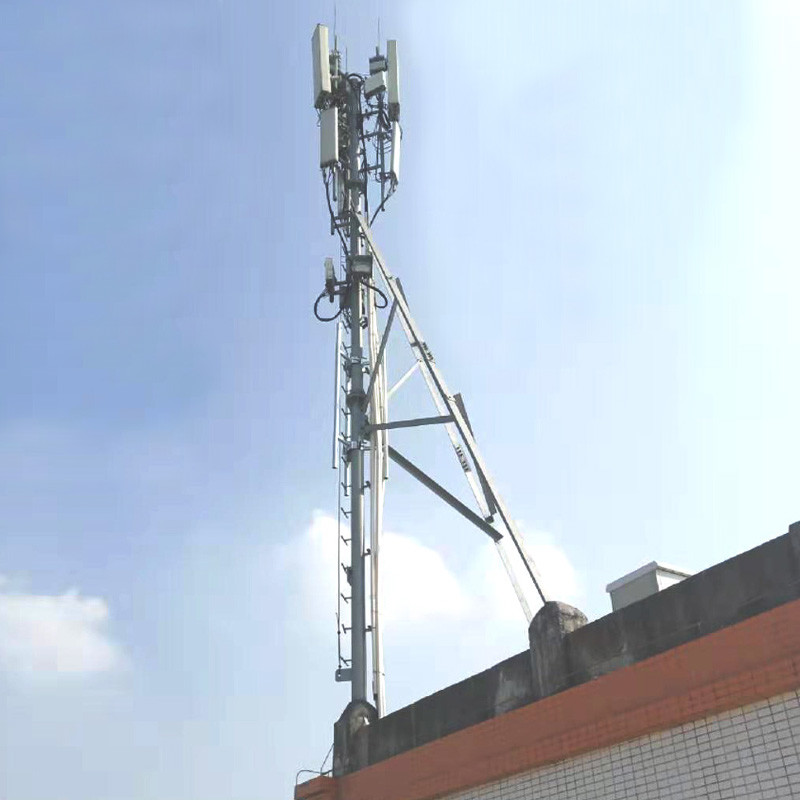

The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.





Specifications



Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.



How long can you deliver?

15-35 days after confirming shop drawings, depending on order quantity.

What’s your advantages comparing with other suppliers?

We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.

Can I customize the towers, poles or frameworks?

Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

What’s your payment terms?

T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.

Can you guarantee the quality?

Yes.

Where are you shipping?

We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.
