PVDF Coated Galvanised Street Light Pole Double Arms Brackets 45m

Place of Origin Guangzhou, China
Certification ISO9001
Model Number SLP-031
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pce monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Double Arms Galvanized Steel Light Pole Material Weldable Structural Carbon Steel
Grade Q235B, Q235B Or Specified Steel Available Height 3m To 45m
Shape Straight Round, Conical, Polygonal, Rectangular Etc. Surface Finish PVDF Coating
Color White, Silver, Grey Or Specified Colors Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

PVDF Galvanised Street Light Pole


45m Galvanised Street Light Pole


PVDF Outdoor Street Light Pole

Leave a Message
Product Description

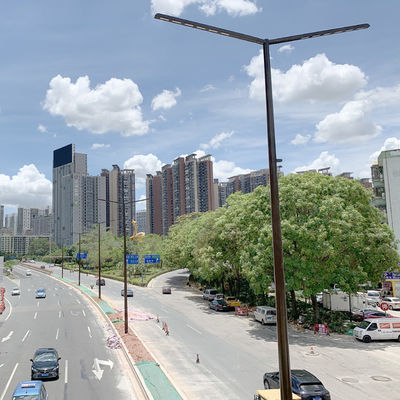

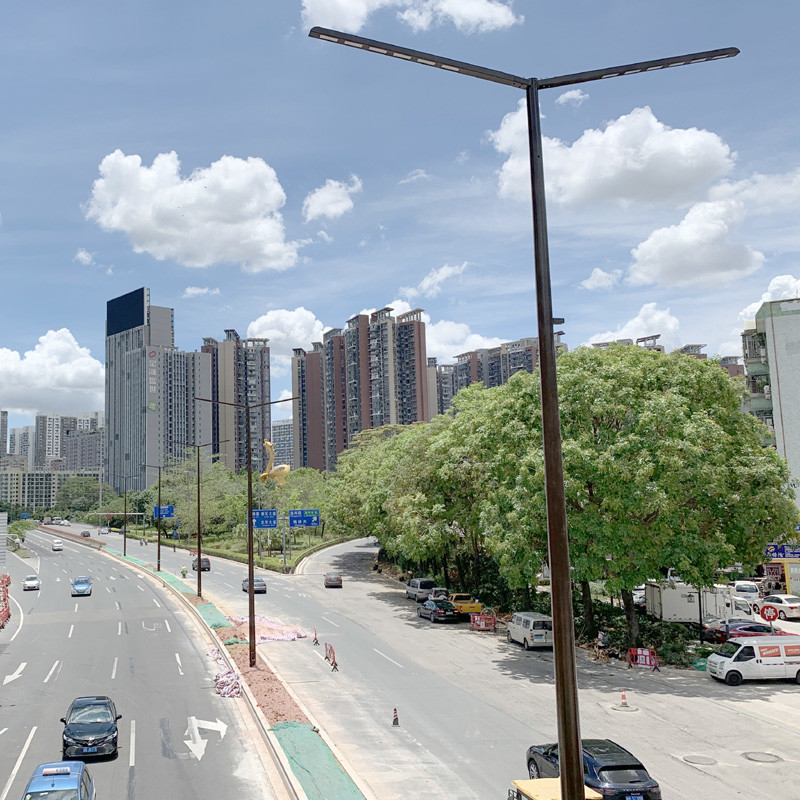

PVDF Coated Galvanised Street Light Pole Double Arms Brackets 45m


PVDF Coated Galvanized Steel Roadway Street Light Pole With Double Arms Or Brackets



Galvanized steel light with color powder or PVDF coating and special designs for city roadway or highway Lighting and landscape decoration

As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, advertising signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of steel poles and towers to meet your aesthetic and functional demands.



Our Products range:


All kinds of steel utilities roadway light poles, highway lighting poles, street light poles, stadium lighting column and garden light poles

A variety of galvanized steel lattice towers for communication or power transmission and distribution

10m-60m high mast steel poles for lighting, landscaping, communication antenna and power transmission or distribution

Custom design Glavanized steel pole and gantry for traffic or advertising signage billboard or LED display

Building steel iron structures etc.


Outdoor Street Light Pole Specifications


Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc.  Outdoor Street Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


                                Configuration of Galvanized Steel Solar Light Pole


PVDF Coated Galvanised Street Light Pole Double Arms Brackets 45m 0


Conical roadway light pole Directly buried installation        Fixed by bolts and nuts with foundation


The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Traffic guideboard pole and gantry


PVDF Coated Galvanised Street Light Pole Double Arms Brackets 45m 1

Signage/Advertising Billboard or LED display pole or gantry

High mast stadium light pole. Landscape Tower with Lighting and/or Communication Microcell Antenna

Artificial Tree Camouflaged Telecommunication Antenna Tower made from galvanized steel pipes and fiber plastic.
