Hot Dip Galvanized Steel Light Pole 45m Street Light Poles PVDF Coating
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | SLP-021 |
| Minimum Order Quantity | 10pcs |
| Price | USD198-2038 per piece |
| Packaging Details | Plastic Bubble sheets and pearl wool sheets |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 5000pce monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dual Arms Galvanized Steel Street Light Pole | Grade | Q235B Or Specified Steel |
|---|---|---|---|
| Available Height | 3m To 45m | Shape | Straight Round, Conical, Polygonal, Rectangular Etc. |
| Wind Speed | 50-260m/s | Surface Finish | PVDF Coating |
| Color | White, Silver, Grey Or Specified Colors | ||
| High Light | PVDF Galvanized Steel Light Pole,45m Galvanized Steel Light Pole,PVDF Street Light Poles |
||
Product Description

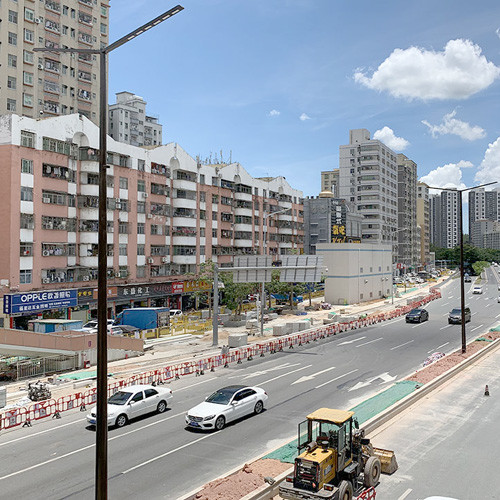

Hot Dip Galvanized Steel Light Pole 45m Street Light Poles PVDF Coating
Dual Arms Galvanized Steel Lamp Post or Light Pole for Street Roadway Lighting
Galvanized Steel Light Pole with Color Powder Coating for Traffic control and Street or roadway lighting
Color Powder or PVDF coated Street or roadway Light Pole with custom designs of main shaft and arms/mounting brackets and electrical cabinet
As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.
| Descriptions | Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Galvanized Steel Light Pole |
| HS Code | 7308900000 |
| Material | Low carbon weldable structural steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 35m or other specified height |
| Thickness | 4mm to 15mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple straight or curved arms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
Conical roadway light pole Directly buried installation Fixed by bolts and nuts with foundation
The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.
Applicable Examples of Steel Poles
Street Lighting Pole
Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)
High power LED lamp with light sensor control
Built-in loudspeaker and network system for APP online remote control
Weather and environment management system
Traffic signal control system
CCTV camera monitor system
LED screen for information and advertising display
Intercom alarm and alert communication system
High quality customized design steel light pole for support and mount.
Traffic signal light pole and CCTV monitor camera pole
Traffic guideboard pole and gantry
Signage/Advertising Billboard or LED display pole or gantry
High mast stadium light pole. Landscape Tower with Lighting and/or Communication Microcell Antenna
Artificial Tree Camouflaged Telecommunication Antenna Tower made from galvanized steel pipes and fiber plastic.
