10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole

  • 10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole
  • 10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number STLP-002
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pce monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Street Lighting Pole Material Weldable Structural Carbon Steel
Grade Q235B, Q235B Or Specified Steel Available Height 3m To 45m
Shape Straight Round, Conical, Polygonal, Rectangular Etc. Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating
Color White, Silver, Grey Or Specified Colors Lifespan 20-50 Years
Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

10m LED Lamp Post

,

10m Street Lighting Pole

,

Q235 Street Lighting Pole
Leave a Message
Product Description

10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole



10m Dual Arms Roadway LED Lamp Post Street Lighting Pole



10m Custom Design Galvanized Steel Roadway Lamp Post or Column with dual arms

Color Powder or PVDF coated Street Light Pole with custom designs of main shaft and arms/mounting bracket

The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.




Specifications



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. LED Lamp Post
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine

We control the quality according to the flow of ISO9001. Quality is controlled at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.

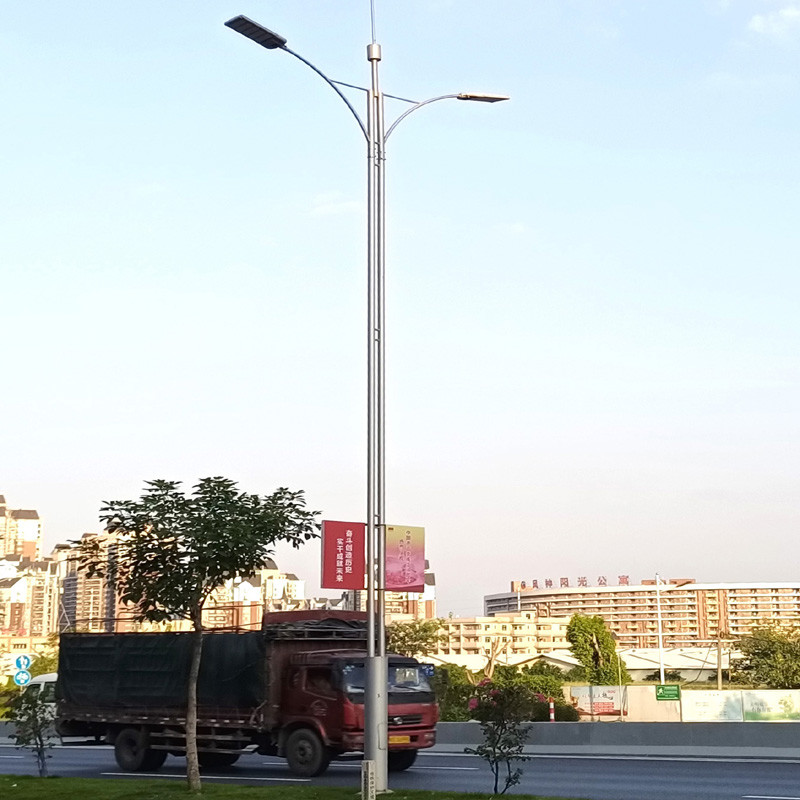

Roadway/highway lighting pole



10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole 0

Traffic signal light pole and CCTV monitor camera pole



10m Dual Arms LED Lamp Post Q235 Galvanized Steel Street Lighting Pole 1

Traffic guideboard pole and gantry

Signage/Advertising Billboard or LED display pole or gantry

Landscape Tower with Lighting and/or Communication Microcell Antenna, high mast stadium light pole

Artificial Tree Camouflaged Telecommunication Antenna Tower made from galvanized steel pipes and fiber plastic.
