Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting

  • Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting
  • Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting
  • Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SSL-005
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details plastic bubble sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Double Arm Street Light Pole Type Self-supporting Monople
Height 5m To 50m Shape Conical, Straight Round, Square, Polygonal Etc.
Surface Finish Hot Dip Galvanized And Powder Or PVDF Coating Arms And Brackets Single, Dual, Triple Or Multiple Arms Or Tray
Applications Lighting, Smart City Monitor, Traffic Signal Control, Advertising Etc.
High Light

50m Galvanised Street Light Pole

,

ISO9001 Galvanised Street Light Pole

,

50m Double Arm Street Light Pole
Leave a Message
Product Description

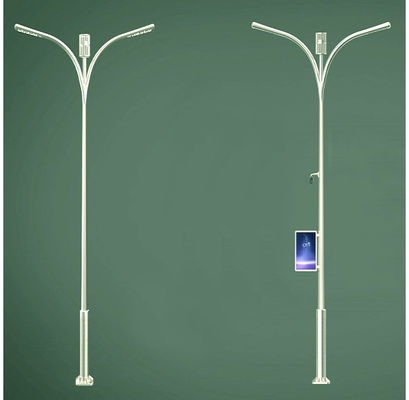

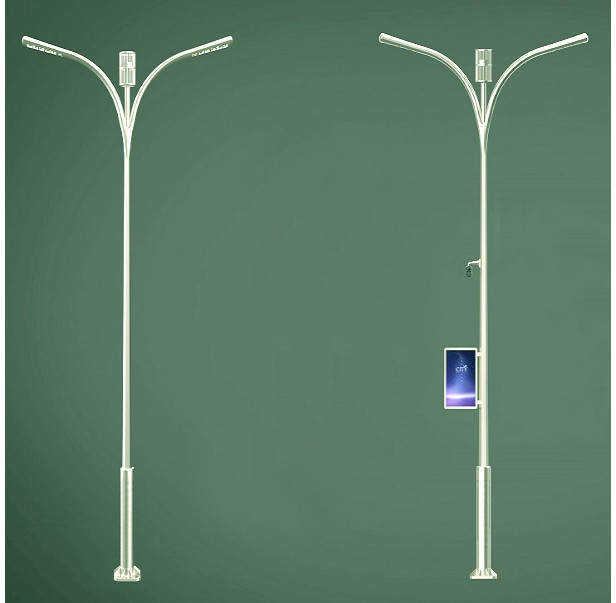

Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting



Roadway And Highway Street Light Pole With 1 Or Mutiple Arms And Brackets



Galvanised Street Light Pole Coating process spraying plastic is the key process to ensure the anti-corrosion of the lamp pole. The plastic powder adopts outdoor professional powder to ensure the lamp pole's long-term luster as new.



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

All-in-1 Smart Lighting Pole includes:



LED lamps

CCTV camera

LED display

Intercom Alarm

WIFI Hotspot or antenna

Weather radio

USB sockets

etc.



High Mast ligting pole is generally 20m-35m high made of several sections by sleeve joint, the lamps are generally 200-400W LED luminairs. Very popular for outdoor large sqaures, highways or convention centers.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.





Typical installation way of steel poles, especially for the high mast lighting or communication poles

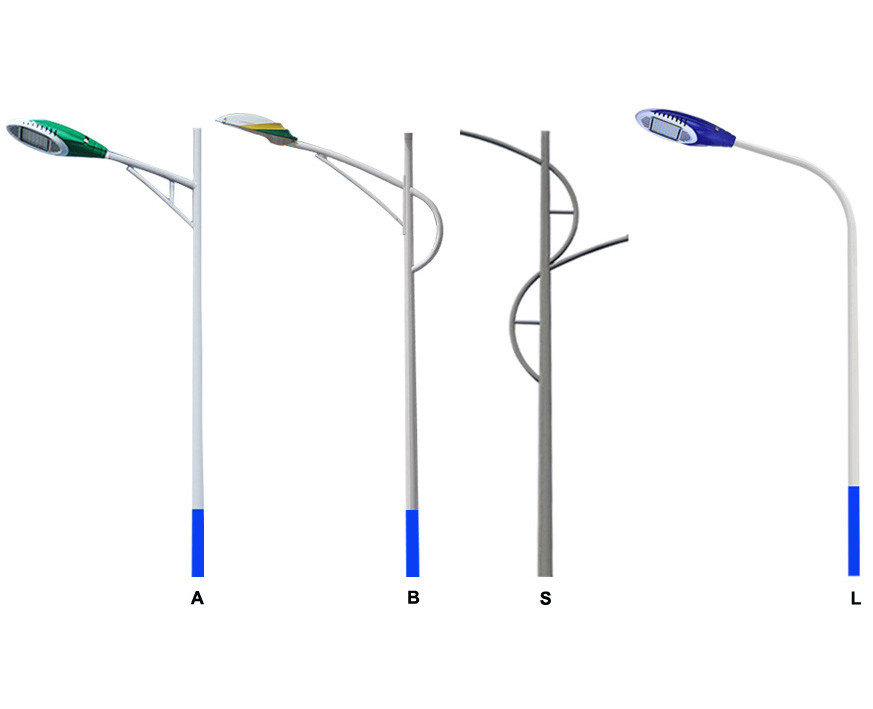

The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting 0

                                                                                  Directly buried light post



Applicable Examples of Steel Poles

Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting 1

Street Lighting Pole



Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting 2

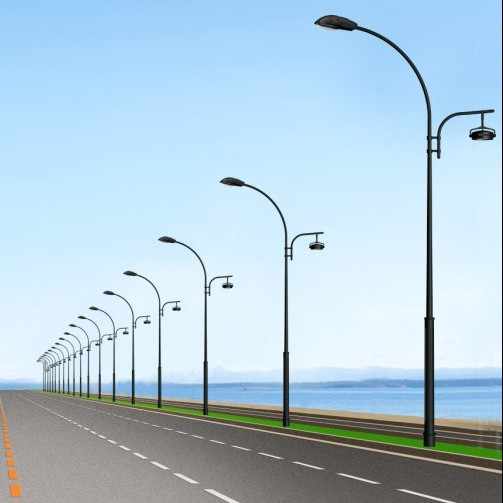

Roadway/highway lighting pole

Traffic signal light pole



Roadway Highway Galvanised Street Light Pole Double Arm 50m Self Supporting 3

Traffic CCTV monitor camera pole
