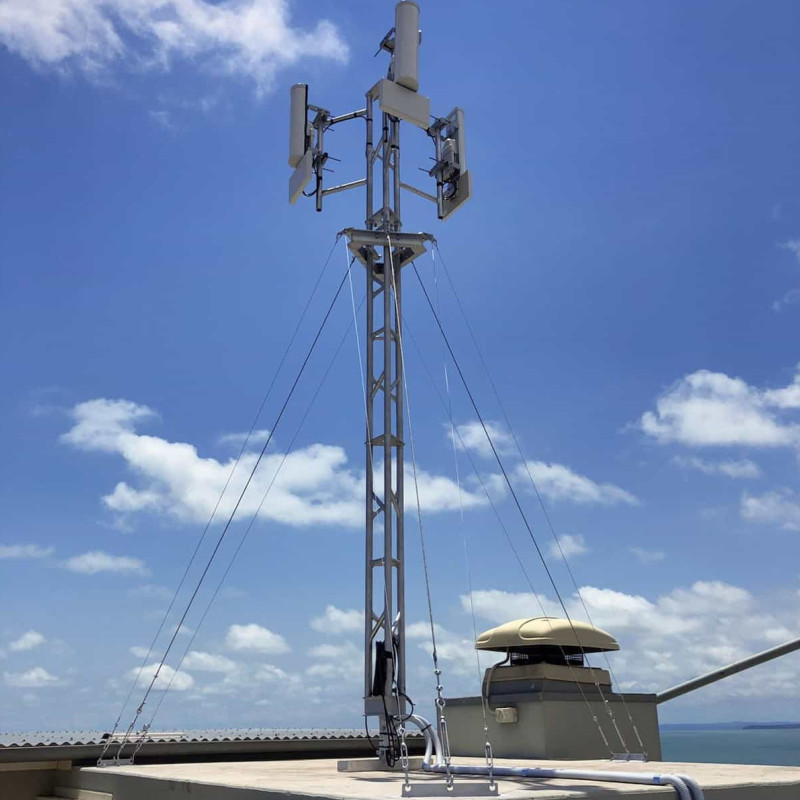

Galvanized Steel Roof Top Tower 15m GSM MW Signal Transmission

  • Galvanized Steel Roof Top Tower 15m GSM MW Signal Transmission
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5610G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Galvanized Steel Roof Top Tower 15m GSM MW Signal Transmission
Surface Treatment Hot-dip Galvanized Height 20-110M
Material Angle Steel Plates, Flat Steel Plate, Bolts And Nuts Design Wind Speed Up To 250 Km/h
Design Loading As Per Requirement And Specification By Clients Worldwide. Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc Design Of Pole Against Earthquake Of 8 Grade
High Light

Galvanized Steel Roof Top Tower

,

15m GSM Roof Top Tower
Leave a Message
Product Description

Galvanized Steel Roof Top Tower 15m GSM MW Signal Transmission





Specification of roof top tower:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Freestanding roof top towers or truss towers are generally larger at the bottom than the top but require a smaller footprint than a guyed structure.Very tall, slim and the cheapest to construct but rely completely on guy wires to provide stability. Commonly used for TV broadcast antenna’s. A Partially Guyed tower is a free-standing tower with an additional guyed mast added to the top. Read more about guyed lattice towers.



The advantage of cable tower communication tower is that it has a small amount of steel, but it has a large area, and the maintenance workload is large in the future. Whether the economy should be considered comprehensively; the tower is vulnerable to damage by external forces; once the cable is damaged or soil erosion occurs at the anchor Loss of function of the anchor is caused by tower collapse: The steel Lattice tower is subject to wind force and it is prone to swing and horizontal twisting. The base station adopting microwave transmission is used with caution.



The sole management communication steel Lattice tower : The tube tower is a practical and novel iron tower. It has a beautiful exterior appearance, a small footprint, and a high cost performance. It is adopted by a large number of construction units.
